4814 R (554C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Fixed Cradle Assembly Parts Diagram

Walk-Behind Mower

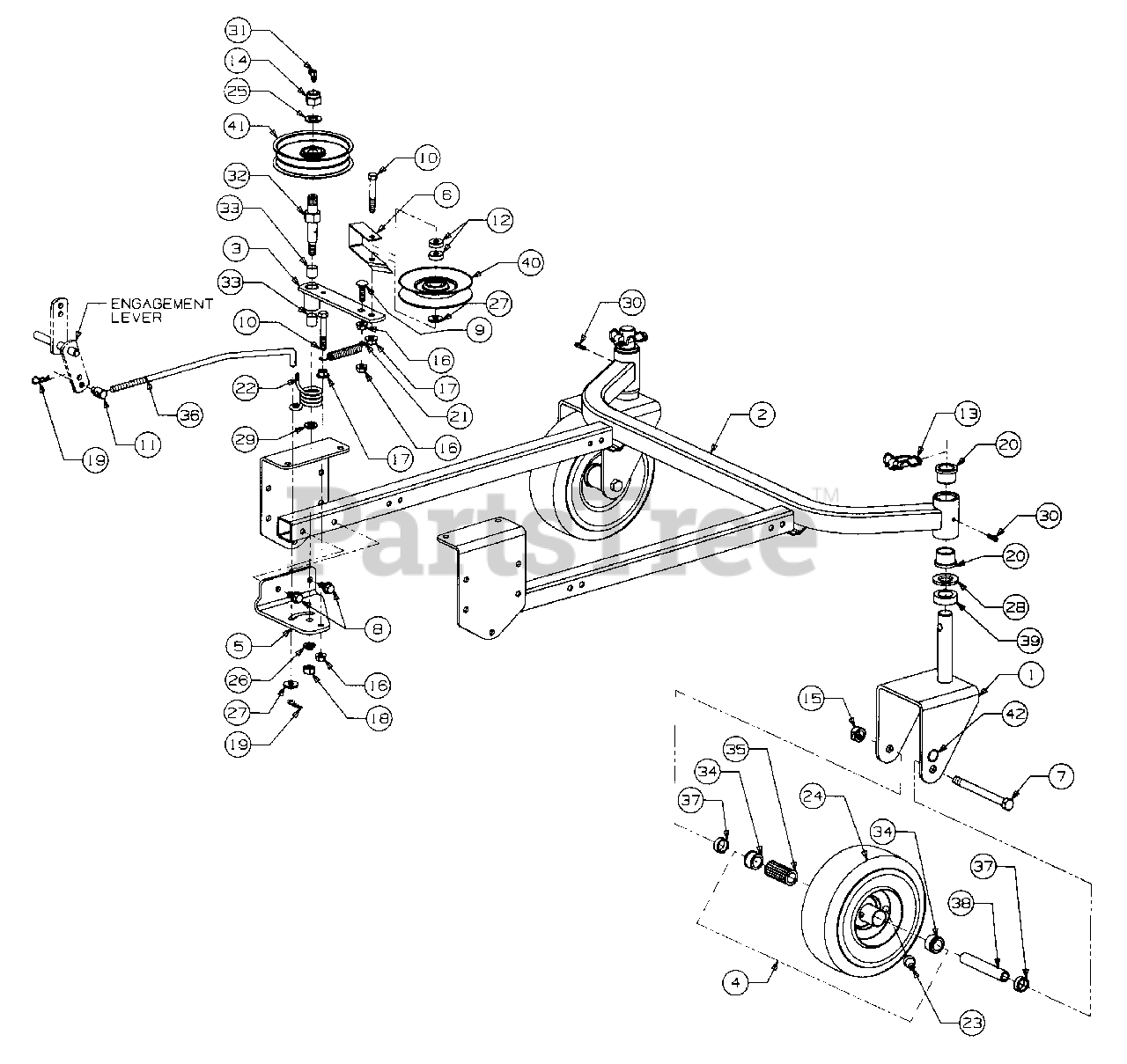

Fixed Cradle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0142

Cradle Assy, Fixed

$

$

Not available

3

Cub Cadet 603-0209

Arm Assy, Idler [lncludes Ref No. 33 (Qty 2)]

$

$

Not available

4

Cub Cadet 759-3729

Wheel Assy, Caster
(Superseded to 634-3026)

$238.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2491

Bracket, Manual PTO Idler

$

$

Not available

6

Cub Cadet 703-2578

Guide, Belt

$

$

Not available

7

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 X 5.50 Lg

$10.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0623

Screw, Hex Wash Sf Tap, 3/8-16 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 X 2.50 Lg GR5

$6.99

$

In Stock, Qty 17

0

11

Cub Cadet 711-3397

Ferrule, 3/8-24 X .37 Dia

$

$

Not available

12

Cub Cadet 711-0242

Spacer, .380 X 1.00 X .32

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 711-3345

Pin, Klik

$

$

Not available

14

Cub Cadet 712-0221

Nut, Hex Nylon Insert Lock, 5/8-1 8

$

$

Not available

15

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 714-0145

Hairpin

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

21

Cub Cadet 732-0470A

Spring, Extension
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

22

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

23

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 734-3098

Tire, Smooth, 9.0 X 3.50 X 4

$

$

Not available

25

Cub Cadet 736-0156

Washer, Flat, .635 X 1.120 X .093 Thk

$4.49

$

In Stock, Qty 12

0

26

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

27

Cub Cadet 736-0267

Washer, Special, .385X .87 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 14

0

29

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

30

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

31

Cub Cadet 737-3004

Fitting, Lube, 90ø 1/4-28 Tapper Thd

$11.99

$

In Stock, Qty 6

0

32

Cub Cadet 738-3140

Bolt, Idler Mtg Shoulder

$

$

Not available

33

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 741-3060

Bearing, Graf Oil Flange

$

$

Not available

35

Cub Cadet 741-3061

Bearing, Roller
(Superseded to 941-3061)

$

$

Not available

36

Cub Cadet 747-3230

Rod, PTO Engagement

$

$

Not available

37

Cub Cadet 750-0456

Spacer, .790 ID X .347 Lg

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-3080

Spacer, Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-3118

Spacer, 1.015 X 1.62 X .50 Lg

$

$

Not available

40

Cub Cadet 756-3045

Pulley, V-ldler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 5

0

41

Cub Cadet 756-3077

Pulley, Flat Idler, 5"

$

$

Not available

42

Cub Cadet 777-8680

Label, Inflation

$

$

Currently unavailable
