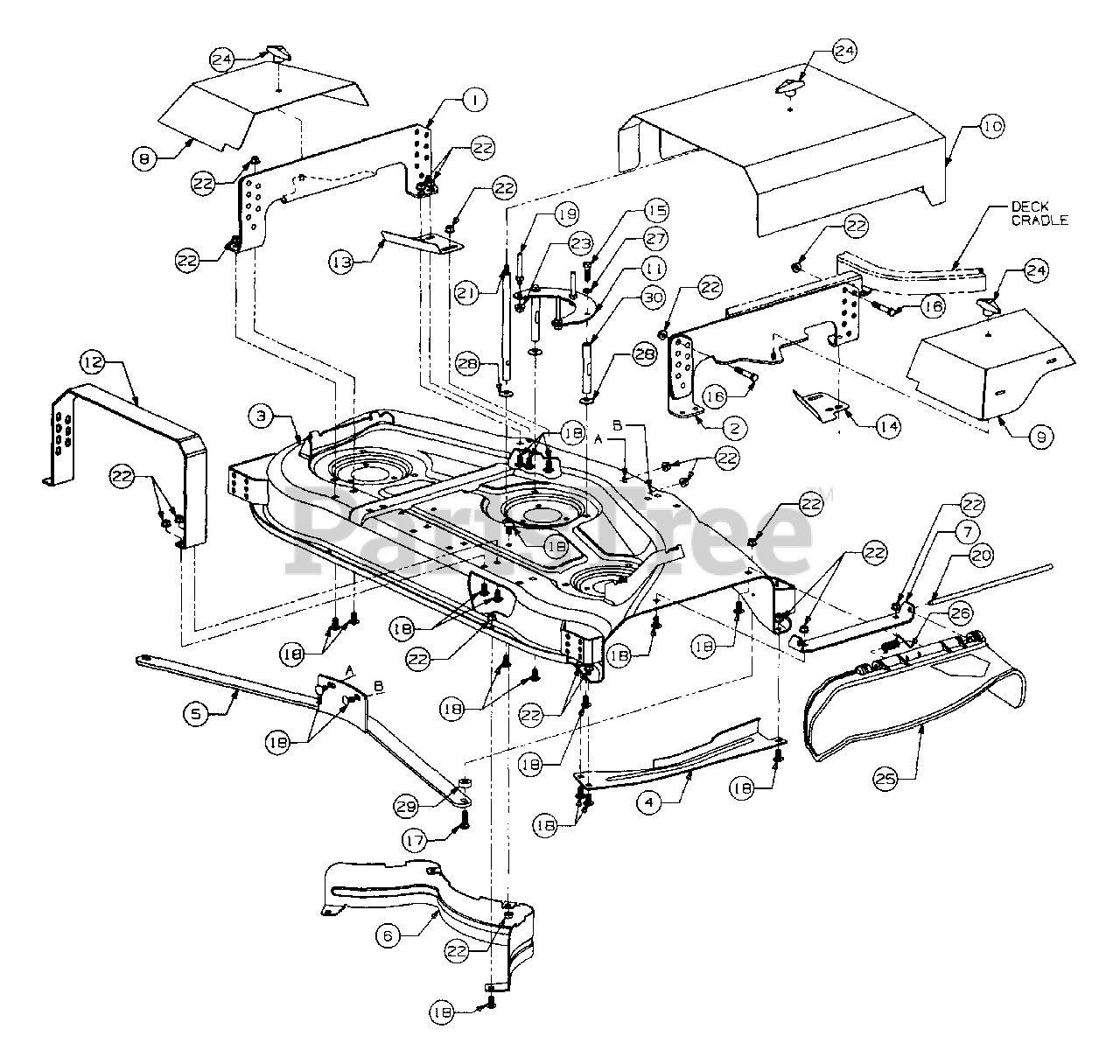

4814 R (554C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) 48" Fixed Deck Main Assembly Parts Diagram

Walk-Behind Mower

48" Fixed Deck Main Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0137

Hanger, LH Outer

Variations

Cub Cadet 603-0137-0498

OUTER HANGER (LH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 603-0140

Hanger, RH Outer

$

$

Not available

3

Cub Cadet 759-3720

Housing Assyw/Graphics, 48" Mower

$

$

Currently unavailable

Cub Cadet 777-1584

Graphic, Danger Cut Finger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777-9361

Graphic, Danger

$

$

Currently unavailable

4

Cub Cadet 603-0150

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 603-0150-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$69.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0150-0648

Finger Guard, Black - TECH GRAY (0648)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

5

Cub Cadet 603-0154

Bar, 48" Front

Variations

Cub Cadet 603-0154-0498

Bar-48" Fr - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0154-0637

BAR-48 FRO - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0154-0648

Bar-48" Fr - TECH GRAY (0648)

$

$

Not available

$

$

6

Cub Cadet 703-2161

Baffle, Rear Inner
(Superseded to 703-2161-0637)

Variations

Cub Cadet 703-2161-0498

Inner Rear Baffle - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2161-0637

Inner Rear Baffle - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2161-0648

Inner Rear Baffle - TECH GRAY (0648)

$

$

Not available

Cub Cadet 703-2161-0716

Inner Rear Baffle - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 703-2392

Bracket, Chute Mtg
(Superseded to 631-04070C)

Variations

Cub Cadet 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 3 left!

0

Cub Cadet 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, only 3 left!

0

Cub Cadet 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, only 3 left!

0

$122.99

$

In Stock, only 3 left!

0

8

Cub Cadet 703-2419

Cover, LH Belt

Variations

Cub Cadet 703-2419-0498

COVER (LH) BELT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

Cub Cadet 703-2420

Cover, RH Belt

Variations

Cub Cadet 703-2420-0498

COVER (RH) BELT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

10

Cub Cadet 703-2445

Cover, Center Belt

Variations

Cub Cadet 703-2445-0498

COVER-CENTER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-1944

Graphic 481 4R, Belt Cover Left

$

$

Not available

Cub Cadet 777-1586

Graphic, Belt Cover Front

$

$

Not available

Cub Cadet 777-1943

Graphic 481 4R, Belt Cover Right

$

$

Not available

11

Cub Cadet 703-2497

Plate, Belt Guide Mtg

$

$

Not available

12

Cub Cadet 703-2560

Bracket, Belt Cover Support

$

$

Not available

13

Cub Cadet 703-2565

Plate, LH Filler

$

$

Not available

14

Cub Cadet 703-2566

Plate, RH Filler

$

$

Currently unavailable

15

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 19

0

17

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 5

0

18

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 711-0640

Stud, 3/8-16 X 2.68 Lg

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-3318

Pin, Hinge, .375 X 12.55 Lg

$

$

Not available

21

Cub Cadet 711-3394

Post, Belt CoverSupport

$

$

Not available

22

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 720-0241

Knob, Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

25

Cub Cadet 731-3131

Deflector, Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

26

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

27

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0331

Washer, Bell, 3/8 X 1.125 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 750-3119

Spacer, Front Bar

$11.99

$

In Stock, only 4 left!

0

30

Cub Cadet 750-3140

Post, Belt Guide Mtg

$

$

Not available
