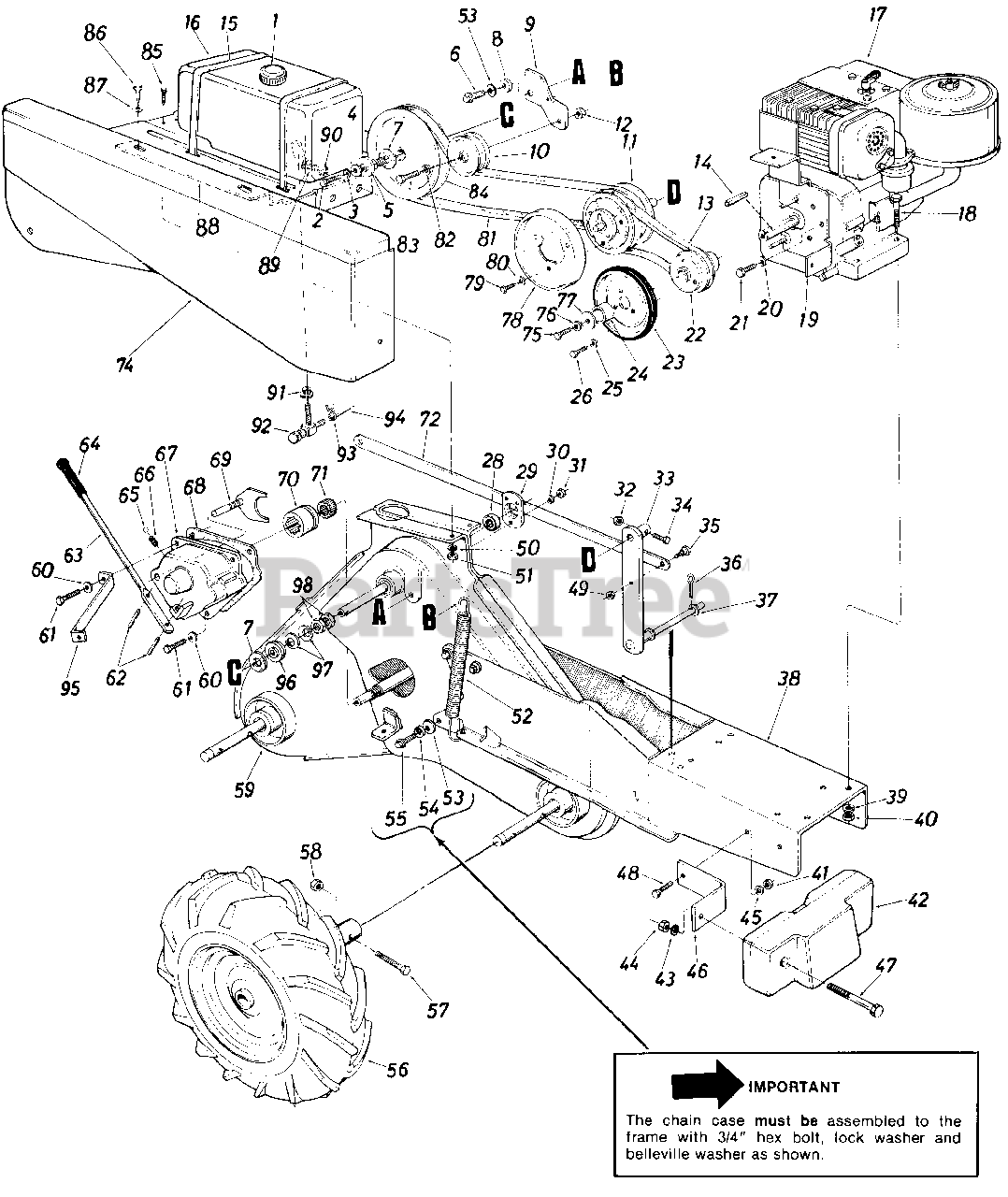

481-4091 (215-412-054) - Coast to Coast Tiller (1985) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 723-0365

Gas Cap

$

$

Not available

2

MTD 710-0876

Hex L-Bolt 5/16-24 x 1.5" Lg.

$

$

Not available

3

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD 736-0231

Fl-Wash. 5/16" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

5

MTD 15727

Friction Disc Ass'y.

$

$

Not available

6

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

7

MTD 761-0189

Friction Pad

$

$

Not available

8

MTD 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

9

MTD 14740

Idler Bracket

$

$

Currently unavailable

10

MTD 756-0225

Fl-Idler 2.75" Dia.

$

$

Not available

11

MTD 717-0343

Variable Speed Ass'y.

$

$

Currently unavailable

12

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

13

MTD 754-0220

"V"-Belt 5/8" x 27.0" Lg.
(Superseded to 954-0220)

$

$

Not available

14

MTD 714-0118

Sq. Key 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

15

MTD 726-0153

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

16

MTD 751-0225

Gas Tank

$

$

Not available

17

Eng i ne

$

$

Not available

18

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 11

0

19

MTD 14826

Belt Cover Support Ass'y.

$

$

Currently unavailable

20

MTD 736-0114

Internal L-Wash. 1/2" I.D.

$

$

Not available

21

MTD 710-0121

Hex Bolt 1/2-20 x .75" Lg.

$

$

Not available

22

MTD 756-0296

Engine Pulley Ass'y.

$

$

Not available

23

MTD 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 11

0

24

MTD 750-0381

Spacer

$

$

Currently unavailable

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

28

MTD 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

29

MTD 05034

Bearing Housing 1-3/8" O.D.
(Superseded to 05034A)

$

$

Not available

30

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

32

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

33

MTD 04837

Variable Speed Brkt. Ass'y.

$

$

Currently unavailable

34

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

35

MTD 738-0380

Shld. Bolt 1/2" Dia. x .25" Lg.

$7.99

$

In Stock, only 1 left!

0

36

MTD 714-0115

Cotter Pin 118" Dia. x 1.0" Lg.*

$3.99

$

In Stock, only 2 left!

0

37

MTD 736-0237

Fl-Wash. .686" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 14741

Frame Ass'y.

$

$

Currently unavailable

39

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

42

MTD 723-0340

Weight

$

$

Not available

43

MTD 736-0326

Fl-Wash. .50" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

44

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

46

MTD 04860

Weight Mtg. Brkt.

$

$

Currently unavailable

47

MTD 710-0496

Hex Bolt 1/2-13 x 4.50" Lg.
(Superseded to 710-1807)

$11.99

$

In Stock, only 1 left!

0

48

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

49

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

50

MTD 736-0329

L-Wash. 1/4n I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

MTD 712-0138

Hex Cent. L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

52

MTD 732-0384

Spring Idler Bracket
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

53

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

56

MTD 734-0806

Wheel Ass'y. Comp.-R.H.

$

$

Currently unavailable

MTD 734-0807

Wheel Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Currently unavailable

57

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

58

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

59

MTD 15385

Chain Case Ass'y. Comp.

$

$

Currently unavailable

60

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

MTD 710-0601

Hex Tap Tite Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

62

MTD 715-0139

Headed Spiral Pin 3/16 x 13/16" Lg.
(Superseded to 915-0247)

$

$

Not available

63

MTD 747-0265

Engagement Lever

$

$

Currently unavailable

64

MTD 720-0143

G ri p

$

$

Not available

65

MTD 741-0862

Ball Detent.250" Dia.

$4.49

$

In Stock, Qty 20+

0

66

MTD 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

67

MTD 719-0238

Shift Housing-R.H.

$

$

Not available

MTD 719-0237

Shift Housing-L.H.

Note: (Not Shown)

$

$

Not available

68

MTD 721-0162

Gasket-Shift Housing

$

$

Not available

69

MTD 04858

Shift Yoke Ass'y.-R.H.

$

$

Not available

MTD 04859

Shift Yoke Ass'y.-L.H.

Note: (Not Shown)

$

$

Not available

70

MTD 717-0383

Clutch Dog

$

$

Not available

71

MTD 717-0382

Clutch Dog Driver

$

$

Currently unavailable

72

MTD 04841

Control Brkt.

$

$

Currently unavailable

74

MTD 15287

Shroud Belt Cover

$

$

Currently unavailable

75

MTD 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.

$4.49

$

In Stock, Qty 13

0

76

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

77

MTD 736-0319

Fl-Wash. .44 I.D. x 1.38" O.D.
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

78

MTD 04836

Friction Disc

$

$

Currently unavailable

79

MTD 710-0230

Hex Bolt 1/4-28 x .50" Lg.

$

$

Not available

80

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

MTD 754-0268

"V"-Belt 5/8" x 51" Lg.

$

$

Not available

82

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

83

MTD 710-0344

Hex Bolt 3/8" x 1.50" Lg.*

$5.99

$

In Stock, Qty 11

0

84

MTD 756-0410

Input Pulley-Chain Case

$

$

Currently unavailable

85

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

86

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

88

MTD 15290

Tank Mounting Brkt.

$

$

Not available

89

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

90

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

91

MTD 735-0149

Bushing-Gas Line
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

92

MTD 751-0171

Shut-Off Valve
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

93

MTD 723-0157

Clamp Gas Line

$

$

Not available

94

MTD 751-0173

Gas Line 14-1/2" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

95

MTD 15291

Brace

$

$

Currently unavailable

96

MTD 748-0296

Floating Disc

$

$

Not available

97

MTD 736-0352

Spring Bell-Wash.

$

$

Not available

98

MTD 712-0331

Hex Jam Nut 1.0-14

$

$

Not available
