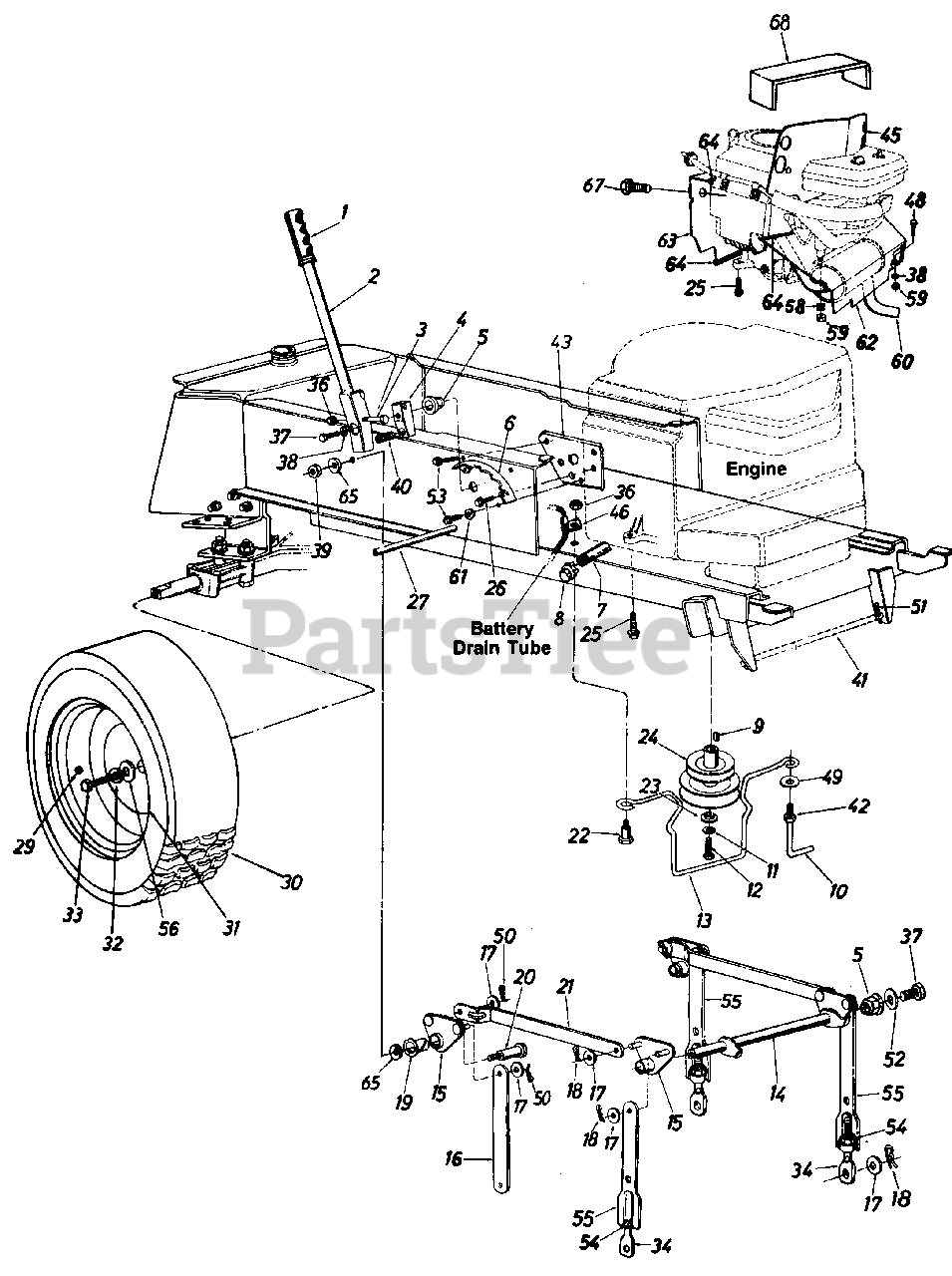

481-3523 (130-808H054) - Mastercraft Lawn Tractor (1990) Parts06 Parts Diagram

Lawn Tractor

Parts06 Parts Diagram

  • Title

1

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

MTD 14233

Lift Handle Ass'y.

$

$

Not available

MTD 17282

Lift Handle Ass'y.

Note: (808 & 809)

$

$

Not available

3

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 748-0274A

Lift Shaft Drive

$

$

Not available

5

MTD 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

MTD 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

MTD 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

MTD 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

MTD 714-0118

Sq. Key 1/4" x l.50n

$6.99

$

In Stock, only 4 left!

0

10

MTD 747-0216

Belt Guard Lock Pin

$

$

Not available

11

MTD 736-0171

L-Wash 7/16" Scr.

$4.49

$

In Stock, Qty 5

0

12

MTD 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

13

MTD 747-0320

Belt Guard

$

$

Not available

14

MTD 13889

Lift Shaft Ass'y.

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

MTD 14399

Link
(Superseded to 14399-0637)

Note: (Deck)

Variations

MTD 14399-0637

Deck Link - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

17

MTD 736-0192

Fl-Wash. 112" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 18

0

18

MTD 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

19

MTD 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

MTD 738-0445

Shld. Scr. 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

MTD 13790

Connecting Link
(Superseded to 13790-0637)

Variations

MTD 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 738-0296

Shld. Bolt .437 Dia. x .268 Lg. 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0322

Flat Wash. 44" I.D. x 1.25" O.D. x .17

$9.49

$

In Stock, Qty 7

0

24

MTD 756-0342A

Two-Step Engine Pulley

$

$

Not available

25

MTD 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0435

Running Board Rod

$

$

Not available

29

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

Rear Wheel Ass'y. Comp.

$

$

Not available

MTD 734-1679

Wheel Ass'y. Comp. (20 x 10.0)
(Superseded to 634-0177)

Variations

MTD 734-1679-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

MTD 734-1679-0912

WHEEL ASM-COMPLETE - Dico Gray (0912)

$473.99

$

Usually ships in 3-6 days

0

MTD 734-1679-0915

WHEEL ASM-COMPLETE - Duro Gray (0915)

$473.99

$

Usually ships in 3-6 days

0

MTD 734-1679-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$473.99

$

Usually ships in 3-6 days

0

MTD 734-1679-0942

WHEEL ASM-COMPLETE - Dico Yellow (0942)

$473.99

$

Usually ships in 3-6 days

0

MTD 734-1679-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$473.99

$

Usually ships in 3-6 days

0

$384.99

$

Usually ships in 3-6 days

0

MTD 734-1049

Wheel Ass'y. Comp. (22 x 7.50)

$

$

Not available

31

Rear Wheel Rim Only

$

$

Not available

MTD 734-0603A

Rim Only (20 x 10.0)
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

MTD 734-1047

RIm Only (22 x 7.50)

$

$

Not available

32

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

34

MTD 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-0266

Hex Center L-Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

40

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-0392

Deck Connecting Rod

$

$

Not available

42

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

43

MTD 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

MTD 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 14282

Heat Shield

Note: (802)

$

$

Currently unavailable

MTD 15826A

Heat Shield

Note: (803)

$

$

Currently unavailable

46

MTD 726-0175

Mounting Clamp

$

$

Not available

MTD 731-0556

Hub Cap

Note: (Not Shown)

$4.99

$

In Stock, only 4 left!

0

48

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

MTD 736-0242

Bell-Wash..39" I.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

MTD 714-0149

Int. Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

52

MTD 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

53

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

MTD 17303

Adj. Deck Link
(Superseded to 17303-0637)

Variations

MTD 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

56

MTD 736-0346

Fl-Wash. .34" I.D. x 2.0n O.D.

$

$

Not available

58

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

59

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

MTD 751-0474

Muffler

$

$

Not available

61

MTD 736-0264

Flat Wash. 344" I.D.

$6.99

$

In Stock, only 1 left!

0

62

MTD 16934

Front Heat Shield

$

$

Not available

63

MTD 16989

Rear Heat Shield

Note: (808 & 809)

$

$

Currently unavailable

64

MTD 731-0511

Trim Strip 10" Lg.

$3.99

$

Usually ships in 3-6 days

0

65

MTD 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

67

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

Note: (808 & 809)

$4.49

$

In Stock, Qty 20+

0

68

MTD 722-0138

Foam

Note: (802 & 803)

$

$

Not available
