481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Speed Selector Lever Parts Diagram

Lawn Tractor

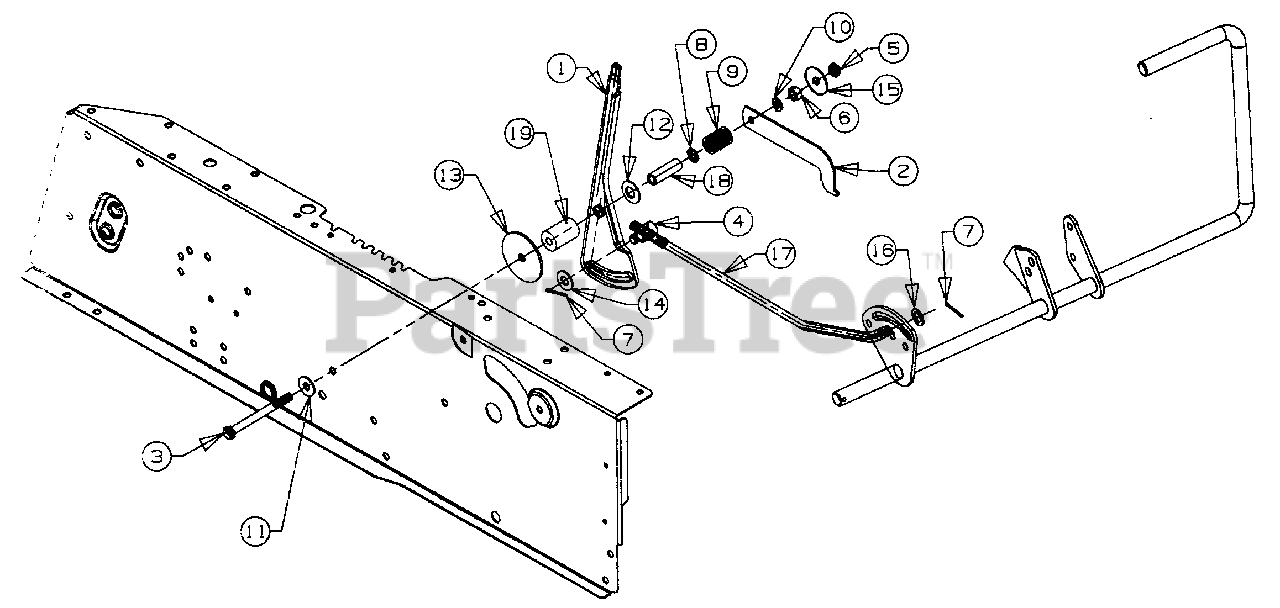

Speed Selector Lever Parts Diagram

  • Title

1

MTD 17888A

Speed Selector Lever

$

$

Not available

2

MTD 17956

Shift Lever Support

$

$

Not available

3

MTD 710-1266

Hex Bolt 5/16-18 x 3.5" Lg.

$9.99

$

Usually ships in 3-6 days

0

4

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

5

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

6

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0111

Cotter Pin 3/32" Dia. x 1"

$4.99

$

In Stock, Qty 13

0

8

MTD 726-0201

Speed Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

9

MTD 732-0645

Compression Spring
(Superseded to 932-0645)

$2.99

$

In Stock, only 4 left!

0

10

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0159

FL-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0253

Bell-Wash. .505" I.D. x 1"

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0418A

FL-Wash. .34" I.D. x 2.25"

$10.99

$

Usually ships in 3-6 days

0

14

MTD 736-0300

FL-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0362

FL-Wash. .32" I.D. x 1.25" O.D.

$4.49

$

In Stock, only 4 left!

0

16

MTD 736-3024

FL-Wash. .469" I.D. x .75"

$3.99

$

In Stock, only 1 left!

0

17

MTD 747-0787

Speed Control Rod

$

$

Not available

18

MTD 750-0662

Spacer 1.56" Lg.

$

$

Not available

19

MTD 750-0913

Spacer 1.46" Lg.

$

$

Not available
