481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Running Board/Fender Assembly Parts Diagram

Lawn Tractor

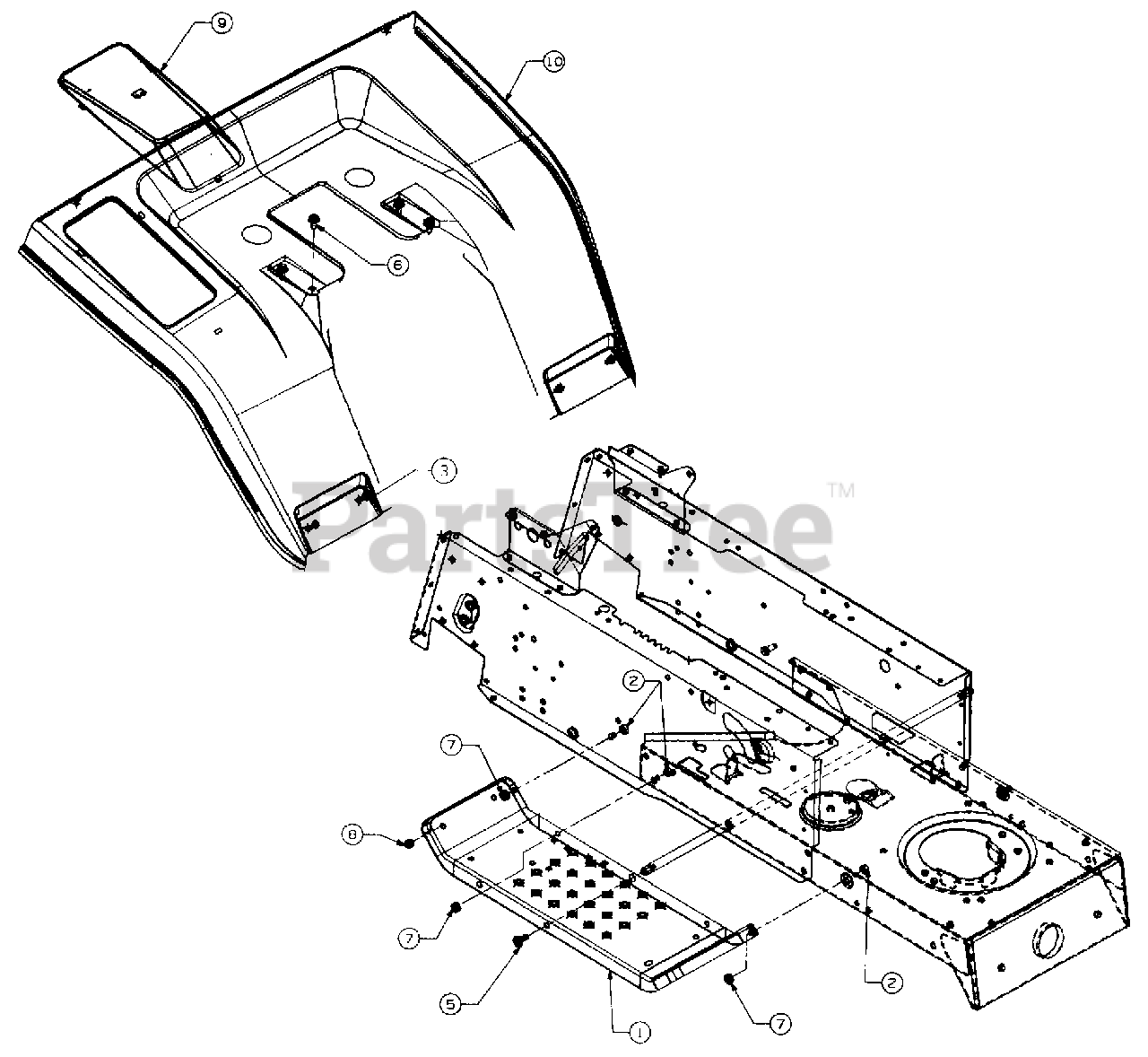

Running Board/Fender Assembly Parts Diagram

  • Title

1

MTD 17770B

Running Board
(Superseded to 17770H)

Note: New Part

Variations

MTD 17770B-0480

BOARD-RUNNING - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17770B-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17770B-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

MTD 17770B-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

MTD 17770B-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

MTD 17770B-0660

BOARD-RUNNING - TEAL (0660)

$

$

Not available

MTD 17770B-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

MTD 17770B-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

MTD 17770B-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17770B-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

MTD 17770B-0638

No Longer Available BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17770B-0648

No Longer Available BOARD-RUNNING - TECH GRAY (0648)

$

$

Not available

MTD 17770B-0650

No Longer Available BOARD-RUNN - RED METALLIC (0650)

$

$

Not available

MTD 17770B-0663

No Longer Available BOARD-RUNN - CAYMEN GREEN (0663)

$

$

Not available

MTD 17770B-0691

No Longer Available BOARD-RUNN - BLACK JACK (0691)

$

$

Not available

$

$

2

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0286

Pan Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

?4

MTD 710-0351

Recess Hd. B-Tap Scr. #10-16 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-0323

Pan Hd. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

6

MTD 710-0726

Hex AB-Tap Scr. 5/16 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

8

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-1543

Battery Cover

$

$

Not available

10

MTD 783-0227

Fender

Variations

MTD 783-0227-0638

No Longer Available FENDER-EUR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0227-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$
