481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Electrical System Parts Diagram

Lawn Tractor

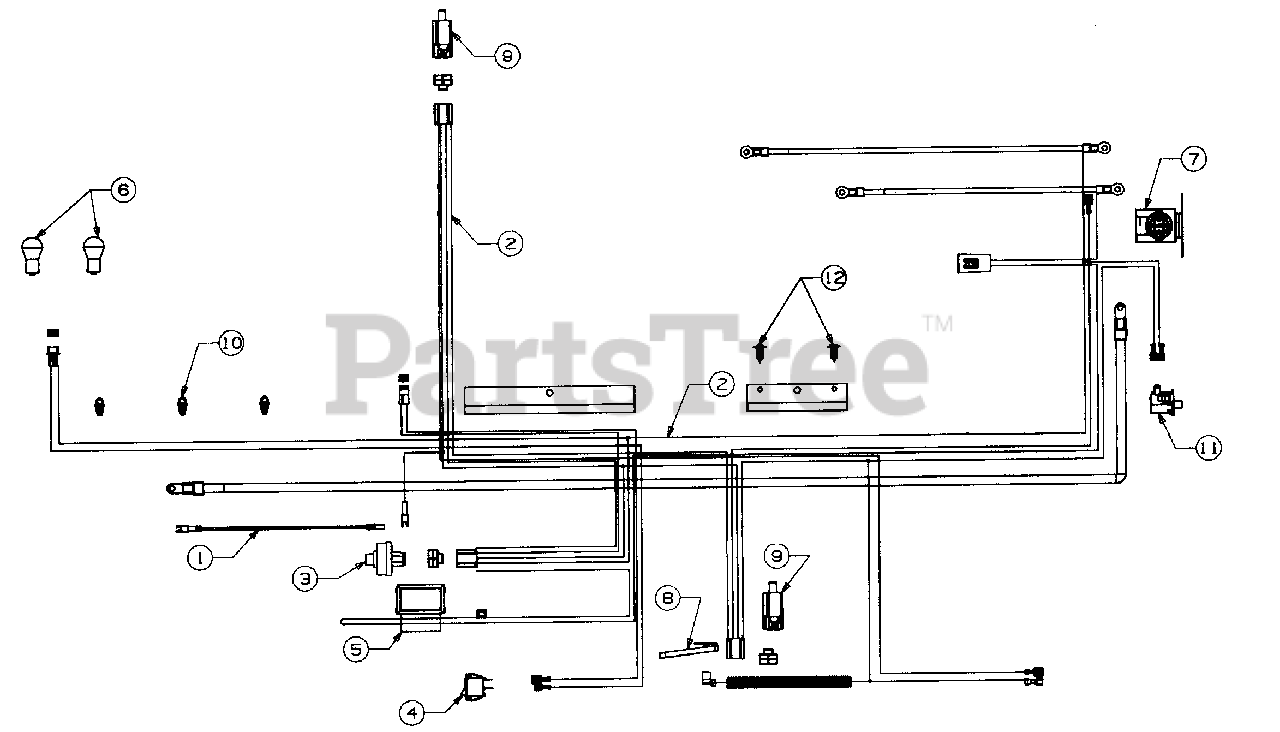

Electrical System Parts Diagram

  • Title

1

MTD 629-0207

Harness Adapter (Mag.)

$10.99

$

In Stock, only 1 left!

0

2

MTD 629-0315

Wire Harness
(Superseded to 929-0315B)

Note: New Part

$

$

Not available

3

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

7

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

8

MTD 725-1643

Spring Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

9

MTD 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

10

MTD 725-1711

Wire Retainer Clip

$

$

Not available

11

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

12

MTD 726-3046

Ratchet

$3.99

$

In Stock, Qty 6

0
