481-2368 (136G765N054) - Coast to Coast Lawn Tractor (1996) Clutch/Brake Pedal Assembly Parts Diagram

Lawn Tractor

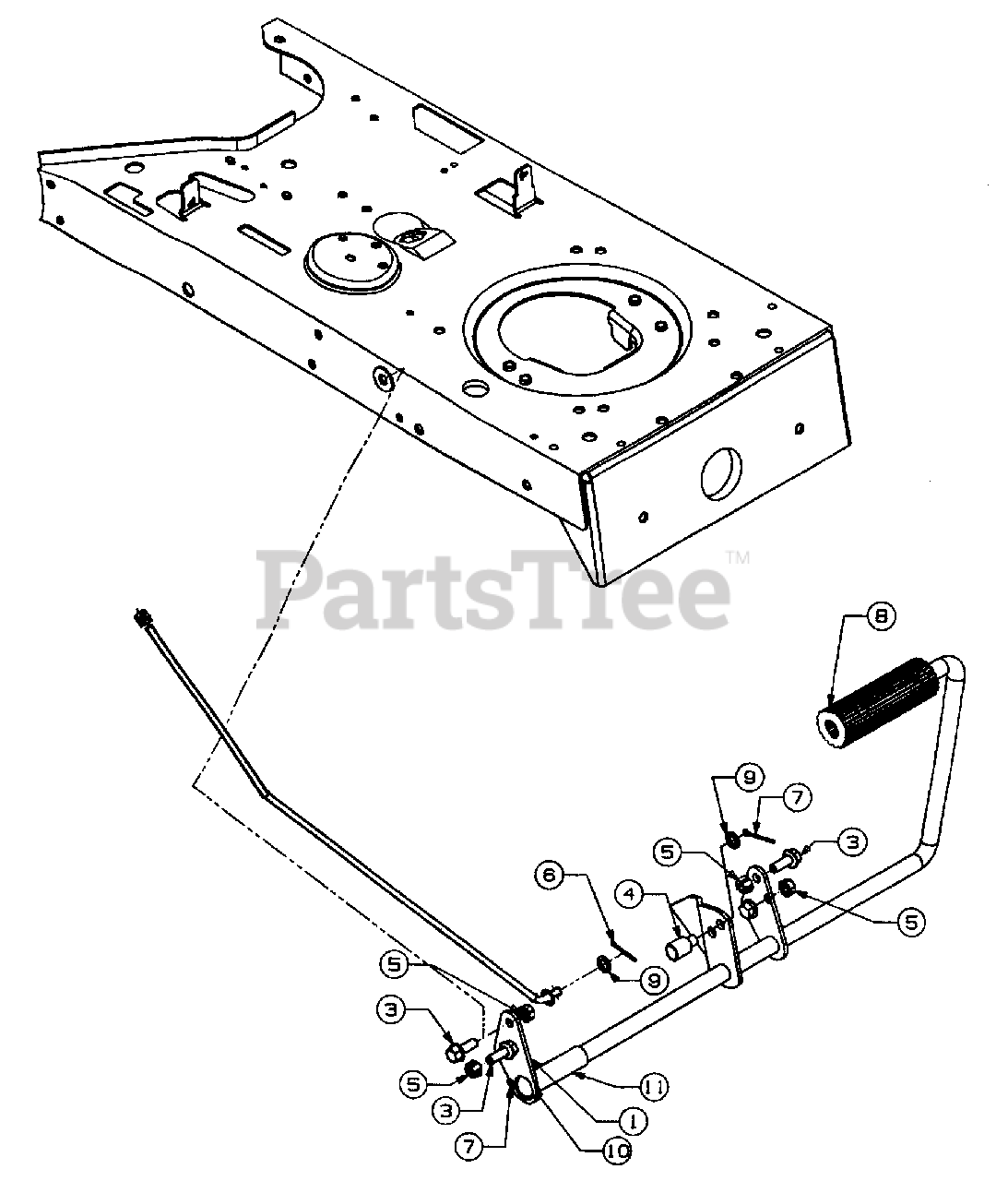

Clutch/Brake Pedal Assembly Parts Diagram

  • Title

1

MTD 17860

Pedal Mounting Brkt.
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

?2

MTD 683-0123

Clutch/Brake Pedal Ass'y.

Variations

MTD 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

MTD 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

MTD 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

3

MTD 710-0650

Hex Flange Bolt 5/16-18 x .875" Lg.

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

5

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

6

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

7

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

9

MTD 736-0140

FL-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

10

MTD 736-0256

FL-Wash. .63" I.D. x .93" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 750-0802

Spacer .64" I.D. x 2.63" Lg.

$6.99

$

Usually ships in 3-6 days

0
