479 - Shindaiwa Chainsaw (SN: 47900001 - 47999999) FIGURE A Parts Diagram

Chainsaw

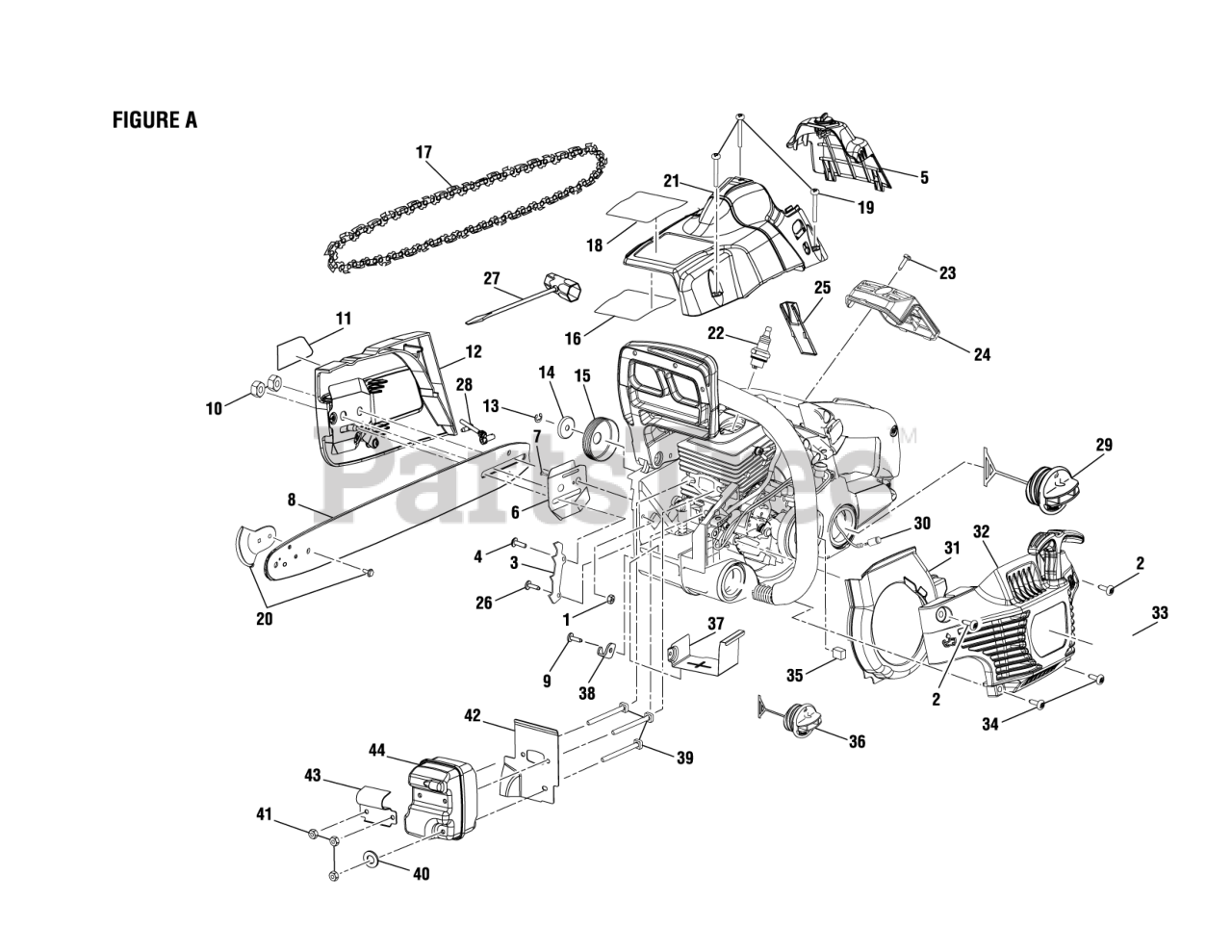

FIGURE A Parts Diagram

  • Title

1

Echo YH450000330

NUT, LOCK

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH415000500

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH470000690

SPIKE, BAR

$2.49

$

Usually ships in 2-4 days

0

4

Echo YH415000450

SCREW

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH479001140

COVER, FILTER

$3.49

$

Usually ships in 2-4 days

0

6

Echo YH479001320

PLATE, INNER GUIDE

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH415000410

SCREW

$0.99

$

Usually ships in 2-4 days

0

8

Echo S20A0CD3378

20 in. Guide Bar

$

$

Currently unavailable

9

Echo YH415000400

SCREW

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH449000000

NUT, BAR (5/16-18)

$0.99

$

Usually ships in 2-4 days

0

11

Echo YH653000560

LABEL, LOGO

$0.99

$

Usually ships in 2-4 days

0

12

Echo YH470000500

ASSY., CHAIN COVER

$13.99

$

Usually ships in 2-4 days

0

13

Echo YH452000330

E-RING

$0.99

$

Usually ships in 2-4 days

0

14

Echo YH467000350

HOSE, FUEL (RETURN)

$1.49

$

Usually ships in 2-4 days

0

15

Echo YH464000010

ASSY., SPROKET DRUM

$13.99

$

Usually ships in 2-4 days

0

16

Echo YH479001360

SHIELD, HEAT

$3.99

$

Usually ships in 2-4 days

0

17

Echo S20BPX78

Chain (.325 x 78 links, 20 in.)

$

$

Currently unavailable

18

Echo YH653000590

LABEL, WARNING

$0.99

$

Usually ships in 2-4 days

0

19

Echo YH415000540

SCREW

$0.99

$

Usually ships in 2-4 days

0

20

Echo YH466000330

KIT, SAFETY TIP & SCREW

$4.49

$

Usually ships in 2-4 days

0

21

Echo YH479001150

COVER, ENGINE

$9.49

$

Usually ships in 2-4 days

0

22

Echo YH461000210

PLUG, SPARK

$7.99

$

Usually ships in 2-4 days

0

23

Echo YH415000390

SCREW

$0.99

$

Usually ships in 2-4 days

0

24

Echo YH465000150

FILTER, AIR

$3.49

$

Usually ships in 2-4 days

0

25

Echo YH479001250

DIVIDER, CYLINDER HOUSING

$0.99

$

Usually ships in 2-4 days

0

26

Echo YH415000420

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo YH477000000

WRENCH, COMBINATION

$3.49

$

Usually ships in 2-4 days

0

28

Echo YH470000520

TENSIONER, CHAIN

$6.99

$

Usually ships in 2-4 days

0

29

Echo YH468000800

ASSY., FUEL CAP

$2.99

$

Usually ships in 2-4 days

0

30

Echo YH465000140

FILTER FUEL

$2.49

$

Usually ships in 2-4 days

0

31

Echo YH479001240

BAFFLE, FAN HOUSING

$2.49

$

Usually ships in 2-4 days

0

32

Echo YH463000150

ASSY., STARTER COVER

$36.99

$

Usually ships in 2-4 days

0

33

Echo YH653000570

LABEL, LOGO

$0.99

$

Usually ships in 2-4 days

0

34

Echo YH415000010

SCREW

$0.99

$

Usually ships in 2-4 days

0

35

Echo YH465000180

PREFILTER

$0.99

$

Usually ships in 2-4 days

0

36

Echo YH468000810

ASSY., OIL CAP

$1.99

$

Usually ships in 2-4 days

0

37

Echo YH479001350

SHIELD, HEAT

$4.99

$

Usually ships in 2-4 days

0

38

Echo YH470000680

CATCHER, CHAIN

$0.99

$

Usually ships in 2-4 days

0

39

Echo YH435000420

BOLT

$0.99

$

Usually ships in 2-4 days

0

40

Echo YH451000150

WASHER, RETAINING

$0.99

$

Usually ships in 2-4 days

0

41

Echo YH450000300

NUT, LOCK

$0.99

$

Usually ships in 2-4 days

0

42

Echo YH468001070

GASKET, MUFFLER

$4.49

$

Usually ships in 2-4 days

0

43

Echo YH468001010

DEFLECTOR, MUFFLER

$1.99

$

Usually ships in 2-4 days

0

44

Echo YH460000150

ASSY., MUFFLER

$13.99

$

Usually ships in 2-4 days

0

Echo YH459000200

KIT, GASKET & DIAPHRAGM

$64.99

$

Usually ships in 2-4 days

0

Echo YH459000220

KIT, CARBURETOR MIXTURE SCREW

$45.99

$

Usually ships in 2-4 days

0

Echo YH459000240

KIT, CARBURETOR IDLE SCREW

$15.99

$

Usually ships in 2-4 days

0

Echo YH458000590

KIT, CYLINDER W/GASKET

$53.99

$

Usually ships in 2-4 days

0

Echo YH458000600

KIT, CRANKSHAFT SEALS ASSY.

$6.99

$

Usually ships in 2-4 days

0

Echo 99922205356

Operator's Manual (961087053)

$

$

Currently unavailable
