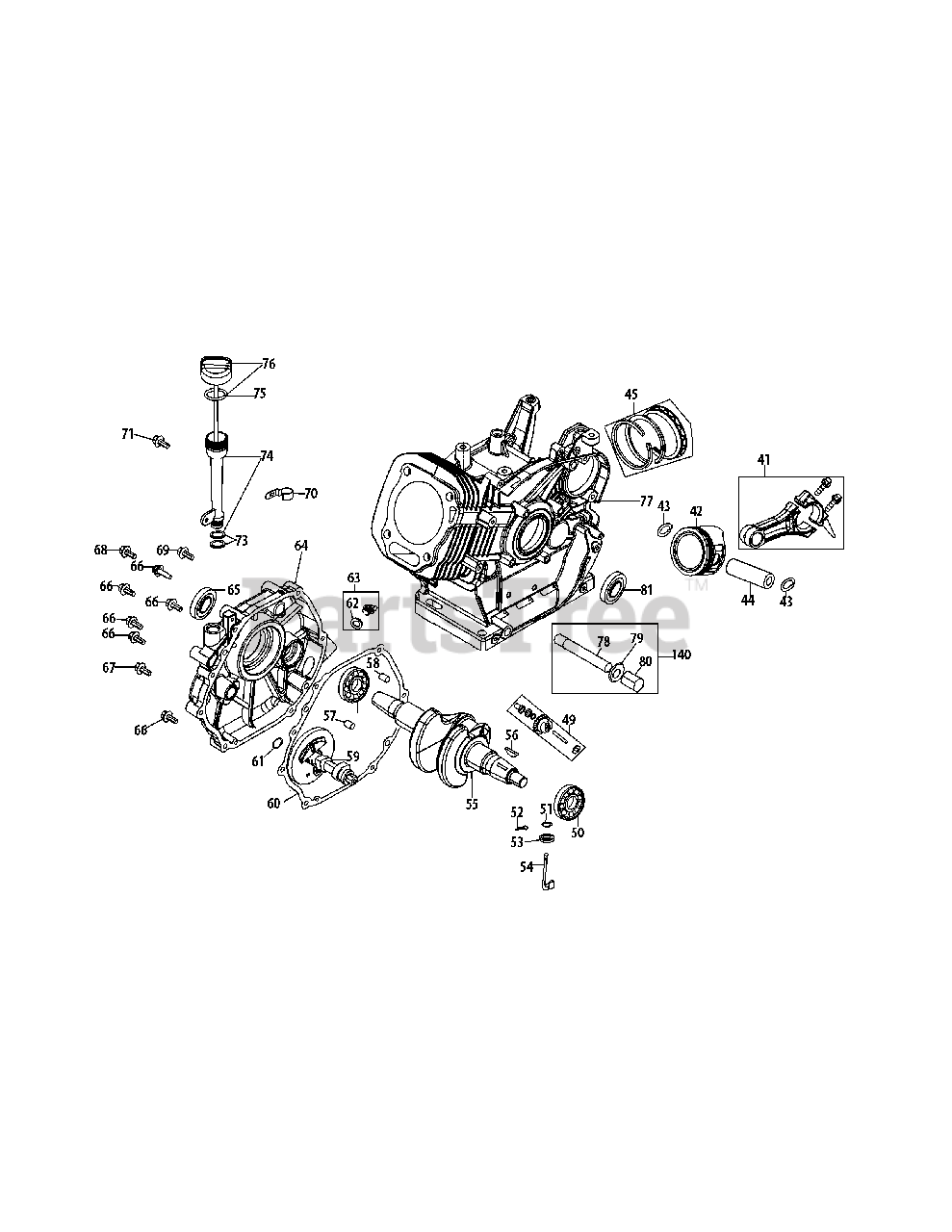

478-SUA Crankcase Parts Diagram

  • Title

41

Troy-Bilt 951-12066

Connecting Rod Assembly

$74.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 951-12043

Piston

$34.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 951-12044

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-12387

Piston Ring Set

$25.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 751-12068

Governor Gear/Shaft Assembly
(Superseded to 951-12068)

$20.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 951-12069

Radial Ball Bearing

$38.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 736-04453

Washer 8×20×0.8

$6.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-12071

Governor Arm Shaft

$6.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-12389

Crankshaft Assembly
(Superseded to 951-14201)

$229.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

57

Troy-Bilt 715-04102

Dowel Pin 9×12

$5.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 951-12072

Camshaft Assy
(Superseded to 951-12072A)

$96.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-11374

Crankcase Cover Gasket

$15.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 736-04545

Washer 16x24×0.5

$3.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-11283

Oil Filler Plug Assembly

$6.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-12395

Cover Comp, Left Crankcase

$121.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-11372

Oil Seal 30×46×8

$15.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 710-04971

Bolt M8×38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 710-04972

Bolt M8×45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 710-05052

Bolt M8×35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

70

Troy-Bilt 951-11320

Dipstick Clamp

$7.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 710-05349

Bolt M6×8

$3.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, Qty 10

0

74

Troy-Bilt 951-12073

Oil Fill Tube Assembly

$11.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 951-11904

Dipstick O-Ring

$4.49

$

In Stock, Qty 8

0

76

Troy-Bilt 951-11971A

Dipstick Assembly

$31.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-11230

Crankcase Kit

Note: (Incl.50,53,77,81)

$340.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-11350

Oil Drain Pipe Assy.

$9.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

80

Troy-Bilt 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 11

0

81

Troy-Bilt 951-11498

Oil Seal 30x46×8

$14.99

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

Troy-Bilt 951-11228

Crankcase Cover Kit

Note: Not shown (Incl.50,60,61,64-67)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11229

Crankshaft Kit

Note: Not shown (Incl.50,55,56,65,81)

$215.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11210

Gasket Kit - External

Note: Not shown (Incl.79,108,123,129-131)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11209

Gasket Kit - Complete

Note: Not shown (Incl.53,60,65,79,81,106,108,123,129-131)

$72.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11187

Short Block Assembly

Note: Not shown (Incl.41-45,49-68,77-81,102,105,106,108,110,123,129,130)

$885.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z478-SUA

Complete Engine
(Superseded to 952Z678-SUA)

Note: Not shown

$1375.99

$

Usually ships in 3-6 days

0
