476 (590-476-100) - Cub Cadet Loader att Loader Mount Without Side Frames (S/N 11099 And Below) Parts Diagram

Loader

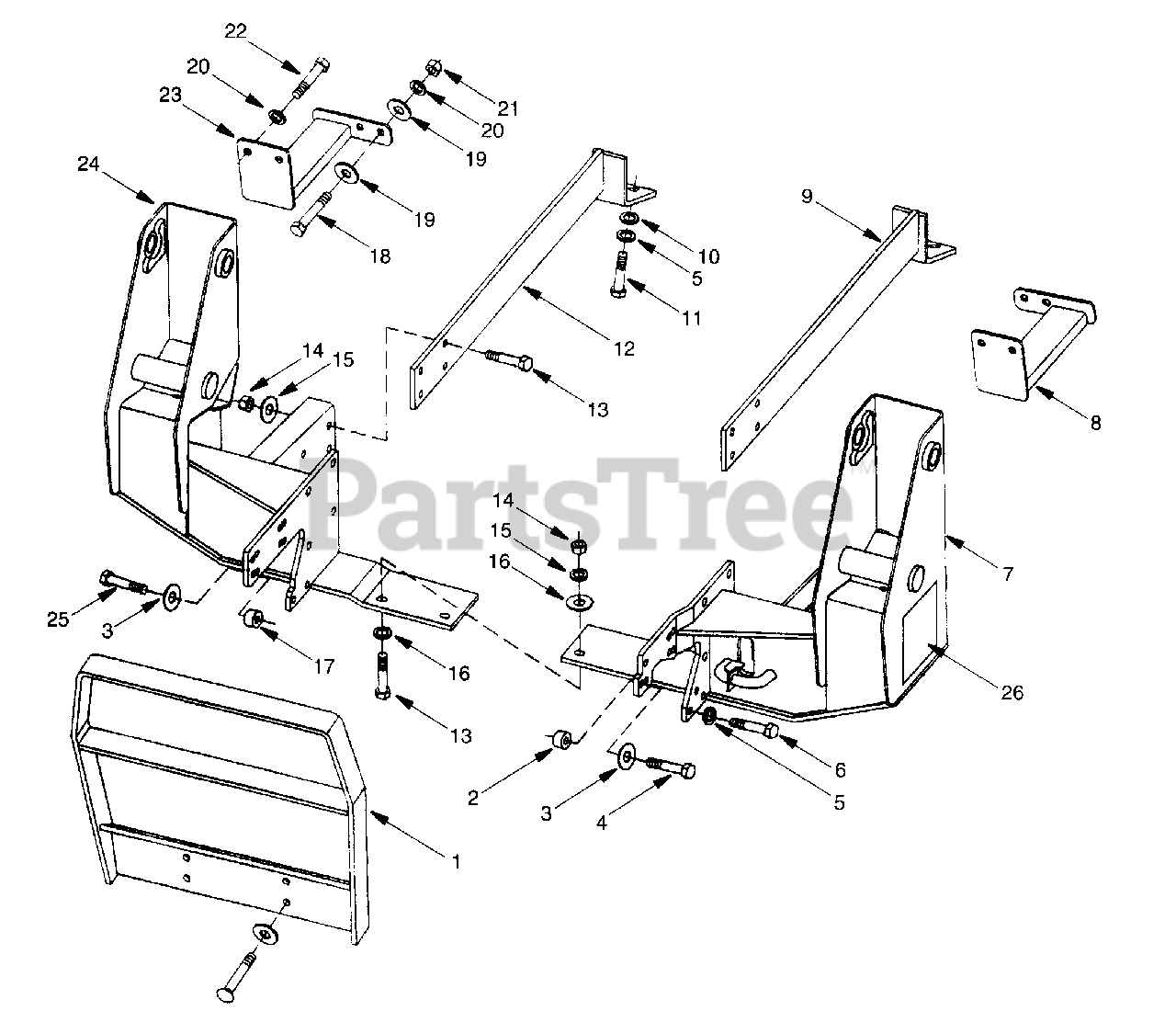

Loader Mount Without Side Frames (S/N 11099 And Below) Parts Diagram

  • Title
1

Cub Cadet WM-52450

Grille Guard
(Superseded to WM-52183)

$

$

Not available

2

Cub Cadet WM-56143

Spacer, 1.15 (Tractor Model 7300/05)
(Superseded to WM-52356)

$

$

Not available

Cub Cadet WM-56144

Spacr, 1.715 (Tractor Model 7260/65)
(Superseded to WM-52367)

$

$

Not available

3

Cub Cadet WM-52206

Disc Lock Washer, .515 x .937 x .13
(Superseded to WM-52177)

$

$

Not available

4

Cub Cadet WM-52242

Hex Hd Cap Scrw, 12mm x 1.25 x 70 (Tractor Model 7300/05)

$

$

Not available

Cub Cadet WM-52243

Hex Hd Cap Scrw, 12mm x 1.25 x 90 (Tractor Model 7260/65)

$

$

Not available

5

Cub Cadet WM-62580

Lockwasher, 9/16

$

$

Not available

6

Cub Cadet WM-307351

Hex Hd Cap Scrw, 14mm x 20 x 30

$

$

Not available

7

Cub Cadet WM-59301

Loader Mount, LH

$

$

Not available

8

$

$

Not available

9

Cub Cadet WM-52429

Rear Support, LH

$

$

Not available

10

Cub Cadet WM-57817

Flat Washer, 1/2 SAE

$

$

Not available

11

Cub Cadet WM-33125

Hex Hd Cap Scrw, M14-2.0P x 5mm

$

$

Not available

12

Cub Cadet WM-52428

Rear Support, RH

$

$

Not available

13

Cub Cadet WM-3379

Hex Hd Cap Scrw, 1/2 NC x 1.5 GR5

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet WM-1093

Plated Hex Nut, 1/2 NC
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet WM-6548

Shakeproof Lockwasher, 1/2

$

$

Not available

16

Cub Cadet WM-57816

Flat Washer, 1/2 SAE

$

$

Not available

17

Cub Cadet WM-56144

Spacr, 1.715 (Tractor Model 7260/65)
(Superseded to WM-52367)

$

$

Not available

Cub Cadet WM-58203

Spacer, 2.28 (Tractor Model 7300/05)
(Superseded to WM-52370)

$

$

Not available

18

Cub Cadet WM-839

Hex Hd Cap Scrw, 3/8 NC x 1 GR5

$

$

Not available

19

Cub Cadet WM-21757

Washer, 3/8

$

$

Not available

20

Cub Cadet WM-838

Lockwasher, 3/8

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet WM-835

Plated Hex Nut, 3/8 NC
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet WM-19446

Self Tapping Screw, Type T .38 x 1.25

$

$

Not available

23

$

$

Not available

24

Cub Cadet WM-59302

Loader Mount, RH

$

$

Not available

25

Cub Cadet WM-56142

Hex Hd Cap Scrw, 12mm x 1.25 x 100 (Tractor Model 7260/65)

$

$

Not available

Cub Cadet WM-52243

Hex Hd Cap Scrw, 12mm x 1.25 x 90 (Tractor Model 7300/05)

$

$

Not available

26

Cub Cadet WM-56059

Loader Mounting Label

$

$

Not available
