476 (590-476-100) - Cub Cadet Loader att Loader Mount With Side Frames (S/N 11100 And Above) Parts Diagram

Loader

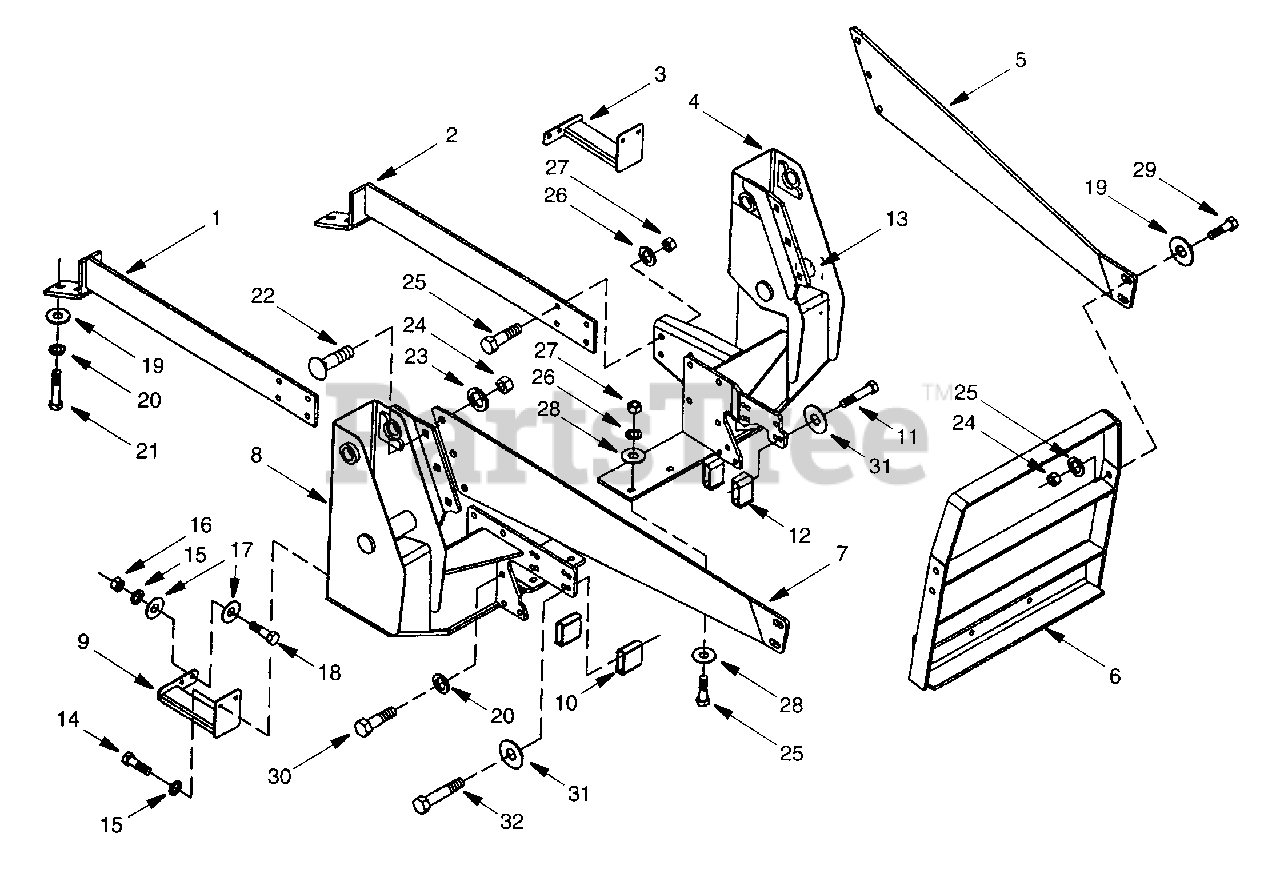

Loader Mount With Side Frames (S/N 11100 And Above) Parts Diagram

  • Title

1

Cub Cadet WM-52428

Rear Support, RH

$

$

Not available

2

Cub Cadet WM-52429

Rear Support, LH

$

$

Not available

3

Cub Cadet WM-52271

Step, LH

$

$

Not available

4

Cub Cadet WM-59301

Loader Mount, LH

$

$

Not available

5

Cub Cadet WM-52187

Side Frame, LH

$

$

Not available

6

Cub Cadet WM-52183

Front Mount

$

$

Not available

7

Cub Cadet WM-52186

Side Frame, RH

$

$

Not available

8

Cub Cadet WM-59302

Loader Mount, RH

$

$

Not available

9

Cub Cadet WM-52270

Step, RH

$

$

Not available

10

Cub Cadet WM-52367

Spacr, 1.715 (Tractor Model 7300/05)

$

$

Not available

Cub Cadet WM-52370

Spacer, 2.28 (Tractor Model 7260/65)

$

$

Not available

11

Cub Cadet WM-52243

Hex Hd Cap Scrw, 12mm x 1.25 x 90 (Tractor Model 7260/65)

$

$

Not available

Cub Cadet WM-52242

Hex Hd Cap Scrw, 12mm x 1.25 x 70 (Tractor Model 7300/05)

$

$

Not available

12

Cub Cadet WM-52367

Spacr, 1.715 (Tractor Model 7260/65)

$

$

Not available

Cub Cadet WM-52356

Spacr, 1.150 (Tractor Model 7300/05)

$

$

Not available

13

Cub Cadet WM-56059

Loader Mounting Label

$

$

Not available

14

Cub Cadet WM-19446

Self Tapping Screw, .38 x 1.25

$

$

Not available

15

Cub Cadet WM-838

Lockwasher, 3/8

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet WM-835

Plated Hex Nut, 3/8
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet WM-21757

Washer, 3/8

$

$

Not available

18

Cub Cadet WM-839

Hex Hd Cap Scrw, 3/8 NC x 1 GR 5

$

$

Not available

19

Cub Cadet WM-57817

Flat Washer, 5/8

$

$

Not available

20

Cub Cadet WM-62580

Lockwasher, 9/16

$

$

Not available

21

Cub Cadet WM-33125

Hex Hd Cap Scrw, M14-2 0 x 50 mm

$

$

Not available

22

Cub Cadet WM-301130

Carriage Bolt, 5/8 x 1.5 GR5

$

$

Not available

23

Cub Cadet WM-1286

Lockwasher, 5/8

$

$

Not available

24

Cub Cadet WM-230

Plated Hex Nut, 5/8
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet WM-3379

Hex Hd Cap Scrw, 1/2 x 1.5 GR5

$4.99

$

Usually ships in 3-6 days

0

26

Cub Cadet WM-855

Lockwasher, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet WM-1093

Plated Hex Nut, 1/2
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet WM-57816

Flat Washer, 1/2

$

$

Not available

29

Cub Cadet WM-4548

Hex Hd Cap Scrw, 5/8 x 1.75 GR5

$

$

Not available

30

Cub Cadet WM-307351

Hex Hd Cap Scrw, M14-2.0 x 30mm

$

$

Not available

31

Cub Cadet WM-52177

Washer, 488 x 1.25 x .134

$

$

Not available

32

Cub Cadet WM-56142

Hex Hd Cap Scrw, 12mm x 1.25 x 100 (Tractor Model 7260/65)

$

$

Not available

Cub Cadet WM-52243

Hex Hd Cap Scrw, 12mm x 1.25 x 90 (Tractor Model 7300/05)

$

$

Not available
