476 (590-476-100) - Cub Cadet Loader att Control Valve Kit Parts Diagram

Loader

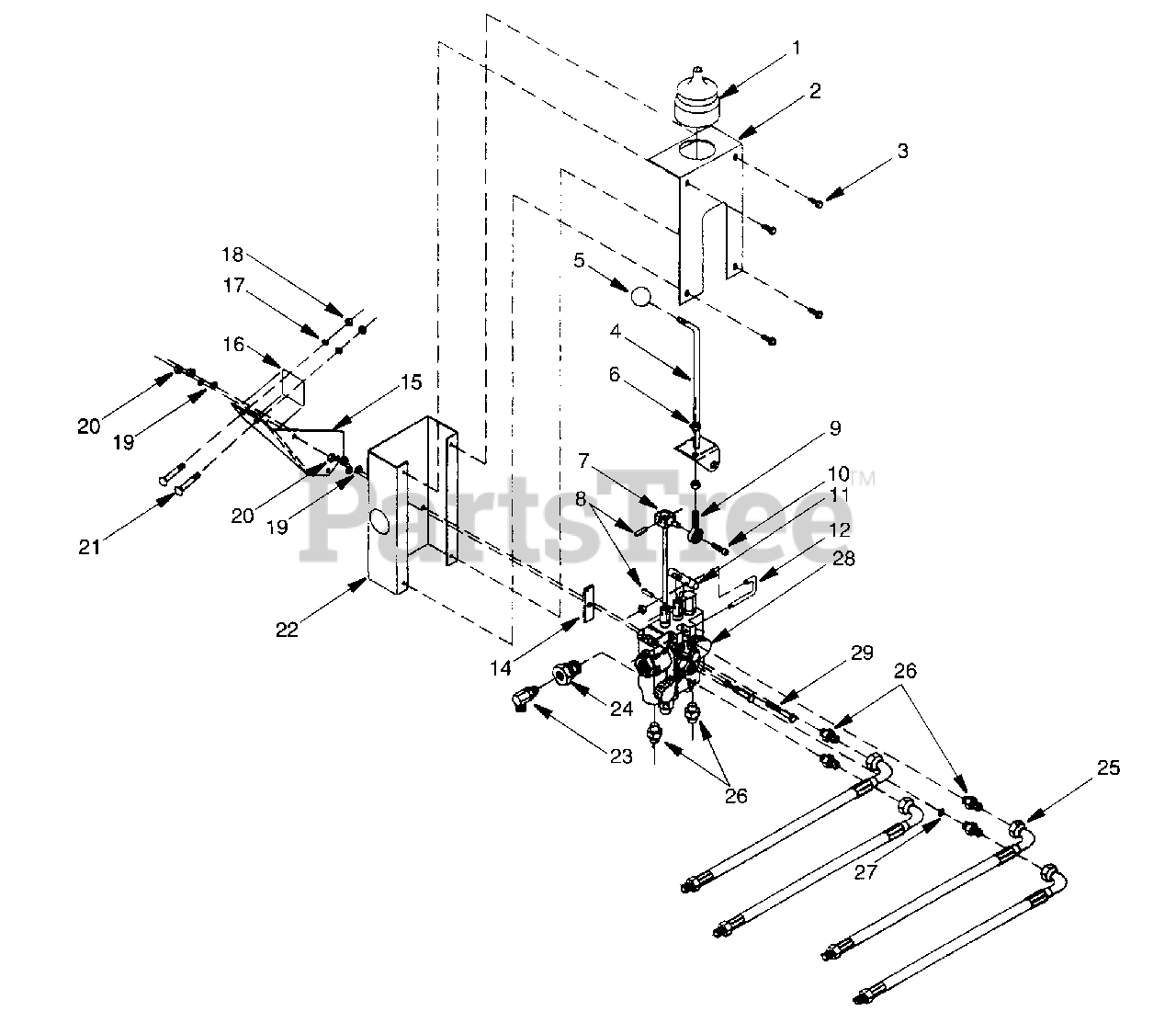

Control Valve Kit Parts Diagram

  • Title
1

Cub Cadet WM-37765

Rubber Boot

$

$

Not available

2

Cub Cadet WM-56155

End Cover

$

$

Not available

3

Cub Cadet WM-708

Self Tap Screw, 1/4 NC x 3/4

$

$

Not available

$

$

Not available

5

$

$

Not available

6

Cub Cadet WM-302054

Hex Nut, 5/16 NF
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

7

Cub Cadet WM-215281

Pivot Block

$

$

Not available

8

Cub Cadet WM-481769

Roll Pin, 1/4 x 7/8

$

$

Not available

9

Cub Cadet WM-489089

Rod End Ball Joint

$

$

Not available

10

Cub Cadet WM-300067

Socket Hd Cap Screw, 1/4 x 1

$

$

Not available

$

$

Not available

12

Cub Cadet WM-215214

U-Bolt
(Superseded to WM-21-5214)

$

$

Not available

?13

Cub Cadet WM-6128

Self Locking Hex Nut, 1/4 NC
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

$

$

Not available

15

Cub Cadet WM-6841-1

Valve Mounting Bracket

$

$

Not available

16

Cub Cadet WM-260274

Control Valve Decal

$5.49

$

In Stock, only 1 left!

0

17

Cub Cadet WM-838

Lockwasher, 3/8

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet WM-835

Hex Nut, 3/8
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet WM-1985

Lockwasher, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

20

Cub Cadet WM-5288

Hex Nut, 1/4 NC

$

$

Currently unavailable

21

Cub Cadet WM-1528

Carriage Bolt, 3/8 NC x 1

$

$

Currently unavailable

22

Cub Cadet WM-56154

Valve Cover

$

$

Not available

23

Cub Cadet WM-63558

9/16 ORM x 9/16 JICM 90°

$

$

Not available

24

Cub Cadet WM-346083

Power Beyond Sleeve

$

$

Not available

25

Cub Cadet WM-56127

25" Hose, 9/16 JICF x 3/4 JICM

$

$

Not available

26

Cub Cadet WM-62367

Adapter, 9/16 ORM x 9/16 JICM

$

$

Not available

27

Cub Cadet WM-58626

Plate Orifice, .094 Dia

$

$

Not available

28

Cub Cadet WM-58625

Valve, 2 Spool Monoblock, 1800 psi

$

$

Not available

29

Cub Cadet WM-31234

Cap Screw, 1/4 NC x 2.5 GR5

$

$

Currently unavailable

Cub Cadet WM-56139

Decal-Power Beyond Connection

$

$

Not available

Cub Cadet WM-346036

Detent Kit

$

$

Not available

Cub Cadet WM-346160

Spring Center Kit

$

$

Not available

$456.99

$

Usually ships in 3-6 days

0

Cub Cadet WM-346151

Load Check Kit

$

$

Not available
