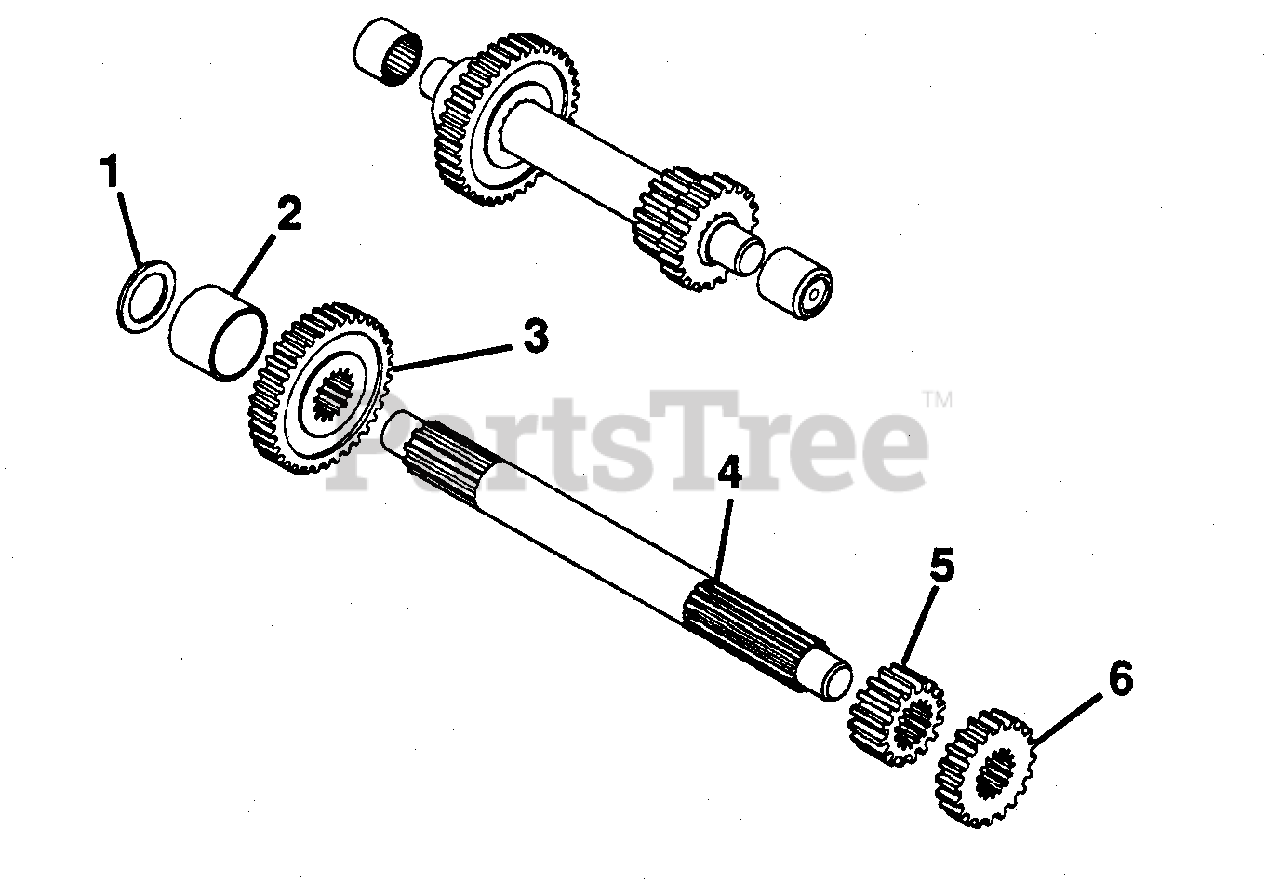

47580 - Gravely Lawn Tractor, 20hp, With Hydraulic Lift NUMBER THREE SHAFT - 3RD AND 4TH GEAR Parts Diagram

Lawn Tractor, 20hp, With Hydraulic Lift

NUMBER THREE SHAFT - 3RD AND 4TH GEAR Parts Diagram

  • Title
1

18000

Brg, Thrust Race .627 x 1.115 x .094

$

$

Not available

2

17999

Spacer, 1.027 x 1.125 x .457

$

$

Not available

3

19535

Gear

$

$

Not available

4

17997

Shaft, Splined

$

$

Not available

5

17992

Gear, 10 DP 16 Teeth x .750

$

$

Not available

6

15118

Gear, 10 DP 20 Teeth x .600

$

$

Not available
