47580 - Gravely Lawn Tractor, 20hp, With Hydraulic Lift NUMBER SIX SHAFT - BRAKE/SLIDIING GEAR Parts Diagram

Lawn Tractor, 20hp, With Hydraulic Lift

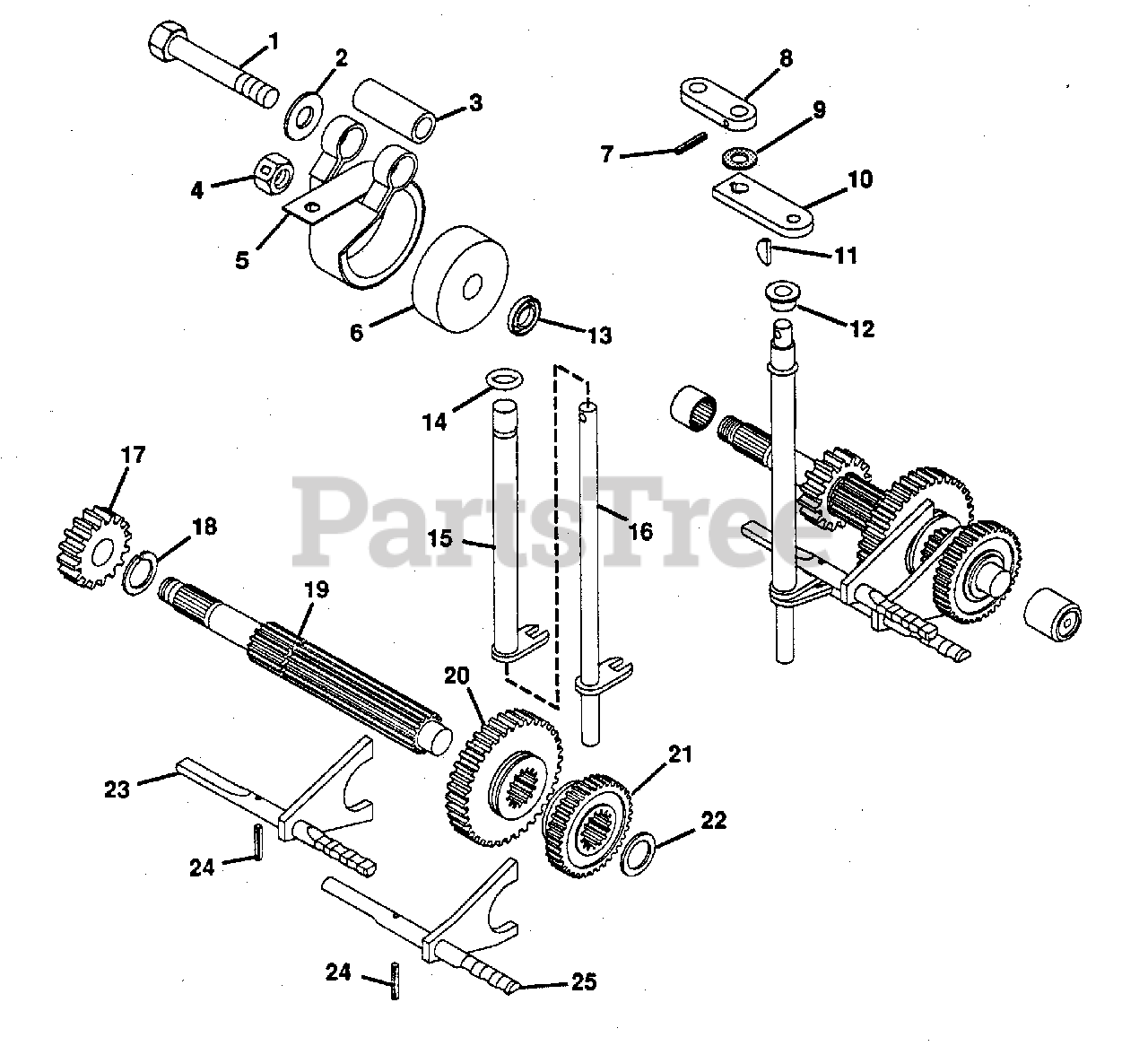

NUMBER SIX SHAFT - BRAKE/SLIDIING GEAR Parts Diagram

  • Title

1

Gravely 180188

Bolt, Hex 1/2-13 x 2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 120396

Washer, Flat .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

18165

Bushing, .530 x .750 x 2.06

$

$

Not available

4

Gravely 414075

Nut, Lock 5/8-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

5

40732

Assembly, Brake Band

$

$

Not available

6

21371

Drum, Brake

$

$

Not available

7

Gravely 421202

Pin, Spring .188 x 1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

8

17945

Arm, Shifter

$

$

Not available

9

21141

Washer, Felt (Special for Trans.)

Note: (Special for Trans.)

$

$

Not available

10

17944

Arm, Shifter

$

$

Not available

11

Gravely 271089

Key, Woodruff .125 x .375 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

12

17943

Bushing, .756 x 1.125 x .75

$

$

Not available

13

15137

Seal, Oil .750 x 1.254 x .188

$

$

Not available

14

18018

O-Ring, 5/8 x 3/4 x 1/16

$

$

Not available

15

17940

Weldment, 1st and 3rd Shifter

$

$

Not available

16

17937

Weldment, 2nd and 4th Shifter

$

$

Not available

17

14988

Gera, 8 DP 16 Teeth x .850

$

$

Not available

18

14987

Ring, Retaining 1.00 Shaft

$

$

Not available

19

21370

Shaft, Slide Gear

$

$

Not available

20

14989

Gear, Sliding 10 DP 36 Teeth x .59

$

$

Not available

21

14995

Gear, Sliding 10 DP 30 Teeth x .59

$

$

Not available

22

14998

Race, BRG Thrust .752 x 1.240 x .095

$

$

Not available

23

20761

Wldmt, Rail Shift Fork 1&3 Range

$

$

Not available

24

Gravely 456390

Pin, Spring .25 x .75
(Superseded to 05803600)

$2.99

$

In Stock, only 3 left!

0

25

20762

Wldmt, Rail Shift Fork 2&4 Range

$

$

Not available
