47580 - Gravely Lawn Tractor, 20hp, With Hydraulic Lift BRAKE LINKAGE Parts Diagram

Lawn Tractor, 20hp, With Hydraulic Lift

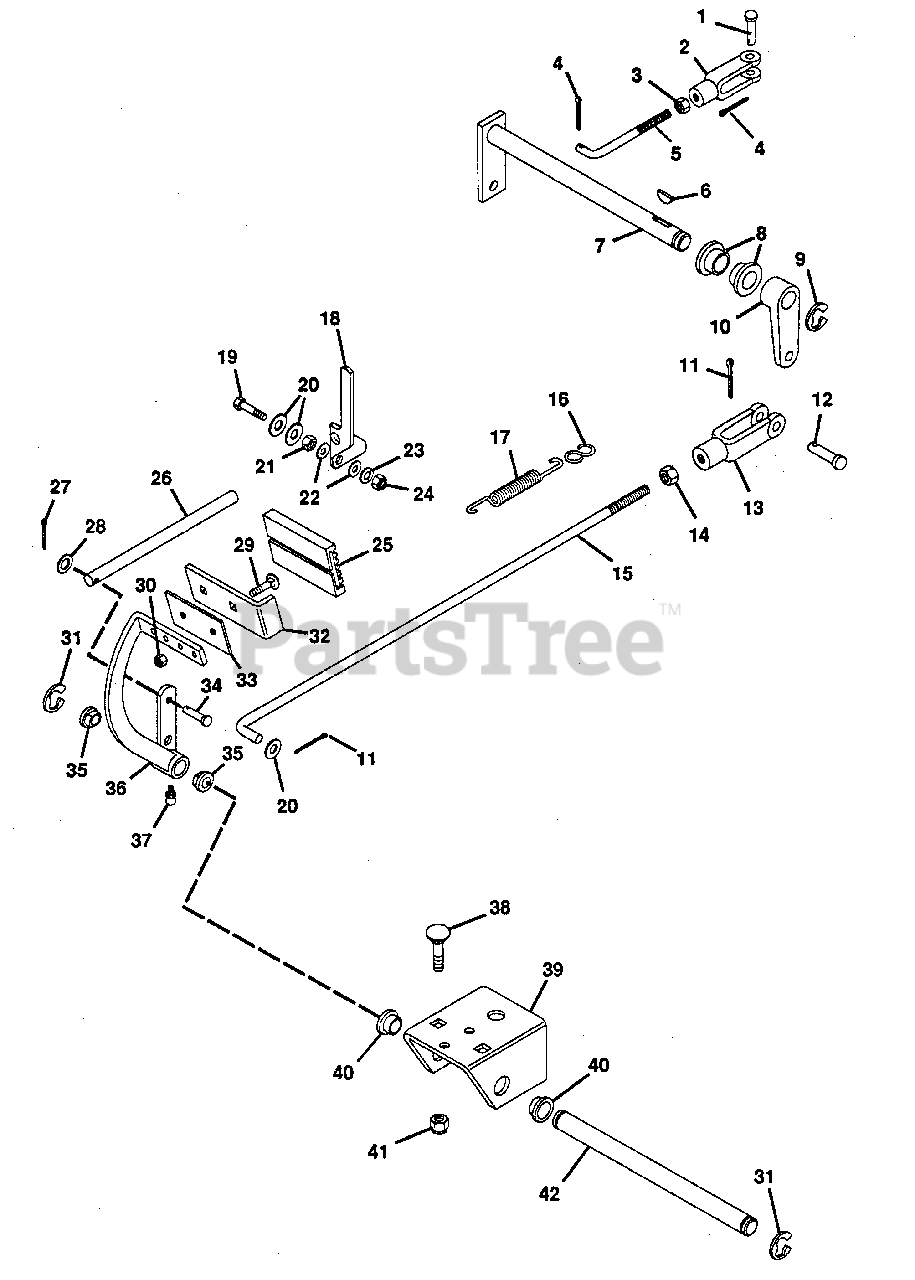

BRAKE LINKAGE Parts Diagram

  • Title
1

Gravely 121741

PIN, CLEVIS 5/16X.812
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 034633

YOKE
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 120368

NUT, HEX 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

5

Gravely 045109

ROD, PARKING BRAKE
(Superseded to 08656100)

$60.99

$

Usually ships in 4-12 days

0

6

Gravely 124549

KEY, WOODRUFF .187X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 045104

WELDMENT, BRAKE CROSS SHAFT
(Superseded to 08764500)

$

$

Not available

8

Gravely 010174

BUSHING, NYLON .76X1.00X.76 FLG
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 011270

E-RING, .750 SHAFT
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 018019

LEVER, PTO
(Superseded to 08705700)

$

$

Not available

11

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

12

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

13

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 124925

NUT, JAM 3/8-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 045102

ROD, BRAKE
(Superseded to 08656000)

$

$

Not available

16

Gravely 011329

CLIP, SPRING
(Superseded to 08657900)

$

$

Not available

17

Gravely 011263

SPRING, EXT. 5.50X.50X20 RATE
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 020772

ARM, PARKING BRAKE LOCK
(Superseded to 08859800)

$

$

Not available

19

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

23

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 041944

PAD, PEDAL
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

26

Gravely 046064

ROD
(Superseded to 08775400)

$49.99

$

Usually ships in 4-12 days

0

27

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

28

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 126325

BOLT, CARRIAGE 1/4-20X1.25
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 018053

E-RING, .625 SHAFT
(Superseded to 05708300)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 045518

PEDAL, BRAKE
(Superseded to 08767400)

$

$

Not available

33

Gravely 041921

PLATE, BRAKE
(Superseded to 08938300)

$

$

Not available

34

Gravely 045918

PIN, CLEVIS .25X1.03
(Superseded to 06700209)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 026428

BEARING
(Superseded to 05430300)

$

$

Not available

36

Gravely 045215

WELDMENT, BRAKE PEDAL
(Superseded to 08765200)

$284.99

$

Usually ships in 4-12 days

0

37

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

38

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

39

Gravely 045222

BRACKET, BRAKE PEDAL
(Superseded to 08765800)

$

$

Not available

40

Gravely 045787

BUSHING, NYLON .63X.873X.50
(Superseded to 05517400)

$

$

Not available

41

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 045221

SHAFT, BRAKE PEDAL MOUNTING
(Superseded to 08765700)

$

$

Not available
