47510 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp ONAN (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 20hp ONAN

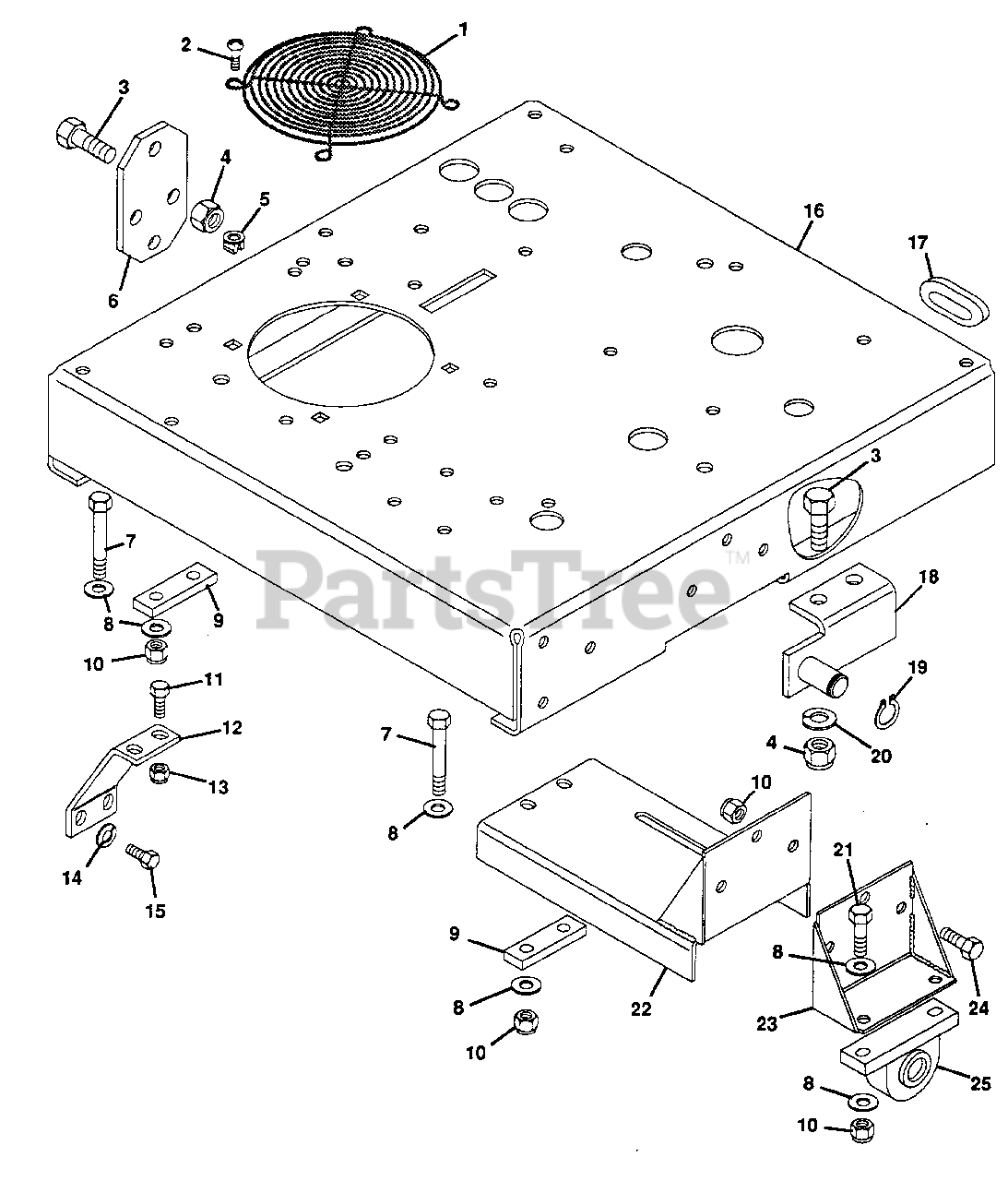

MAIN FRAME Parts Diagram

  • Title
1

Gravely 045251

GUARD, FAN
(Superseded to 09029700)

$119.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

SCREW, 1/4-20X.50 SELF TAPPING
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 045877

PLATE
(Superseded to 08972051)

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 044552

SPACER
(Superseded to 21268900)

$

$

Not available

10

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 180078

BOLT, HEX 5/16-18X.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 044577

BRACKET, TRANSAXLE SUPPORT
(Superseded to 08952600)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 044553

FRAME, PRO MASTER 18-H
(Superseded to 21269000)

$

$

Not available

17

Gravely 046334

GROMMET
(Superseded to 07531900)

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 044884

WELDMENT, PILOT L.H.
(Superseded to 21271000)

$

$

Not available

18

Gravely 044883

WELDMENT, PILOT R.H.
(Superseded to 21270900)

$

$

Not available

19

Gravely 026300

RING, RETAINING
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

20

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

21

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

22

Gravely 048773

WELDMENT, AXLE SUPPORT BRACKET
(Superseded to 21286700)

$

$

Not available

23

Gravely 048777

WELDMENT, SUPPORT
(Superseded to 21286900)

$

$

Not available

24

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 044599

BEARING, PILLOW BLOCK
(Superseded to 05425600)

$82.99

$

Usually ships in 4-12 days

0
