475 (590-475-100) - Cub Cadet Loader att Control Valve Kit Parts Diagram

Loader

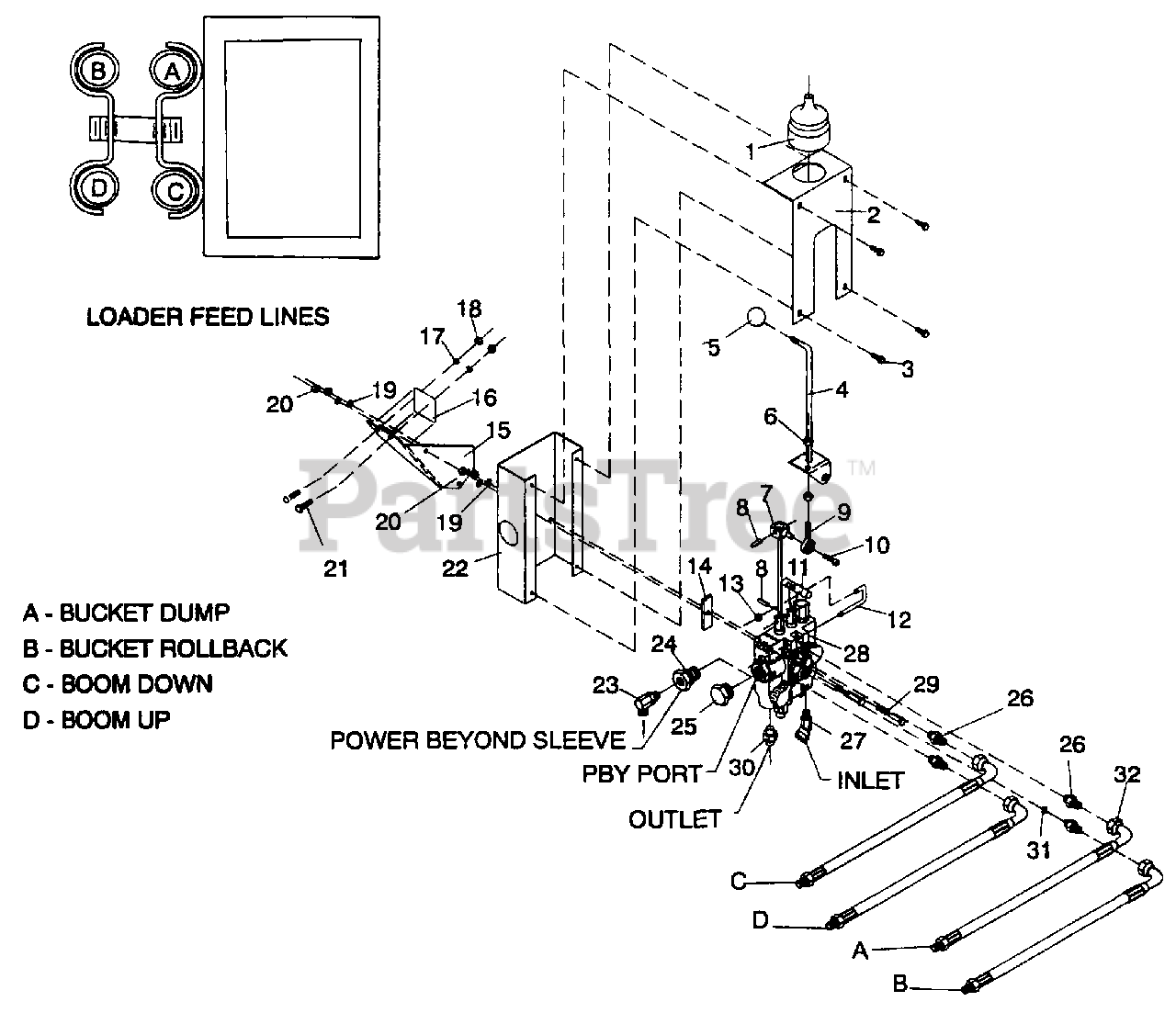

Control Valve Kit Parts Diagram

  • Title
1

Cub Cadet WM-37765

Rubber boot

$

$

Not available

2

Cub Cadet WM-30320

End cover

$

$

Not available

3

Cub Cadet WM-708

1/4 NC x 3/4 Self-tap screw

$

$

Not available

$

$

Not available

5

$

$

Not available

6

Cub Cadet WM-302054

5/16 NF Hex nut
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet WM-215281

Pivot block

$

$

Not available

8

Cub Cadet WM-481769

1/4 x 7/8 Roll pin

$

$

Not available

9

Cub Cadet WM-489089

Rod end ball joint

$

$

Not available

10

Cub Cadet WM-300067

1/4 x 1 Socket head cap screw

$

$

Not available

$

$

Not available

12

Cub Cadet WM-215214

U-Bolt
(Superseded to WM-21-5214)

$

$

Not available

13

Cub Cadet WM-6128

1/4 NC Self-lock hex nut
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

$

$

Not available

15

Cub Cadet WM-56167

Valve mounting bracket

$

$

Not available

16

Cub Cadet WM-260274

Control valve decal

$5.49

$

In Stock, only 1 left!

0

17

Cub Cadet WM-838

3/8 Lockwasher

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet WM-835

3/8 Hex nut
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet WM-1985

1/4 Lockwasher
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

20

Cub Cadet WM-5288

1/4 NC Hex nut

$

$

Currently unavailable

21

Cub Cadet WM-6697

3/8 x 1 Carriage Bolt

$

$

Not available

22

Cub Cadet WM-30321

Valve cover

$

$

Not available

23

Cub Cadet WM-313043

Elbow 9/16 ORBM x 1/2 NPSM 90°.

$

$

Not available

24

Cub Cadet WM-346083

Power beyond sleeve

$

$

Not available

25

Cub Cadet WM-310012

Cap plug (open center hyd. only)

$

$

Not available

26

Cub Cadet WM-62367

9/16 ORM x 9/16 JICM Adapter

$

$

Not available

27

Cub Cadet WM-313047

Elbow 9/16 ORBM x 1/2 NPSM 45°.

$68.99

$

In Stock, only 1 left!

0

28

WM-346081

Model 1006 Valve

$

$

Not available

29

Cub Cadet WM-53

1/4 NC x 2-1/2 Cap screw GR5

$

$

Currently unavailable

30

Cub Cadet WM-315050

9/16 ORBM x 1/2 NPSM Adapter

$15.99

$

In Stock, only 1 left!

0

31

Cub Cadet WM-346166

Plate orifice

$

$

Not available

32

Cub Cadet WM-360214

18" Hose

Note: With protective sleeves clamped at both ends, 9/16 JICF x 9/16 JICM

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet WM-346036

Detent Kit

Note: (Not Shown)

$

$

Not available

Cub Cadet WM-346160

Spring Center Kit

Note: (Not Shown)

$

$

Not available

Cub Cadet WM-346116

Seal Kit

Note: (Not Shown)

$456.99

$

Usually ships in 3-6 days

0

Cub Cadet WM-346151

Load Check Kit

Note: (Not Shown)

$

$

Not available
