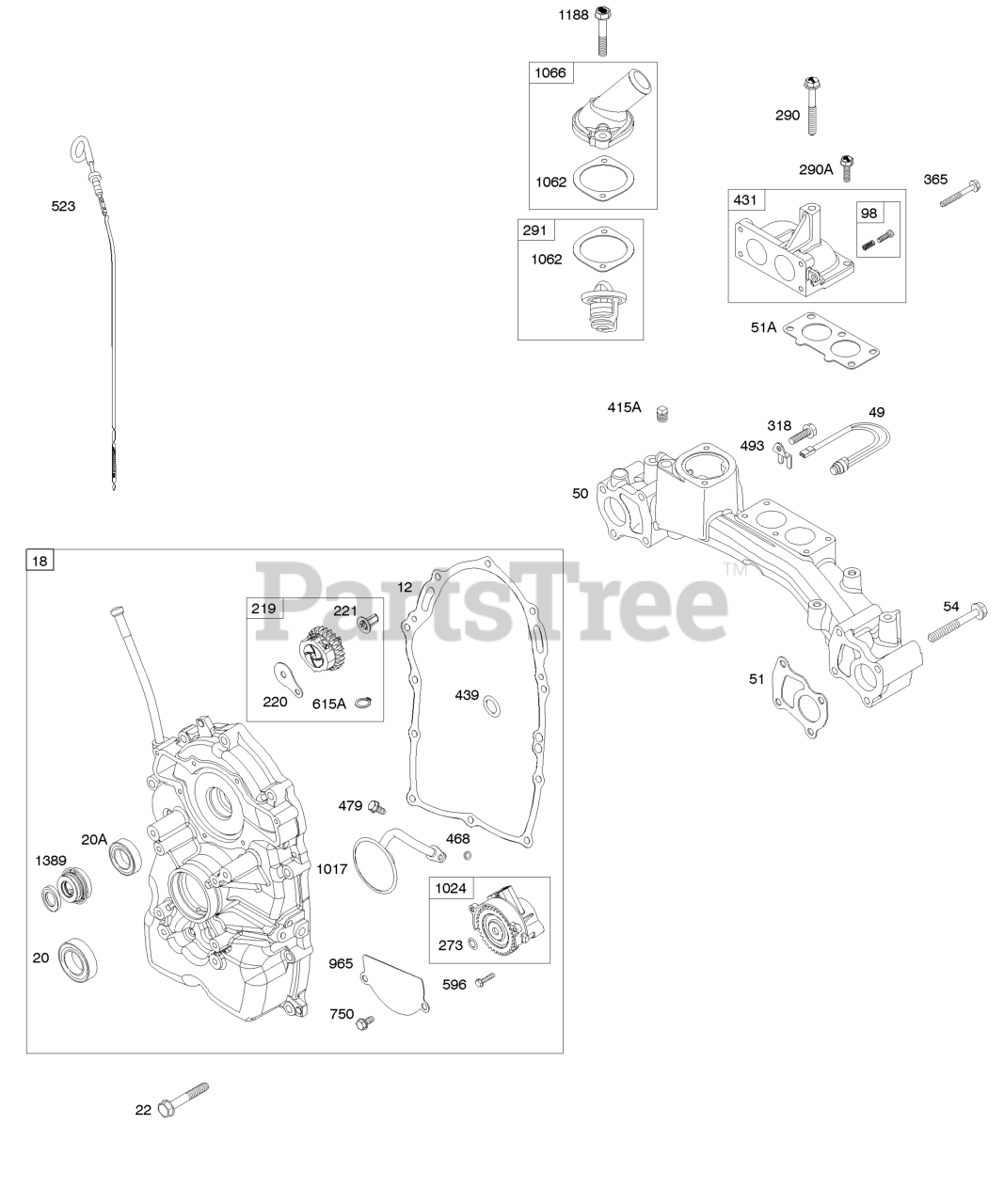

474177-0112-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump, Intake Manifold Parts Diagram

Horizontal Engine

Crankcase Cover/Sump, Intake Manifold Parts Diagram

  • Title

12

Briggs & Stratton 807325

Gasket-Crankcase

$47.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 809539

Cover-Crankcase
(Superseded to 842922)

$406.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side) (Lower)

$17.99

$

In Stock, Qty 20+

0

20A

Briggs & Stratton 809510

Seal-Oil

Note: (PTO Side) (Top)

$10.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (50mm Long)

$3.49

$

In Stock, Qty 6

0

22

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Crankcase Cover/Sump) (12mm Long)

$3.49

$

In Stock, Qty 20+

0

49

Briggs & Stratton 807426

Sensor-Water Temperature

$50.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 807432

Manifold-Intake

$285.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 807434

Gasket-Intake

$5.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 15

0

54

Briggs & Stratton 807437

Screw

Note: (Intake Manifold) (M6x85mm Long)

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 806444

SCREW

Note: (Intake Manifold) (M6x65mm Long)

$4.49

$

In Stock, only 1 left!

0

98

Briggs & Stratton 841842

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 809426

Gear-Governor

$63.99

$

In Stock, Qty 10

0

220

Briggs & Stratton 841608

Washer

Note: (Governor Gear)

$12.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

290

Briggs & Stratton 807436

Screw

Note: (Intake Elbow) (M6x50mm Long)

$2.99

$

Usually ships in 2-12 days

0

290A

Briggs & Stratton 807435

SCREW

Note: (Intake Elbow) (M6x20mm Long)

$3.49

$

Usually ships in 2-12 days

0

291

Briggs & Stratton 841491

Thermostat

$31.99

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Mounting Bracket) (M6x10mm Long)

$3.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 807437

Screw

Note: (Carburetor) (M6x85mm Long)

$3.99

$

Usually ships in 2-12 days

0

415A

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Intake Manifold)

$5.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 807319

Elbow-Intake

$142.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump) or (Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.49

$

In Stock, only 2 left!

0

493

Briggs & Stratton 807427

Bracket-Mounting

Note: (Water Temperature Sensor)

$14.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 807450

Dipstick

$55.99

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$3.99

$

In Stock, only 2 left!

0

615A

Briggs & Stratton 698290

RETAINER, Governor Shaft

Note: (Crankcase Cover/Sump)

$4.49

$

In Stock, Qty 9

0

750

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Oil Pump Cover)

$3.49

$

In Stock, Qty 20+

0

965

Briggs & Stratton 809422

COVER, Oil Pump

$19.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 809421

SCREEN, Oil Pump

$34.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 841291

Pump-Oil
(Superseded to 845983)

$159.99

$

Usually ships in 2-12 days

0

1062

Briggs & Stratton 809397

Gasket-Outlet Housing

$4.99

$

Usually ships in 2-12 days

0

1066

Briggs & Stratton 841284

Housing-Inlet

$192.99

$

Usually ships in 2-12 days

0

1188

Briggs & Stratton 807385

Screw

Note: (Inlet Housing)

$3.99

$

Usually ships in 2-12 days

0

1389

Briggs & Stratton 809423

Seal-Impeller

$48.99

$

Usually ships in 2-12 days

0
