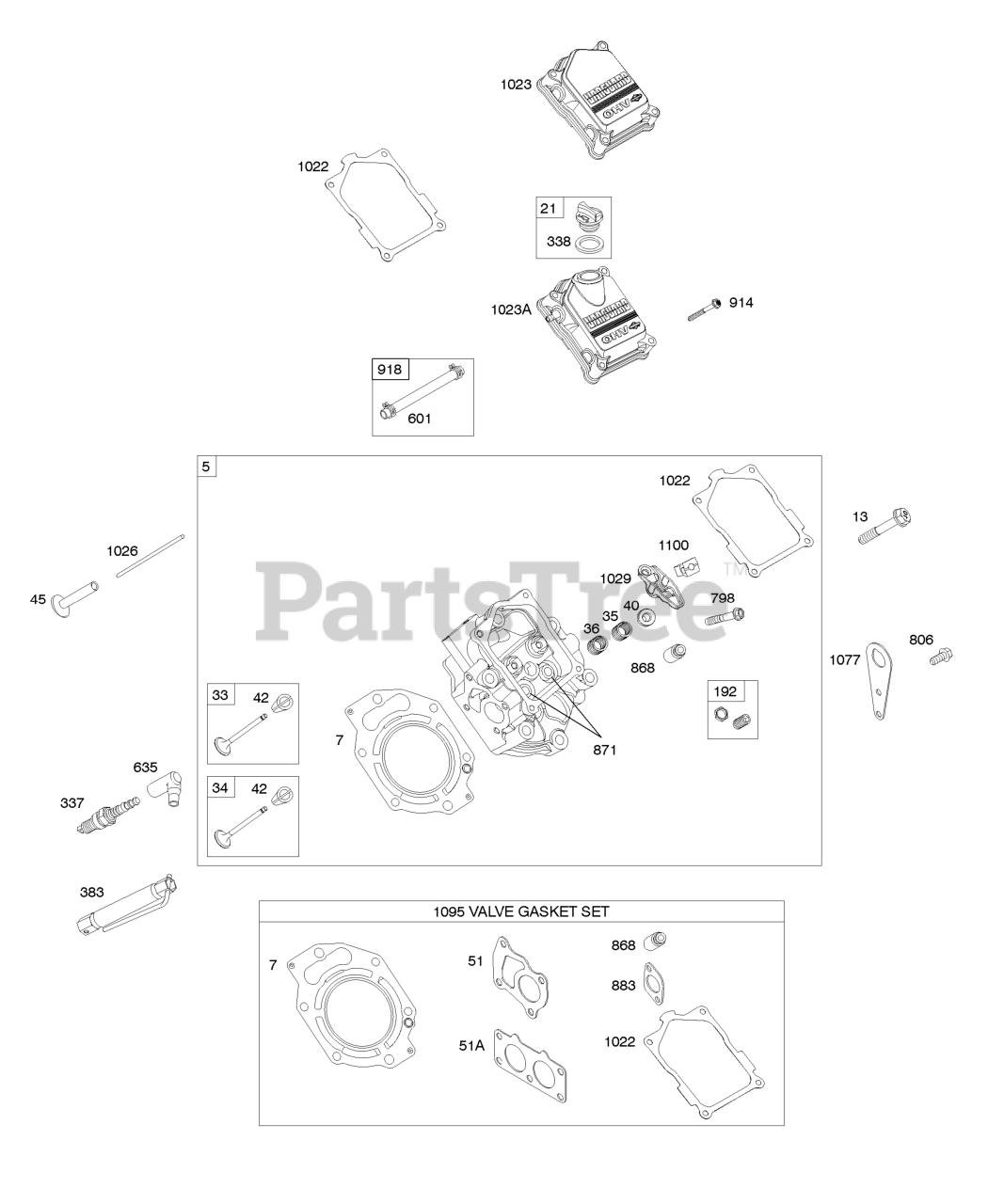

474177-0100-E1 - Briggs & Stratton Horizontal Engine Valve Gasket Set, Cylinder Head, Valve Covers Parts Diagram

Horizontal Engine

Valve Gasket Set, Cylinder Head, Valve Covers Parts Diagram

  • Title

5

Briggs & Stratton 809277

Head-Cylinder

Note: (Cylinder #2)

$

$

Not available

5

Briggs & Stratton 809276

Head-Cylinder

Note: (Cylinder #1)

$

$

Not available

7

Briggs & Stratton 807341

Gasket-Cylinder Head

Note: (Metal)

$64.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 807372

Screw

Note: (Cylinder Head) (M9x60mm Long)

$4.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 807371

Screw

Note: (Cylinder Head) (M9x95mm Long)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 809500

Cap-Oil Fill

$10.99

$

In Stock, Qty 17

0

33

Briggs & Stratton 809376

Valve-Exhaust

$

$

Not available

34

Briggs & Stratton 809375

Valve-Intake

$39.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 809374

Spring-Valve

Note: (Intake)

$8.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 809374

Spring-Valve

Note: (Exhaust)

$8.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 807492

Retainer-Valve
(Superseded to 844788)

$6.99

$

In Stock, Qty 12

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 807434

Gasket-Intake

$5.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 20+

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Plug-Spark
(Superseded to RC12YC)

$3.49

$

Usually ships in 2-12 days

0

338

Briggs & Stratton 691312

Gasket-Dipstick
(Superseded to 809500)

$10.99

$

In Stock, Qty 17

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Fuel Pump)

$3.99

$

In Stock, Qty 17

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

798

Briggs & Stratton 691492

SCREW

Note: (Rocker Arm)

$3.99

$

In Stock, only 2 left!

0

806

Briggs & Stratton 692062

Screw

Note: (Lifting Bracket)

$3.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

Bushing-Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 807326

Gasket-Exhaust

Note: (Manifold to Head)

$9.49

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 807357

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 809323

Hose-Vacuum

$8.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 807333

Gasket-Rocker Cover

$11.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 807334

Cover-Rocker

$109.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 809521

Cover-Rocker

$171.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 807336

Rod-Push

$22.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1077

Briggs & Stratton 807335

Bracket-Lifting

$11.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 809856

Gasket Set-Valve

$124.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 3 left!

0
