47383 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start SOUND SHROUD Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Electric Start

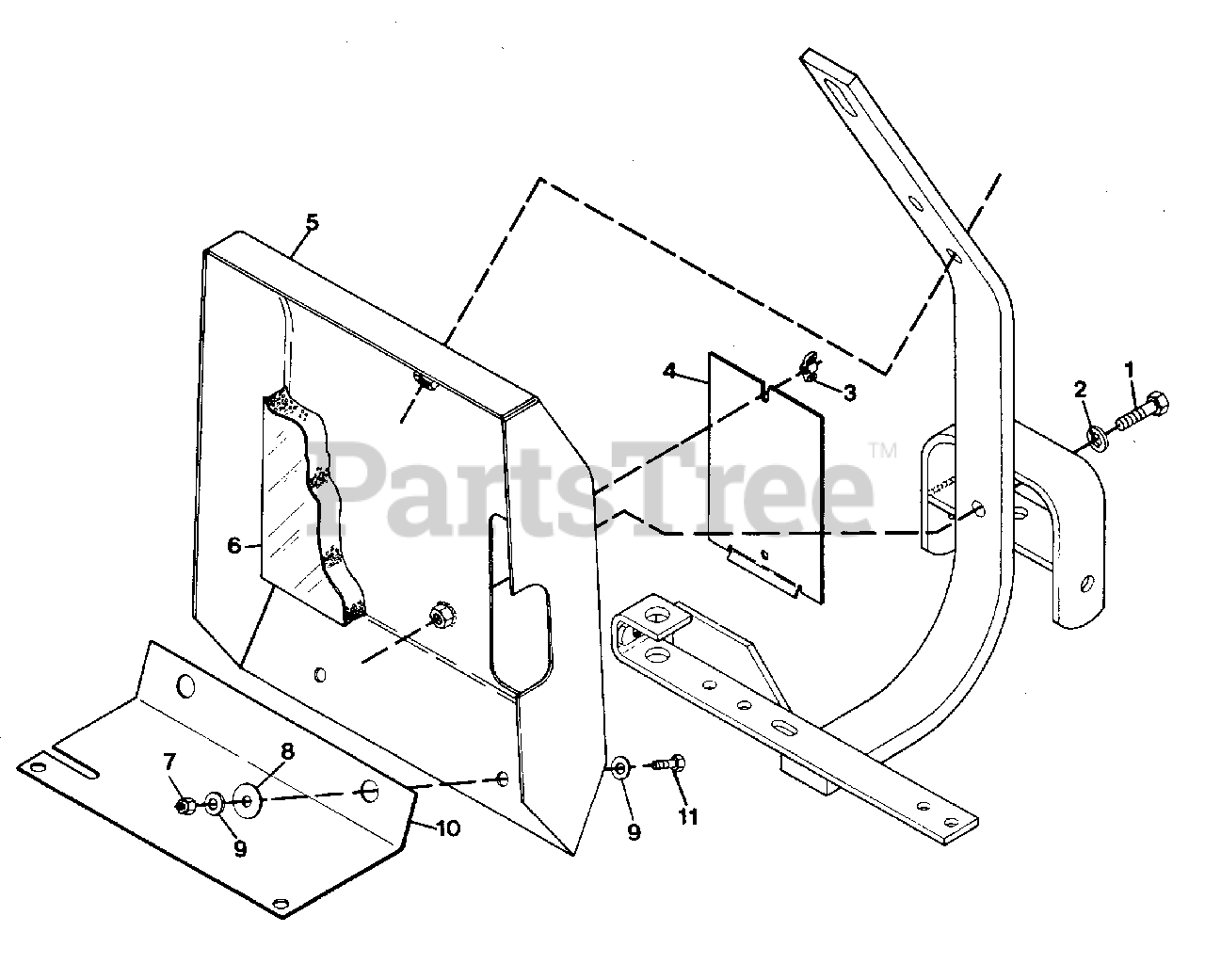

SOUND SHROUD Parts Diagram

  • Title

1

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

3

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

4

Gravely 044803

PLATE, SILK SCREEN
(Superseded to 08558700)

$

$

Not available

5

Gravely 044596

WELDMENT, SOUND SHROUD
(Superseded to 08557600)

$

$

Not available

6

Gravely 044648

FOAM, DOOR
(Superseded to 08601800)

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 044649

FOAM, MIDDLE
(Superseded to 08601900)

$

$

Not available

6

Gravely 044650

FOAM, R.H.
(Superseded to 08602000)

$

$

Not available

6

Gravely 044651

FOAM, L.H.
(Superseded to 08602100)

$41.99

$

Usually ships in 4-12 days

0

7

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 012694

WASHER, FLAT .265X1.250X.063
(Superseded to 06403700)

$

$

Not available

9

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 045183

SCREEN, SOUND
(Superseded to 08559800)

$

$

Not available

11

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0
