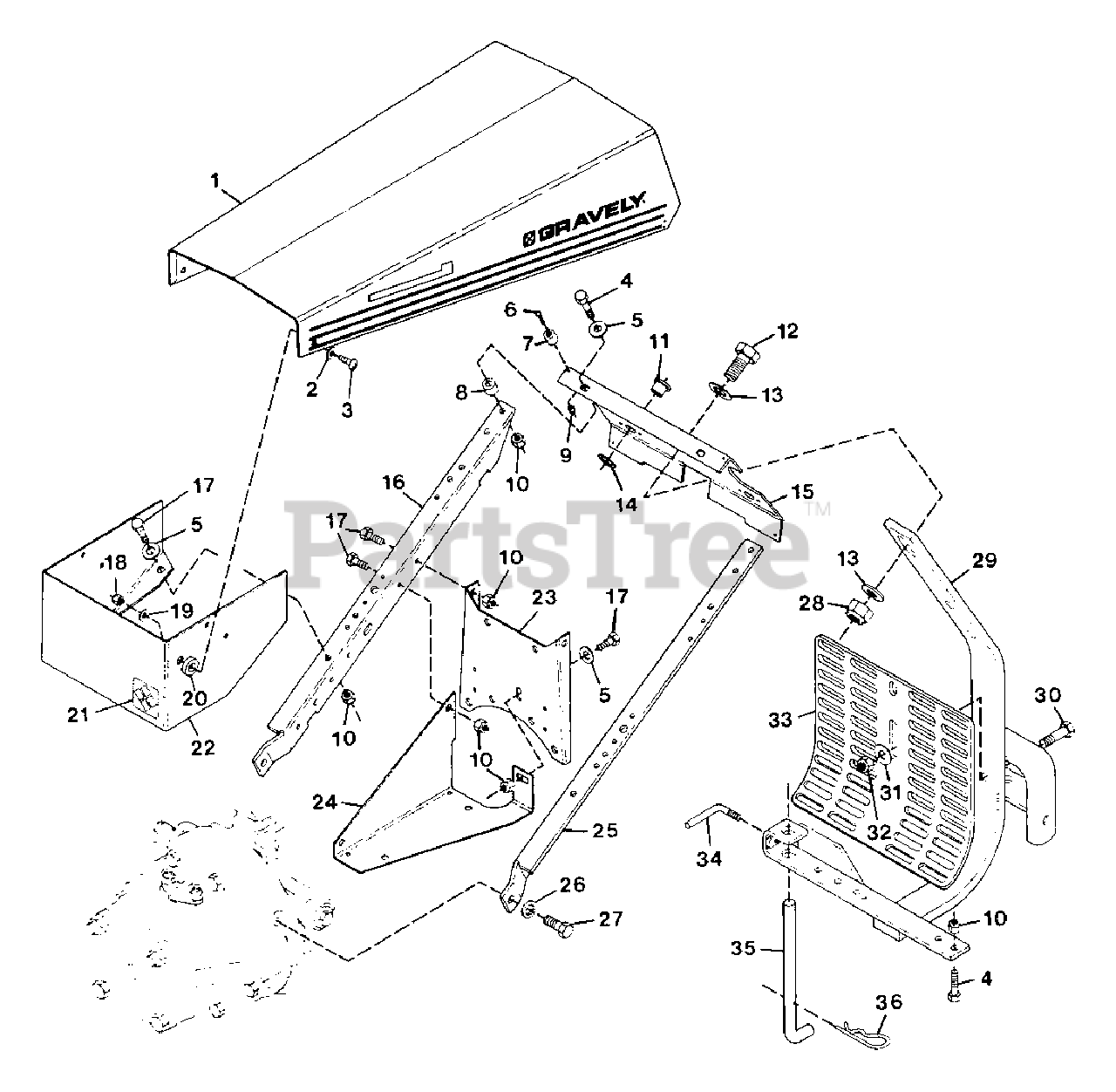

47367 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start Frame - Professional 8 Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Frame - Professional 8 Parts Diagram

  • Title

1

40973

Assembly, Hood

$

$

Not available

2

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 160556

Screw, Mach. 1/4-20x1.00 PHD
(Superseded to 06113600)

$

$

Not available

4

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

5

Gravely 120394

Washer, Flat .406x.812x.065 (Manual)
(Superseded to 06401013)

Note: (Manual)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120394

Washer, Flat .406x.812x.065 (Electric)
(Superseded to 06401013)

Note: (Electric)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 159341

Screw, Mach. 6-32x.625 PHD
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

7

18183

Bumper

$

$

Not available

8

43922

Bushing, Reverse Idler

$

$

Not available

9

Gravely 427254

Nut, Mach. Lock 6-32
(Superseded to 06538900)

$

$

Not available

10

Gravely 456004

Nut, Lock 3/8-16 (Manual)
(Superseded to 06500831)

Note: (Manual)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 456004

Nut, Lock 3/8-16 (Electric)
(Superseded to 06500831)

Note: (Electric)

$2.49

$

In Stock, only 3 left!

0

11

34738

Bushing, .513x.750x.625

$

$

Not available

12

Gravely 271723

Bolt, Hex 5/8-11x2.00
(Superseded to 05968100)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 421879

Washer, Flat .656x1.250x1.00
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

14

34737

Ring, Retaining

$

$

Not available

15

41767

Plate, Silk Screen (Manual)

Note: (Manual)

$

$

Not available

15

40872

Plate, Silk Screen (Electric)

Note: (Electric)

$

$

Not available

16

40618

Support, Handlebar R.H.

$

$

Not available

17

Gravely 180121

Bolt, Hex 3/8-16x.875 (Manual)
(Superseded to 05932600)

Note: (Manual)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 180121

Bolt, Hex 3/8-16x.875 (Electric)
(Superseded to 05932600)

Note: (Electric)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 446354

Washer, Flat .313x.875x.065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

20

41622

Bushing, Hood

$

$

Not available

21

10697

Decal

$

$

Not available

22

40847

Support, Hood

$

$

Not available

23

40629

Bracket

$

$

Not available

24

40846

Tray, Battery (Electric)

Note: (Electric)

$

$

Not available

25

40619

Support, Handlebar L.H.

$

$

Not available

26

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

27

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

29

40821

Weldment, Hitch 8 H.P.

$

$

Not available

30

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

32

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

33

47190

Guard, Engine

$

$

Not available

34

13457

Handle, Adjusting

$

$

Not available

35

34062

Stand, Kick

$

$

Not available

36

10405

Pin, Hair

$

$

Not available

NS

44128

Decal, 8

$

$

Not available

NS

44074

Decal, Side Stripe

$

$

Not available

NS

44077

Decal, Gravely

$

$

Not available

NS

43417

Decal, 6 Lead

$

$

Not available

NS

43418

Decal, 8 Lead

$

$

Not available

NS

44075

Decal, Professional

$

$

Not available
