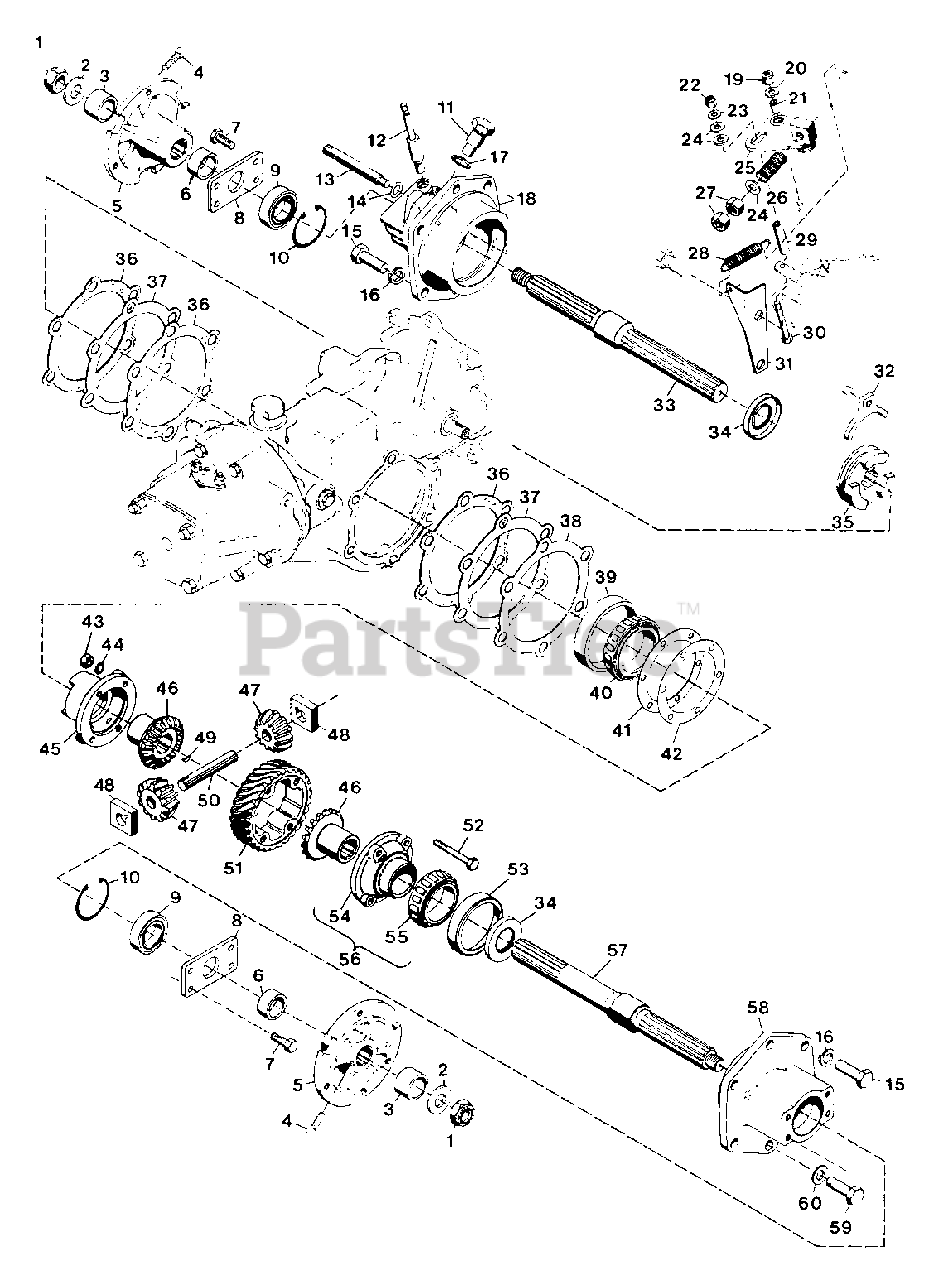

47360 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start Locking Differential - 2 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Locking Differential - 2 Speed Parts Diagram

  • Title

1

22502

Nut, Hex 3/4-10 Light Thin

$

$

Not available

2

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

22512

Spacer

$

$

Not available

4

Gravely 426913

Screw, Set 7/16-14x1.00 SQHCP
(Superseded to 21069400)

$

$

Not available

5

22507

Hub, Wheel

$

$

Not available

6

22501

Spacer

$

$

Not available

7

Gravely 180120

Bolt, Hex 3/8-16x.750
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

8

22503

Plate, End

$

$

Not available

9

32050

Bearing, Ball 1.000x2.000x.562

$

$

Not available

10

22497

Ring, Retaining 2.000 Bore

$

$

Not available

11

6734

Bolt, Stationary Clutch

$

$

Not available

12

10505

Pivot, Stationary

$

$

Not available

13

6721

Pin, Clutch Sliding

$

$

Not available

14

6732

O-Ring, .438x.625x.094

$

$

Not available

15

Gravely 180173

Bolt, Hex 1/2-13x1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

16

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

17

12707

Washer, Oil Strainer Nut

$

$

Not available

18

22494

Housing, Axle 2-Speed

$

$

Not available

19

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

6724

Bushing, Nylon .375x.503x.875

$

$

Not available

22

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

6723

Weldment, Arm Shifter

$

$

Not available

26

10682

Spring, Compression 2x.72x15.5

$

$

Not available

27

Gravely 124925

Nut, Jam 3/8-24 Hex
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

28

10681

Spring, Extension 2.50x.62

$

$

Not available

29

24382

Bushing

$

$

Not available

30

24383

Bolt, 1/4-20x2.25 Gr. 8 PHd

$

$

Not available

31

10680

Bracket, Spring 2-Speed

$

$

Not available

32

6719

Yoke, Shifting

$

$

Not available

33

41064

Axle, Straight Differential Lock

$

$

Not available

34

22506

Seal, Oil 1.188x2.000x.250

$

$

Not available

35

41063

Clutch, Sliding Differential Lock

$

$

Not available

36

12597

Gasket, Axle Housing

$

$

Not available

37

12596

Shim, Axle Housing .020

$

$

Not available

38

12595

Shim, Axle Housing .005

$

$

Not available

39

12500

Cup, Roller Bearing

$

$

Not available

40

12501

Cone, Roller Bearing

$

$

Not available

41

6740

Shim, Clutch Worm Gear .020

$

$

Not available

42

6739

Shim, Clutch Worm Gear .005

$

$

Not available

43

Gravely 120368

Nut, Hex 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

44

Gravely 138538

Washer, Lock 5/16 Int. Tooth
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

45

41065

Housing, Differential Lock

$

$

Not available

46

6709

Gear, Differential Bevel

$

$

Not available

47

6708

Gear, Spider Bevel

$

$

Not available

48

22505

Block, Drive

$

$

Not available

49

Gravely 271089

Key, Woodruff .125x.375 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

50

12556

Pin, Spider Pinion

$

$

Not available

51

13497

Gear, 4 Lead Worm

$

$

Not available

51

13498

Gear, 6 Lead Worm

$

$

Not available

52

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

53

12130

Cup, Roller Bearing

$

$

Not available

54

22504

Housing, Differential

$

$

Not available

55

12131

Cone, Roller Bearing

$

$

Not available

56

22561

Assembly, Differential Housing

$

$

Not available

57

22493

Axle, Straight

$

$

Not available

58

22495

Housing, Axle

$

$

Not available

59

13624

Bolt, Hex 1/2-13x1 Nylon Insert

$

$

Not available

60

45280

Seal, Oil Drain

$

$

Not available

NS

10389

Cone, Roller Bearing

$

$

Not available

NS

21242

Weldment, 6-Lead Worm

$

$

Not available

NS

12332

Cone, Roller Bearing

$

$

Not available

NS

22560

Welded Worm Shaft Asm- 6 Lead

$

$

Not available

NS

21241

Weldment, 4-Lead Worm

$

$

Not available

NS

22566

Welded Worm Shaft Asm- 4 Lead

$

$

Not available

NS

24579

Decal, Model 5200

$

$

Not available

NS

48853

Decal, Differential Lock

$

$

Not available
