47316 - Gravely Pro-Master Series Grass Bagger BLOWER ASSEMBLY Parts Diagram

Pro-Master Series Grass Bagger

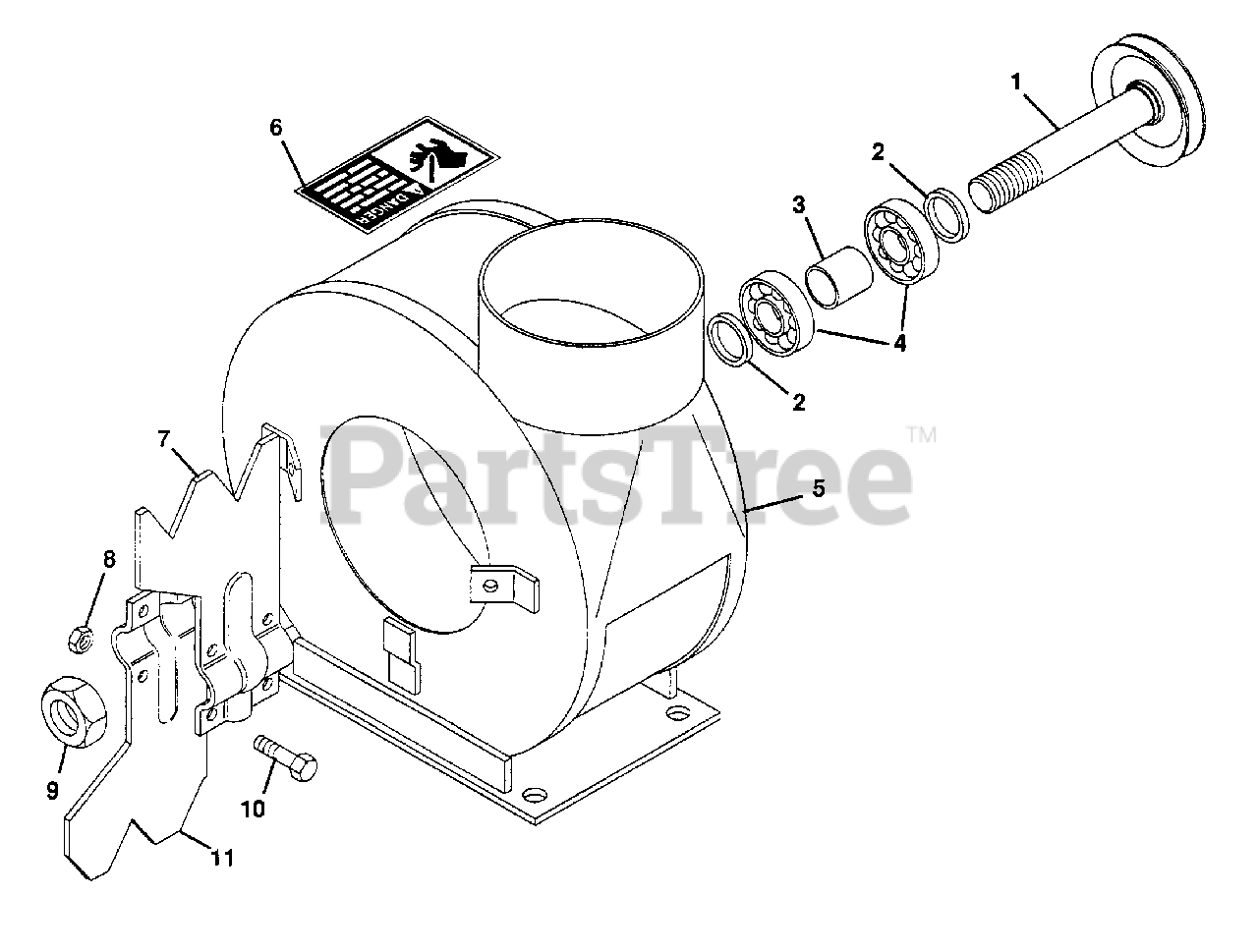

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Gravely 039027

Weldment, Spindle
(Superseded to 03422100)

$349.99

$

Usually ships in 4-12 days

0

2

Gravely 039022

Washer, 1.000/1.031x1.50x.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 039024

Spacer
(Superseded to 03421900)

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 032050

Bearing, Ball 1.000x2.000x.562
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

5

Gravely 049374

Weldment, Blower Housing
(Superseded to 58700400)

$

$

Not available

6

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 039020

Blade, Fan
(Superseded to 03021500)

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 039019

Nut, Hex 1-14 Jam Lock
(Superseded to 06512000)

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 180075

Bolt, Hex 5/16-18x.625
(Superseded to 05901832)

$

$

Not available

11

Gravely 039018

Blade, Fan
(Superseded to 03422000)

$

$

Not available
