472177-0100-E1 - Briggs & Stratton Horizontal Engine Water Pump, Vee Belt, Radiator Fan Parts Diagram

Horizontal Engine

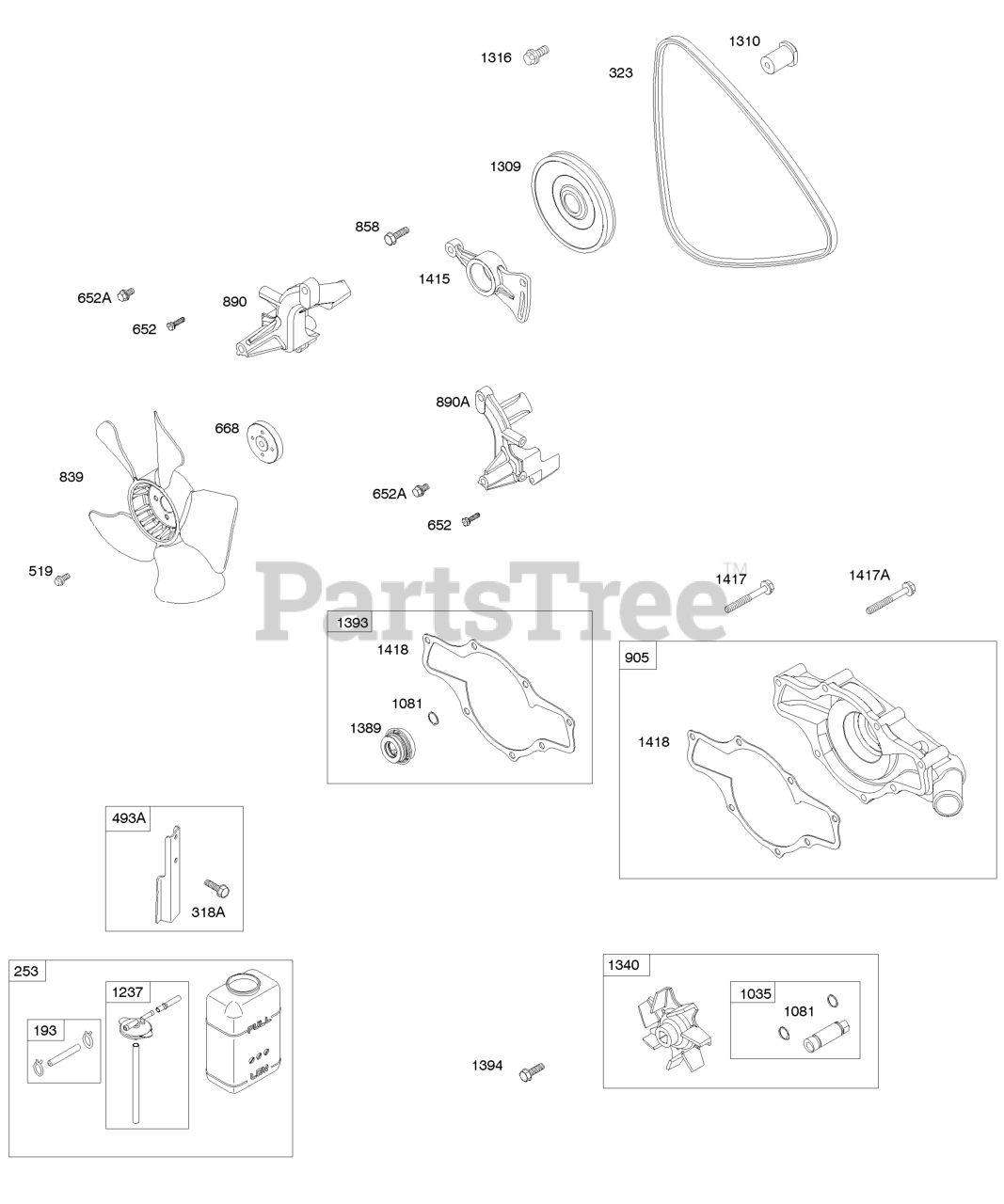

Water Pump, Vee Belt, Radiator Fan Parts Diagram

  • Title

193

Briggs & Stratton 809518

Hose-Reserve Tank

$19.99

$

Usually ships in 2-12 days

0

253

Briggs & Stratton 842111

Tank-Reserve

$76.99

$

Usually ships in 2-12 days

0

318A

Briggs & Stratton 693169

Screw
(Superseded to 807084)

Note: (Mounting Bracket) (M6X16mm Long)

$3.49

$

In Stock, only 3 left!

0

323

Briggs & Stratton 809365

Belt-Vee

$

$

Not available

493A

Briggs & Stratton 809400

Bracket-Mounting

Note: (Radiator/Shroud)

$37.99

$

Usually ships in 2-12 days

0

519

Briggs & Stratton 807382

Screw

Note: (Radiator Fan)

$3.49

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 809529

Screw
(Superseded to 807362)

Note: (Support Bracket) (M8x85mm Long)

$3.49

$

In Stock, Qty 6

0

652A

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Support Bracket) (M6x10mm Long)

$3.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 807443

Spacer

Note: (Radiator Fan)

$31.99

$

Usually ships in 2-12 days

0

839

Briggs & Stratton 809321

Fan-Radiator

$115.99

$

Usually ships in 2-12 days

0

858

Briggs & Stratton 809527

Screw

Note: (Cooling Fan Bracket) (M10x40mm Long)

$3.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 807444

Bracket-Support

Note: (Left Hand)

$148.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 807445

Bracket-Support

Note: (Right Hand)

$94.99

$

Usually ships in 2-12 days

0

905

Briggs & Stratton 809282

Case-Water Pump

$260.99

$

In Stock, only 1 left!

0

1035

Briggs & Stratton 842079

Shaft-Pump

$20.99

$

Usually ships in 2-12 days

0

1081

Briggs & Stratton 841042

Seal-O Ring

Note: (Pump Shaft)

$4.99

$

Usually ships in 2-12 days

0

1237

Briggs & Stratton 841290

Cap/Hose-Reserve
(Superseded to 842112)

$55.99

$

Usually ships in 2-12 days

0

1309

Briggs & Stratton 842254

Pulley-Fan

$52.99

$

Usually ships in 2-12 days

0

1310

Briggs & Stratton 809366

Shaft-Fan

$29.99

$

Usually ships in 2-12 days

0

1316

Briggs & Stratton 807382

Screw

Note: (Fan Shaft)

$3.49

$

Usually ships in 2-12 days

0

1340

Briggs & Stratton 809283

Impeller

$59.99

$

Usually ships in 2-12 days

0

1389

Briggs & Stratton 809423

Seal-Impeller

$48.99

$

Usually ships in 2-12 days

0

1393

Briggs & Stratton 842072

Kit-Pump Overhaul
(Superseded to 809423)

$48.99

$

Usually ships in 2-12 days

0

1394

Briggs & Stratton 807382

Screw

Note: (Impeller)

$3.49

$

Usually ships in 2-12 days

0

1415

Briggs & Stratton 842255

Bracket-Cooling Fan

$136.99

$

Usually ships in 2-12 days

0

1417

Briggs & Stratton 807390

Screw

Note: (Water Pump Case) (M6x60mm Long)

$3.99

$

Usually ships in 2-12 days

0

1417A

Briggs & Stratton 807389

Screw

Note: (Water Pump Case) (M6x45mm Long)

$3.99

$

Usually ships in 2-12 days

0

1418

Briggs & Stratton 807387

Gasket-Water Pump Case

$13.99

$

Usually ships in 2-12 days

0
