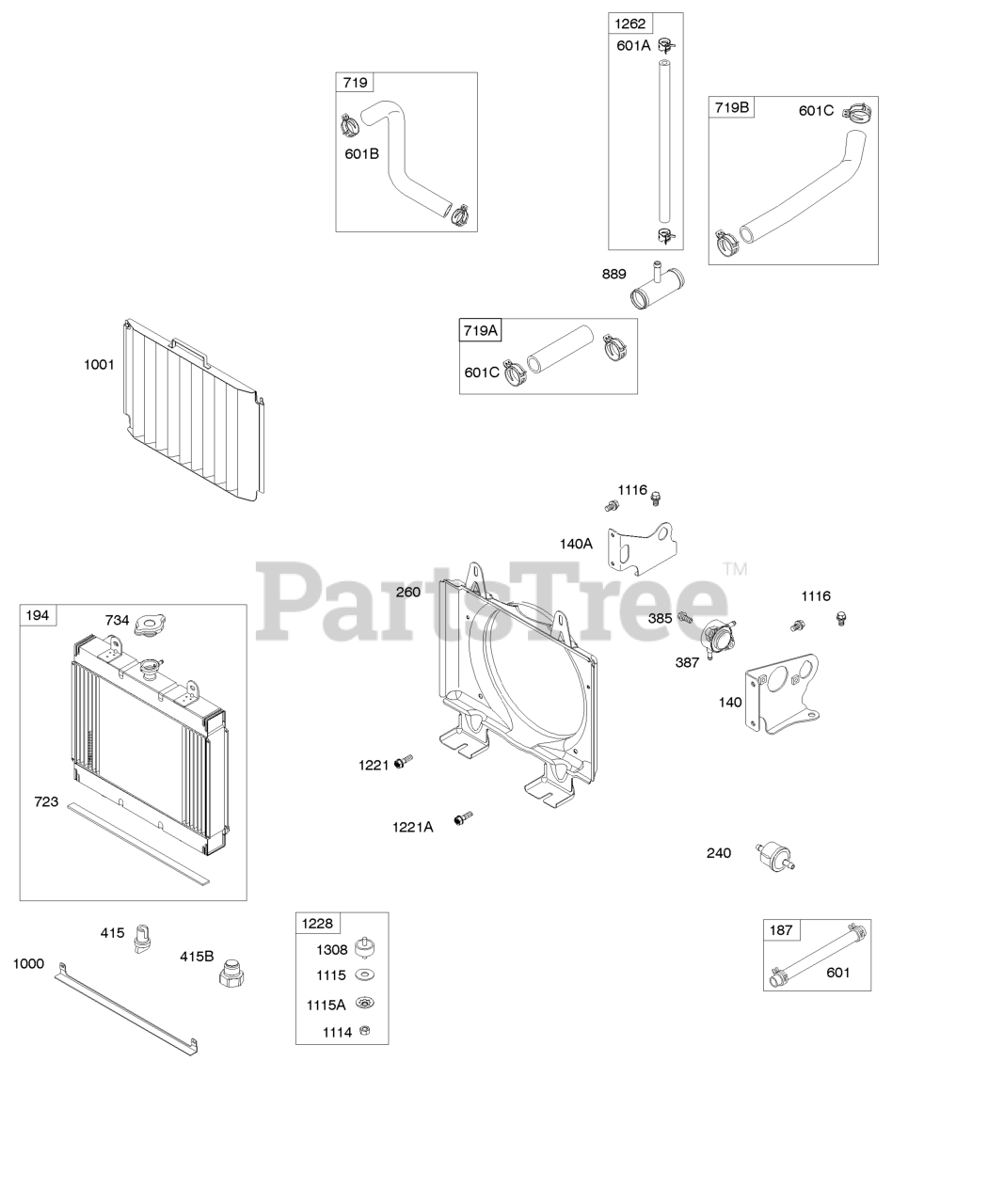

472177-0100-E1 - Briggs & Stratton Horizontal Engine Radiator, Hoses, Fuel Pump Parts Diagram

Horizontal Engine

Radiator, Hoses, Fuel Pump Parts Diagram

  • Title

140

Briggs & Stratton 809401

Bracket-Radiator

Note: (Left)

$20.99

$

Usually ships in 2-12 days

0

140A

Briggs & Stratton 809402

Bracket-Radiator
(Superseded to 842113)

Note: (Right)

$211.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 809322

Line-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

194

Briggs & Stratton 809405

Radiator
(Superseded to 844273)

$931.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

260

Briggs & Stratton 841718

Shroud-Fan

$242.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 693169

Screw
(Superseded to 807084)

Note: (Fuel Pump)

$3.49

$

In Stock, only 3 left!

0

387

Briggs & Stratton 807429

Pump-Fuel
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

415

Briggs & Stratton 809404

Plug
(Superseded to 843567)

Note: (Radiator Drain) Used Before Code Date 04081200

$27.99

$

Usually ships in 2-12 days

0

415B

Briggs & Stratton 843567

Plug

Note: (Radiator Drain) Used After Code Date 04081100

$27.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Fuel Pump)

$3.99

$

In Stock, Qty 17

0

601A

Briggs & Stratton 807422

Clamp-Hose

Note: (15mm ID)

$4.49

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 807353

Clamp-Hose

Note: (30mm ID)

$5.99

$

Usually ships in 2-12 days

0

601C

Briggs & Stratton 807354

Clamp-Hose

Note: (32mm ID)

$5.99

$

Usually ships in 2-12 days

0

719

Briggs & Stratton 807425

Hose-Radiator

Note: (Formed Hose)

$26.99

$

Usually ships in 2-12 days

0

719A

Briggs & Stratton 841286

Hose-Radiator

Note: (Formed Hose)

$28.99

$

Usually ships in 2-12 days

0

719B

Briggs & Stratton 809410

Hose-Radiator

Note: (Formed Hose)

$9.99

$

Usually ships in 2-12 days

0

723

Briggs & Stratton 841563

Seal-Foam

$9.49

$

Usually ships in 2-12 days

0

734

Briggs & Stratton 809403

Cap-Radiator

$45.99

$

Usually ships in 2-12 days

0

889

Briggs & Stratton 807339

Tee

$21.99

$

Usually ships in 2-12 days

0

1000

Briggs & Stratton 809406

Guard-Radiator

$90.99

$

Usually ships in 2-12 days

0

1001

Briggs & Stratton 809399

Screen-Radiator

$211.99

$

Usually ships in 2-12 days

0

1114

Briggs & Stratton 691105

Nut

Note: (Radiator Support)

$7.99

$

In Stock, only 1 left!

0

1115

Briggs & Stratton 809408

Washer

Note: (Radiator Support)

$3.49

$

Usually ships in 2-12 days

0

1115A

Briggs & Stratton 809417

Washer

Note: (Radiator Support)

$4.49

$

Usually ships in 2-12 days

0

1116

Briggs & Stratton 841233

SCREW

Note: (Radiator Bracket)

$3.49

$

In Stock, Qty 20+

0

1221

Briggs & Stratton 692062

Screw

Note: (Fan Shroud) (M8X18mm Long)

$3.49

$

In Stock, Qty 20+

0

1221A

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Fan Shroud) (M6x10mm Long)

$3.49

$

In Stock, Qty 20+

0

1228

Briggs & Stratton 809851

Mount-Radiator

$14.99

$

Usually ships in 2-12 days

0

1262

Briggs & Stratton 807423

Line-Water

$18.99

$

Usually ships in 2-12 days

0

1308

Briggs & Stratton 809407

Isolator

$10.99

$

Usually ships in 2-12 days
