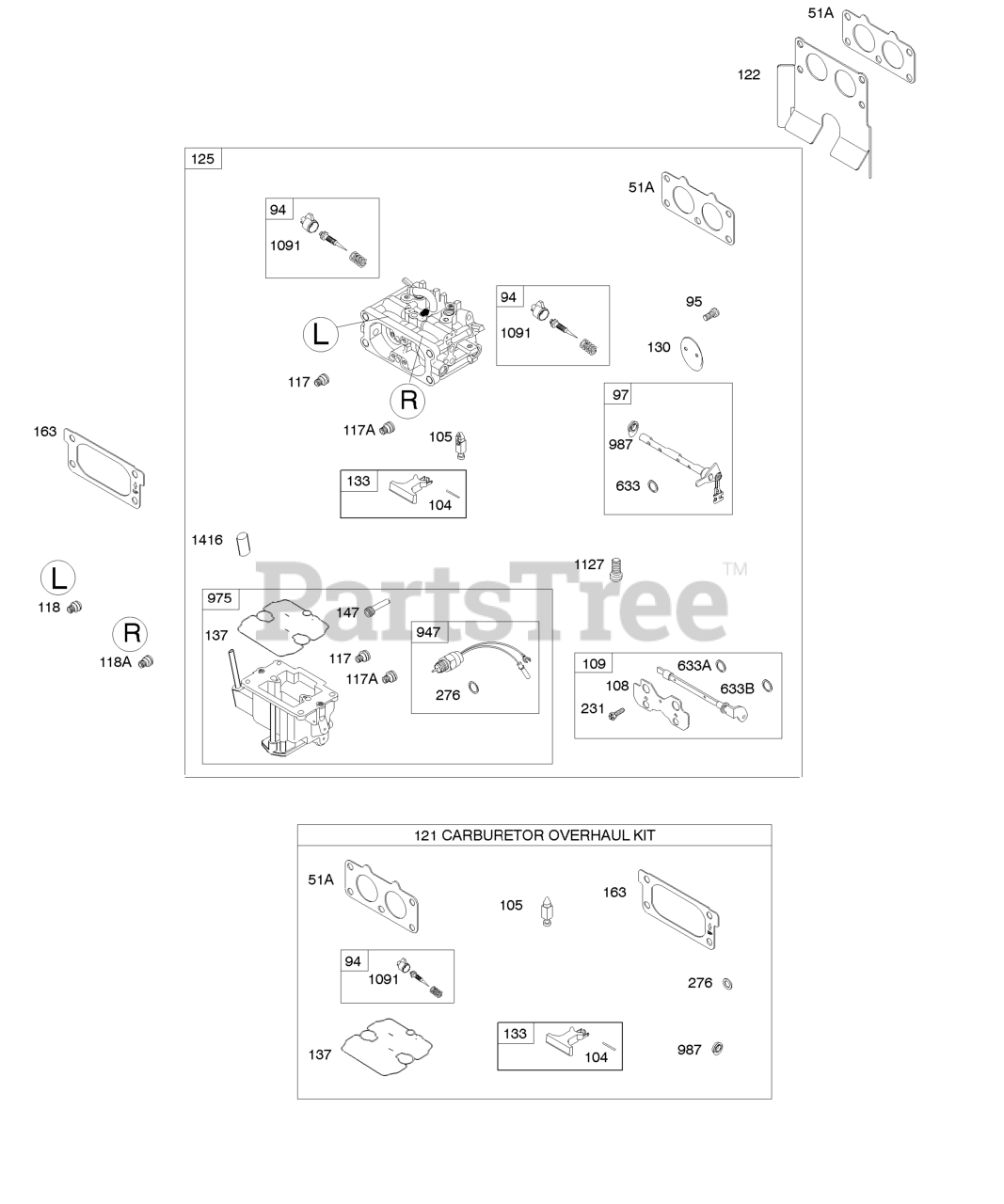

472177-0100-E1 - Briggs & Stratton Horizontal Engine Carburetor, Carburetor Overhaul Kit Parts Diagram

Horizontal Engine

Carburetor, Carburetor Overhaul Kit Parts Diagram

  • Title

51A

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 20+

0

94

Briggs & Stratton 843295

Kit-Idle Mixture

$43.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690728

Screw
(Superseded to 690718)

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 809630

Shaft-Throttle

$51.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

Pin-Float Hinge

$6.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 809759

Valve-Float Needle

$

$

Not available

108

Briggs & Stratton 809643

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 809802

Shaft-Choke

$31.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 809635

Jet-Main

Note: (Standard) (Left Jet)

$29.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 809634

Jet-Main

Note: (Standard) (Right Jet)

$29.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 809649

Jet-Main

Note: (High Altitude) (Left Jet) (5000 Feet)

$23.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 809635

Jet-Main

Note: (High Altitude) (Right Jet) (5000 Feet)

$29.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 809852

Kit-Carb Overhaul
(Superseded to 843296)

$171.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 807433

Spacer-Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 809647

Carburetor

$411.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 809642

Valve-Throttle

$21.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 809637

Float-Carburetor

$36.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 809645

Gasket-Float Bowl

$9.99

$

In Stock, Qty 14

0

147

Briggs & Stratton 841920

Jet-Pilot

$24.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690728

Screw
(Superseded to 690718)

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 806476

Washer-Sealing

Note: (Fuel Solenoid)

$6.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 809641

Seal-Choke/Thr Shaft

Note: (Throttle Shaft)

$6.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 809638

Seal-Choke/Thr Shaft

Note: (Choke Shaft)

$7.49

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 809644

Seal-Choke/Thr Shaft

Note: (Choke Shaft)

$8.49

$

In Stock, only 1 left!

0

947

Briggs & Stratton 809632

Solenoid-Fuel

$166.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 809650

Bowl-Float

$108.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

Seal-Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

Cap-Limiter

$8.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

Screw

Note: (Float Bowl to Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

1416

Briggs & Stratton 809640

Cap-Carburetor

$10.99

$

Usually ships in 2-12 days

0
