47-183-00 (128-560B036) - Long Life Walk-Behind Mower (1988) (Otasco) Parts Parts Diagram

Walk-Behind Mower

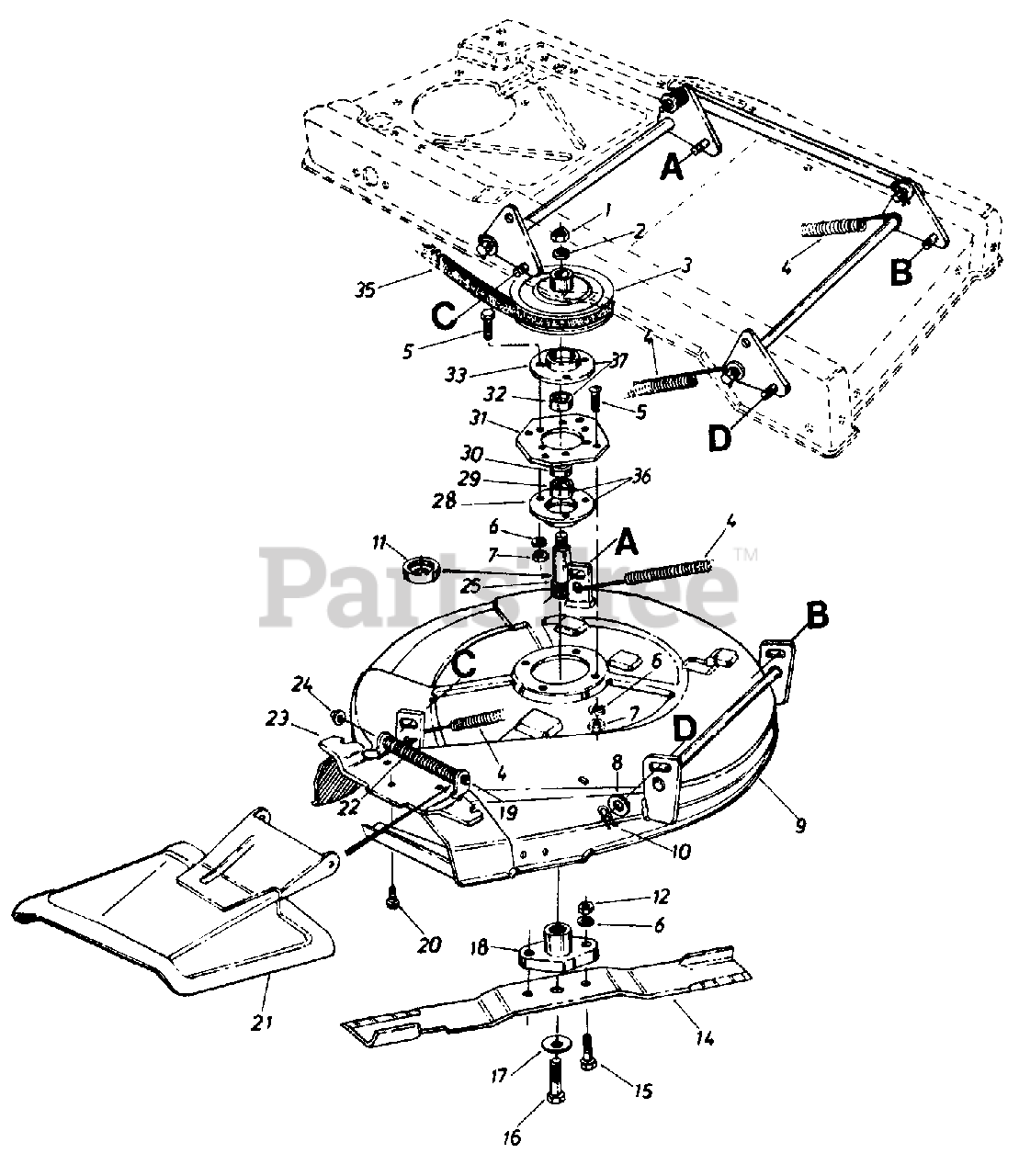

Parts Parts Diagram

  • Title

1

MTD 712-0318

Hex Jam Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 11

0

2

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25n O.D.

$7.99

$

In Stock, Qty 20+

0

3

MTD 756-0484

518'1 "V"-Pulley .751' I.D. x 9.51' ??

$

$

Currently unavailable

4

MTD 732-0529

Extension Spring .56" O.D. x 1 0.5

$

$

Not available

5

MTD 710-0118

Hex Bolt 5/16-18 x .75 Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0272

Fl-Wash. .510n I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

9

MTD 16499

26" Deck Ass'y.

$

$

Currently unavailable

10

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

11

MTD 13703

Bearing Shield

$

$

Not available

12

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

14

MTD 742-0147

Blade 26"
(Superseded to 942-0147)

$

$

Not available

15

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0152

Hex Bolt 3/8-24 x l.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0356

Bell-Wash. .391" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

18

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

19

MTD 711-0571

Hinge Pin

$

$

Not available

20

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

MTD 11571

Chute Cover Ass'y.

$

$

Not available

22

MTD 732-0261

Torsion Spring

$

$

Not available

23

MTD 11396

Adapter Plate

$

$

Not available

24

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

25

MTD 738-0578

Blade Spindle 4.42" Lg.

$

$

Not available

28

MTD 08253

Bearing Housing 1.85
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

29

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

30

MTD 750-0456

Spacer 1.0" O.D. x .790" I.D. x 850n Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 16490

Spindle Mounting Plate

$

$

Not available

32

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

33

MTD 15296

Open Brg. Housing 1.85
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

35

MTD 754-0326

"V"-Belt
(Superseded to 954-0326)

$56.99

$

Usually ships in 3-6 days

0

36

MTD 741-0163

Brg. Hsg. Ass'y.
(Superseded to 741-0163A)

Note: (Incl. Ref. 28 & 29)

$48.99

$

Usually ships in 3-6 days

0

37

MTD 15297

Brg. Hsg. Ass'y.
(Superseded to 15297A)

Note: (Incl. Ref. 32 & 33)

$69.99

$

Usually ships in 3-6 days

0
