46906x199A - Briggs & Stratton 46" Lawn Tractor (1996) (AAFES) Chassis & Hood Parts Diagram

46" Lawn Tractor

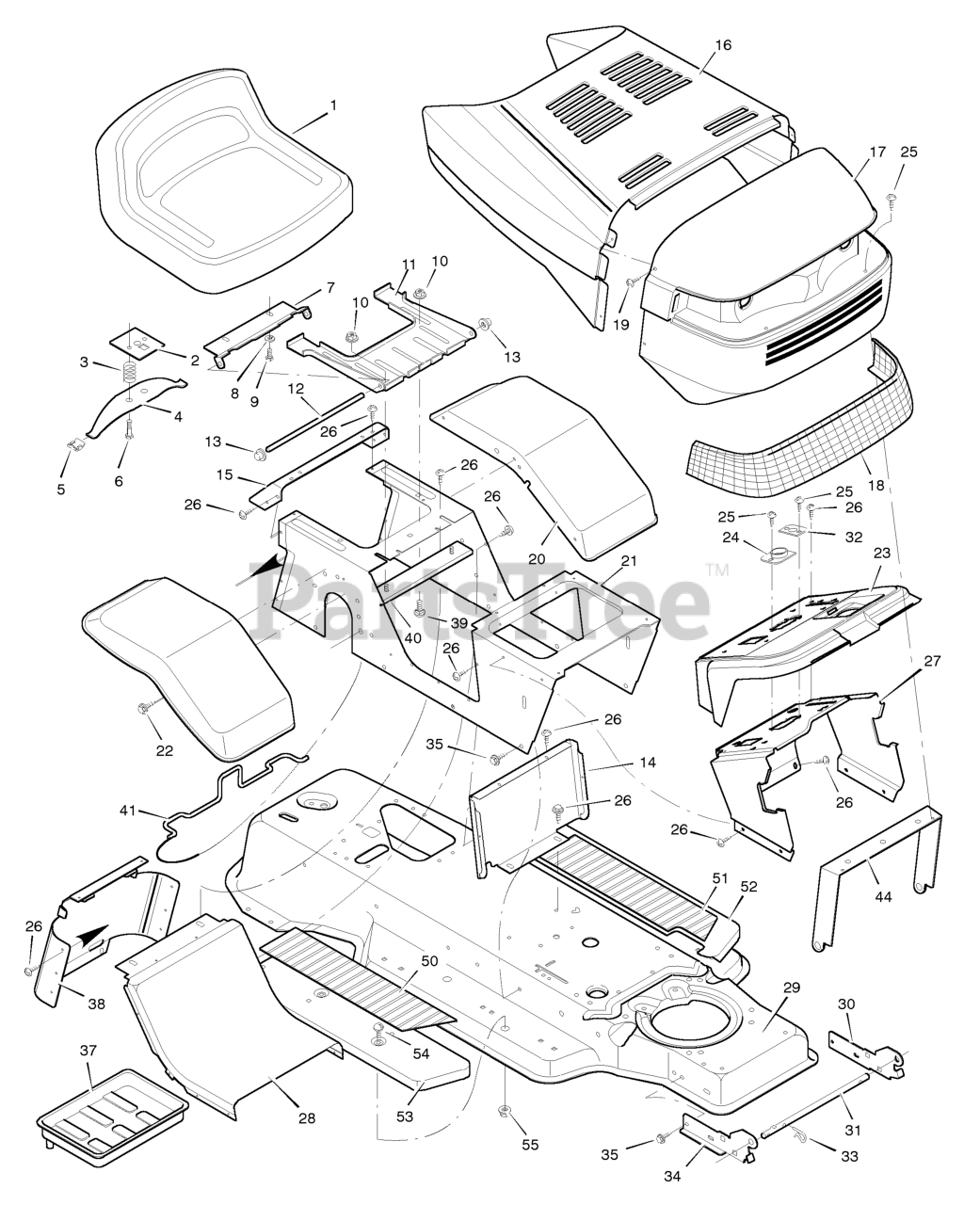

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 92334E701

Support, Seat

$76.99

$

Usually ships in 2-12 days

0

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

11

Murray 092546E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 91730E701

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 092548E540

Insert, Front

$

$

Currently unavailable

15

Murray 91724E701

Fender, Apron

$

$

Currently unavailable

$

$

Currently unavailable

17

Murray 093149MA

Grille Assembly

Note: (includes Lens)

$253.99

$

Usually ships in 2-12 days

0

18

$95.99

$

Usually ships in 2-12 days

0

19

$4.49

$

Usually ships in 2-12 days

0

20

$37.99

$

Usually ships in 2-12 days

0

21

Murray 092729E540

Console Assembly

$

$

Currently unavailable

22

$4.99

$

In Stock, only 1 left!

0

23

Murray 093134

Dash Panel

$

$

Currently unavailable

24

Murray 093135MA

Bearing, Steering

$2.49

$

Usually ships in 2-12 days

0

25

$4.49

$

In Stock, only 2 left!

0

26

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

27

Murray 93136E701

Support, Dash

$

$

Currently unavailable

28

Murray 92549E540

Insert, Rear

$

$

Currently unavailable

29

Murray 092815E540

Frame Assembly

$

$

Currently unavailable

30

Murray 092347E701MA

Bracket, Left Grille

$8.49

$

Usually ships in 2-12 days

0

31

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

32

Murray 093155

Bearing

$

$

Currently unavailable

33

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Murray 92346E701

Bracket, Right Grille

$

$

Currently unavailable

35

$

$

Not available

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443E540

Cap, Console

$

$

Currently unavailable

39

$4.49

$

In Stock, only 1 left!

0

40

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

41

Murray 092725 Z

Clamp, Battery

$

$

Currently unavailable

44

Murray 93190 Z

Brace, Grille

$

$

Currently unavailable

50

Murray 092650

Mat, Right

$

$

Currently unavailable

51

Murray 092649

Mat, Left

$

$

Currently unavailable

52

Murray 92589E540

Running Board, Left

$

$

Currently unavailable

53

Murray 92588E540

Running Board, Right

$

$

Currently unavailable

54

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

55

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Murray F-96721

Book, Instruction (English)

$

$

Currently unavailable

--

Murray F-96737

Repair Parts Book

$

$

Currently unavailable

--

Murray 44X4029

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X4028

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X6057

Decal, Left Console

$

$

Currently unavailable

--

Murray 44X6058

Decal, Right Console

$

$

Currently unavailable

--

Murray 44X4248

Decal, Warning

$2.49

$

Usually ships in 2-12 days

0

--

Murray 280X63

Plaque, Name (Hood)

$

$

Currently unavailable
