468602x68A - Murray 46" Lawn Tractor (2005) Steering Parts Diagram

46" Lawn Tractor

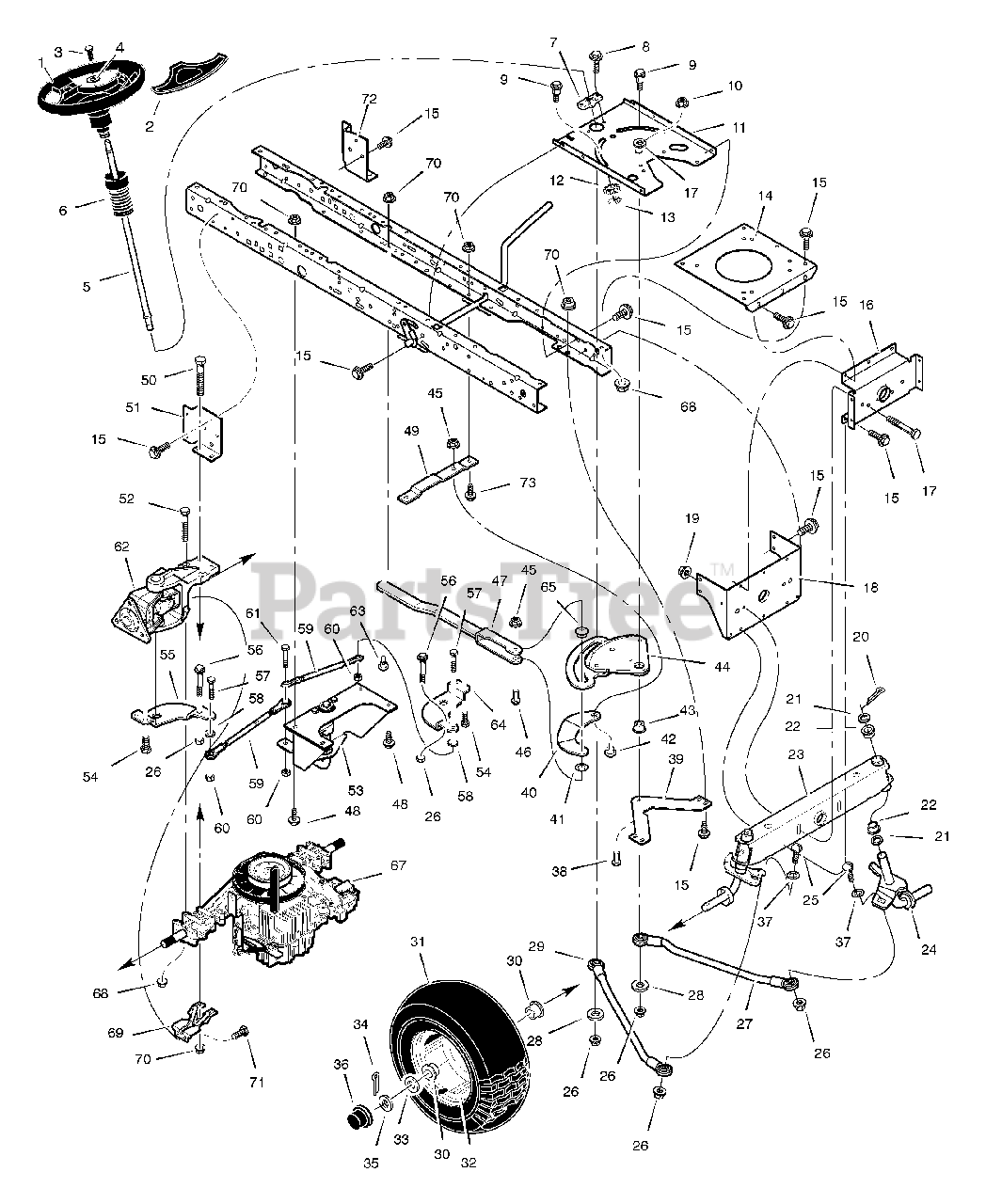

Steering Parts Diagram

  • Title

1

Murray 1001981

Wheel, Steering
(Superseded to 1001981MA)

$146.99

$

Usually ships in 2-12 days

0

2

Murray 1001982MA

Cover, Steering Wheel

$24.99

$

In Stock, only 1 left!

0

3

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

4

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

5

Murray 690625

Shaft, Steering

$49.99

$

In Stock, only 1 left!

0

6

Murray 092059MA

Cover

$9.49

$

Usually ships in 2-12 days

0

7

Murray 094124MA

Bearing, Lower Steering

$14.99

$

In Stock, only 1 left!

0

8

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

9

Murray 009X62MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

10

Murray 15X111MA

Nut, Flanged Lock

$4.49

$

Usually ships in 2-12 days

0

11

Murray 1001121E701MA

Plate, Steering
(Superseded to 7300867ZMA)

$

$

Not available

12

Murray 1001893

Gear, Pinion
(Superseded to 690183MA)

$

$

Not available

13

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

14

Murray 094006E701MA

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 094007E701MA

Hanger, Axle

$32.99

$

Usually ships in 2-12 days

0

17

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

18

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

19

Murray 15X118MA

Nut, Flanged Lock

$4.49

$

Usually ships in 2-12 days

0

20

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

21

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

22

Murray 690150MA

Bearing, Steering

$8.99

$

In Stock, only 2 left!

0

23

Murray 1001460E701MA

Axle, Front

$108.99

$

Usually ships in 2-12 days

0

24

Murray 1001173E701MA

Spindle Assembly, Left

$271.99

$

In Stock, only 1 left!

0

--

Murray 1001175E701MA

Spindle Assembly, Right
(Superseded to 721440BMYP)

$228.99

$

In Stock, only 1 left!

0

25

Murray 002X96MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

26

Murray 015X84MA

Nut, Flanged Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

Murray 1001177E701MA

Link, Left Drag

$91.99

$

Usually ships in 2-12 days

0

28

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

29

Murray 1001178E701MA

Link, Right Drag

$85.99

$

Usually ships in 2-12 days

0

30

Murray 091334

Bearing, Front Wheel

$

$

Not available

31

Murray 024380

Tire ONLY *

$

$

Not available

--

Murray 407924

Tube ONLY

$

$

Not available

32

Murray 094583-804

Wheel and Tire Assembly

$

$

Currently unavailable

33

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

34

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

35

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 15

0

36

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0

37

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

38

Murray 001X75MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

39

Murray 1002014E701

Support, Sector Gear

$

$

Currently unavailable

40

Murray 1001886E701

Follower, Cam

$48.99

$

Usually ships in 2-12 days

0

41

Murray 17X175MA

Washer

$3.49

$

Usually ships in 2-12 days

0

42

Murray 009X81

Bolt, Shoulder
(Superseded to 009X81MA)

$8.49

$

Usually ships in 2-12 days

0

43

Murray 1001888

Bearing, Sector Gear
(Superseded to 1001888MA)

$9.49

$

Usually ships in 2-12 days

0

44

Murray 1001889

Sector Gear & Cam Assembly

$109.99

$

Usually ships in 2-12 days

0

45

Murray 015X87

Nut. Flanged Lock

$4.49

$

In Stock, only 1 left!

0

46

Murray 009X80MA

Bolt, Shoulder

$9.49

$

In Stock, only 2 left!

0

47

Murray 1001885E701

Link, Primary Drag

$85.99

$

Usually ships in 2-12 days

0

48

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

49

Murray 1001894E701

Member, Cam Cross

$55.99

$

Usually ships in 2-12 days

0

50

Murray 01X118MA

Bolt, Hex

$4.99

$

Usually ships in 2-12 days

0

51

Murray 1001891E701

Bracket, Right Transaxle
(Superseded to 1001891E701MA)

$40.99

$

Usually ships in 2-12 days

0

52

Murray 009X79

Bolt, Shoulder
(Superseded to 009X79MA)

$11.99

$

Usually ships in 2-12 days

0

53

Murray 1001950MA

Pivot Assembly, Rear

$376.99

$

Usually ships in 2-12 days

0

54

Murray 0025X6MA

Screw

$5.49

$

Usually ships in 2-12 days

0

55

Murray 304120E701

Arm, Right Rear
(Superseded to 728578BMYP)

$36.99

$

Usually ships in 2-12 days

0

56

Murray 009X82

Bolt, Shoulder
(Superseded to 009X82MA)

$8.49

$

Usually ships in 2-12 days

0

57

Murray 001X70

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

58

Murray 018X31MA

Washer, Split Lock

$4.49

$

Usually ships in 2-12 days

0

59

Murray 1001935

Rod Assembly, Tie

$

$

Not available

60

Murray 15X119

Nut, Lock

$3.49

$

Usually ships in 2-12 days

0

61

Murray 01X194

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

62

Murray 1001931MA

Steering Assembly, Rear

$

$

Not available

63

Murray 009X81

Bolt, Shoulder
(Superseded to 009X81MA)

$8.49

$

Usually ships in 2-12 days

0

64

Murray 304121E701

Arm, Left Rear
(Superseded to 728579BMYP)

$36.99

$

Usually ships in 2-12 days

0

65

Murray 1001882MA

Bushing, Cam

$7.99

$

In Stock, only 1 left!

0

67

Transaxle

$

$

Not available

68

Murray 015X88MA

Nut, Flanged Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

69

Murray 1001944E701

Bracket, Transaxle Support

$23.99

$

Usually ships in 2-12 days

0

71

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

72

Murray 1001890E701

Bracket, Left Transaxle
(Superseded to 1001890E701MA)

$40.99

$

Usually ships in 2-12 days

0

73

Murray 025X22

Screw
(Superseded to 025X22MA)

$3.99

$

Usually ships in 2-12 days

0
