468602x68A - Murray 46" Lawn Tractor (2005) Engine Mount Assembly Parts Diagram

46" Lawn Tractor

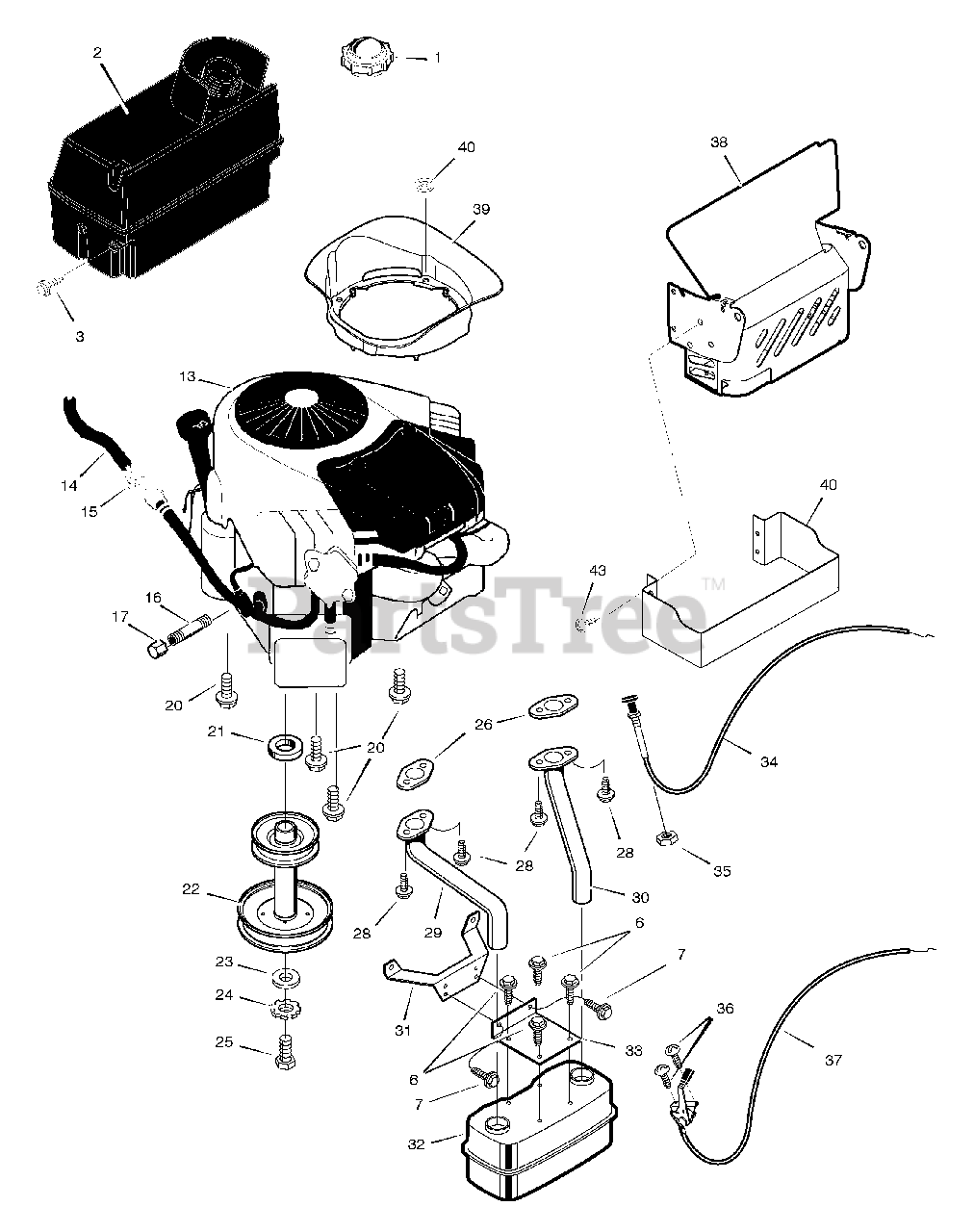

Engine Mount Assembly Parts Diagram

  • Title
1

Murray 092317MA

Cap, Fuel

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 7

0

2

Murray 690289MA

Tank, Fuel
(Superseded to 7601093MA)

$170.99

$

In Stock, only 3 left!

0

3

$4.49

$

In Stock, only 1 left!

0

6

$4.49

$

In Stock, only 1 left!

0

7

$4.99

$

In Stock, only 1 left!

0

13

Engine, Briggs & Stratton *

$

$

Not available

14

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

15

Murray 095197MA

Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

16

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

17

Murray 021651 Z

Cap, Oil Drain

$

$

Currently unavailable

20

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

$15.99

$

In Stock, only 1 left!

0

22

Murray 690507MA

Pulley, Stack

$110.99

$

Usually ships in 2-12 days

0

23

$

$

Not available

24

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

25

$5.49

$

In Stock, Qty 15

0

26

$4.49

$

Usually ships in 2-12 days

0

28

$6.49

$

Usually ships in 2-12 days

0

29

Murray 690541MA

Tube, Right Exhaust

$54.99

$

Usually ships in 2-12 days

0

30

Murray 690542MA

Tube, Left Exhaust

$54.99

$

Usually ships in 2-12 days

0

31

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

32

Murray 093259MA

Muffler

$96.99

$

Usually ships in 2-12 days

0

33

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

34

$3.99

$

In Stock, only 1 left!

0

35

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

$4.49

$

In Stock, only 2 left!

0

37

Murray 093165MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

38

Murray 1001456-701

Shield Assembly, Heat

$

$

Currently unavailable

39

$77.99

$

Usually ships in 2-12 days

0

40

Murray 1001620E701MA

GUARD, Heat Shield

$68.99

$

Usually ships in 2-12 days

0

41

Murray 028X44

Speed Nut

$3.49

$

Usually ships in 2-12 days

0

43

$4.99

$

Usually ships in 2-12 days

0
