46580x8A - Murray 46" Lawn Tractor (1999) Frame Assembly (part 2) Parts Diagram

46" Lawn Tractor

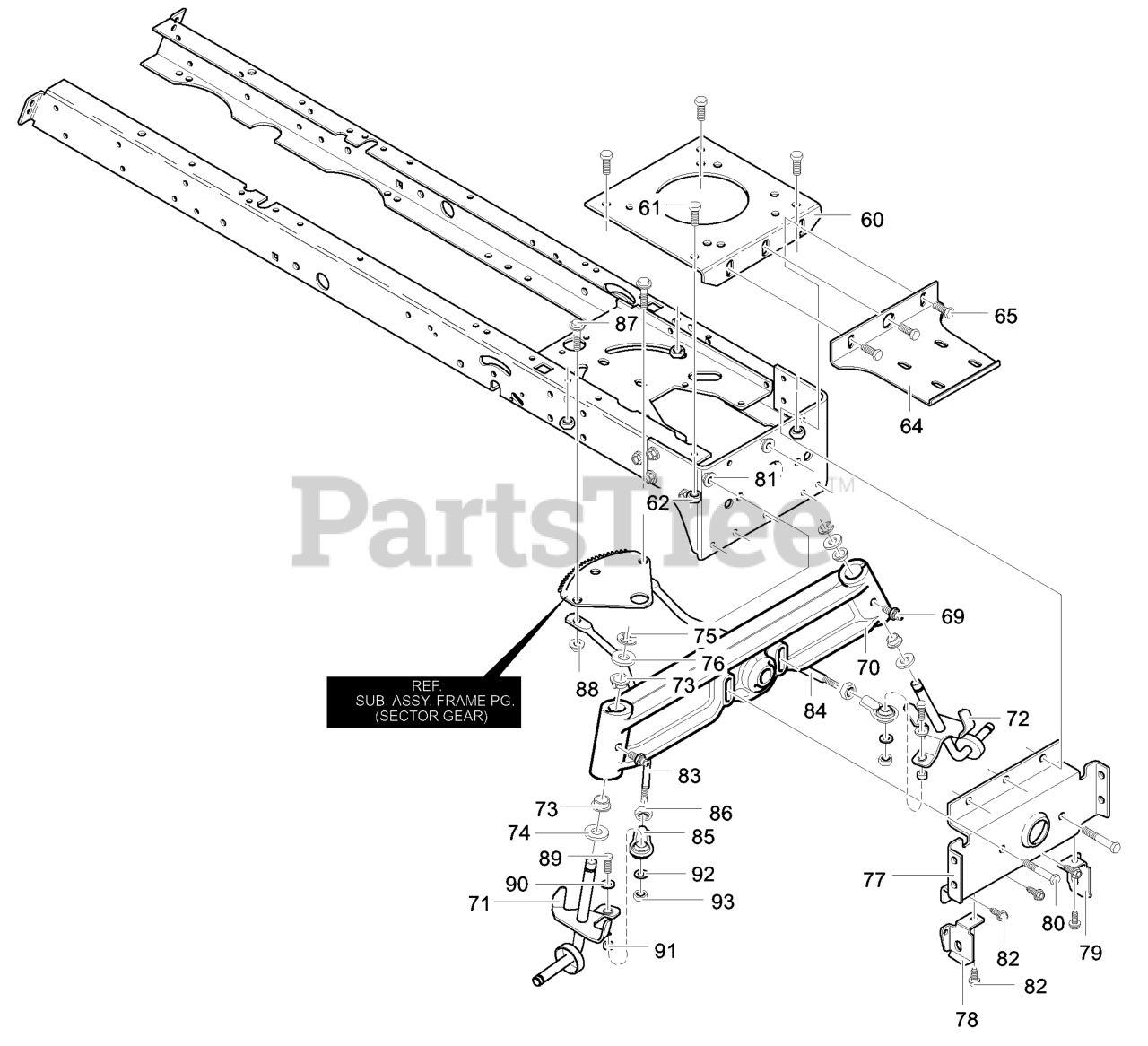

Frame Assembly (part 2) Parts Diagram

  • Title
60

Murray 94006

PLATE, ENGINE

$

$

Currently unavailable

61

Murray 26X249MA

SCREW 5/16-18X.75

$

$

Not available

62

Murray 015X88MA

NUT, CENTERLOCK
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

64

Murray 094307

BRACKET, MUFFLER

$

$

Currently unavailable

65

Murray 26X249MA

SCREW 5/16-18X.75

$

$

Not available

69

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

70

Murray 690232

AXLE, CAST IRON GT

$24.99

$

In Stock, only 2 left!

0

71

Murray 94732

SPINDLE, RIGHT
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

72

Murray 94733

SPINDLE, LEFT
(Superseded to 691690)

$

$

Not available

73

Murray 690150MA

BEARING, SPINDLE

$8.99

$

In Stock, only 2 left!

0

74

$3.99

$

In Stock, only 2 left!

0

75

$5.49

$

In Stock, Qty 17

0

76

Murray 17X195MA

WASHER, FLAT

$4.99

$

In Stock, Qty 5

0

77

Murray 94007

HANGER, AXLE

$

$

Currently unavailable

78

Murray 94026

HANGER DECK RH
(Superseded to 93920)

$3.49

$

Usually ships in 2-12 days

0

79

Murray 94027

HANGER DECK LH

$

$

Currently unavailable

80

Murray 01X146MA

SCREW 5/16-24X2.75

$3.99

$

Usually ships in 2-12 days

0

81

Murray 15X118MA

NUT, FLANGELOCK

$4.49

$

Usually ships in 2-12 days

0

82

Murray 26X249MA

SCREW 5/16-18X.75

$

$

Not available

83

Murray 94767

ROD, RIGHT DRAG LINK

$

$

Currently unavailable

84

Murray 094768

ROD, LEFT DRAG LINK

$

$

Currently unavailable

85

Murray 094766MA

TIE ROD END

$

$

Not available

86

Murray 7058

NUT, JAM

$1.99

$

Usually ships in 2-12 days

0

87

$9.99

$

In Stock, Qty 11

0

88

Murray 015X84MA

NUT, CENTERLOCK
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

89

$

$

Currently unavailable

90

Murray 711672

WASHER, FLAT

$

$

Currently unavailable

91

Murray 319618MA

SPACER,

$25.99

$

Usually ships in 2-12 days

0

92

Murray 301188MA

WASHER, FLAT

$2.99

$

Usually ships in 2-12 days

0

93

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0
