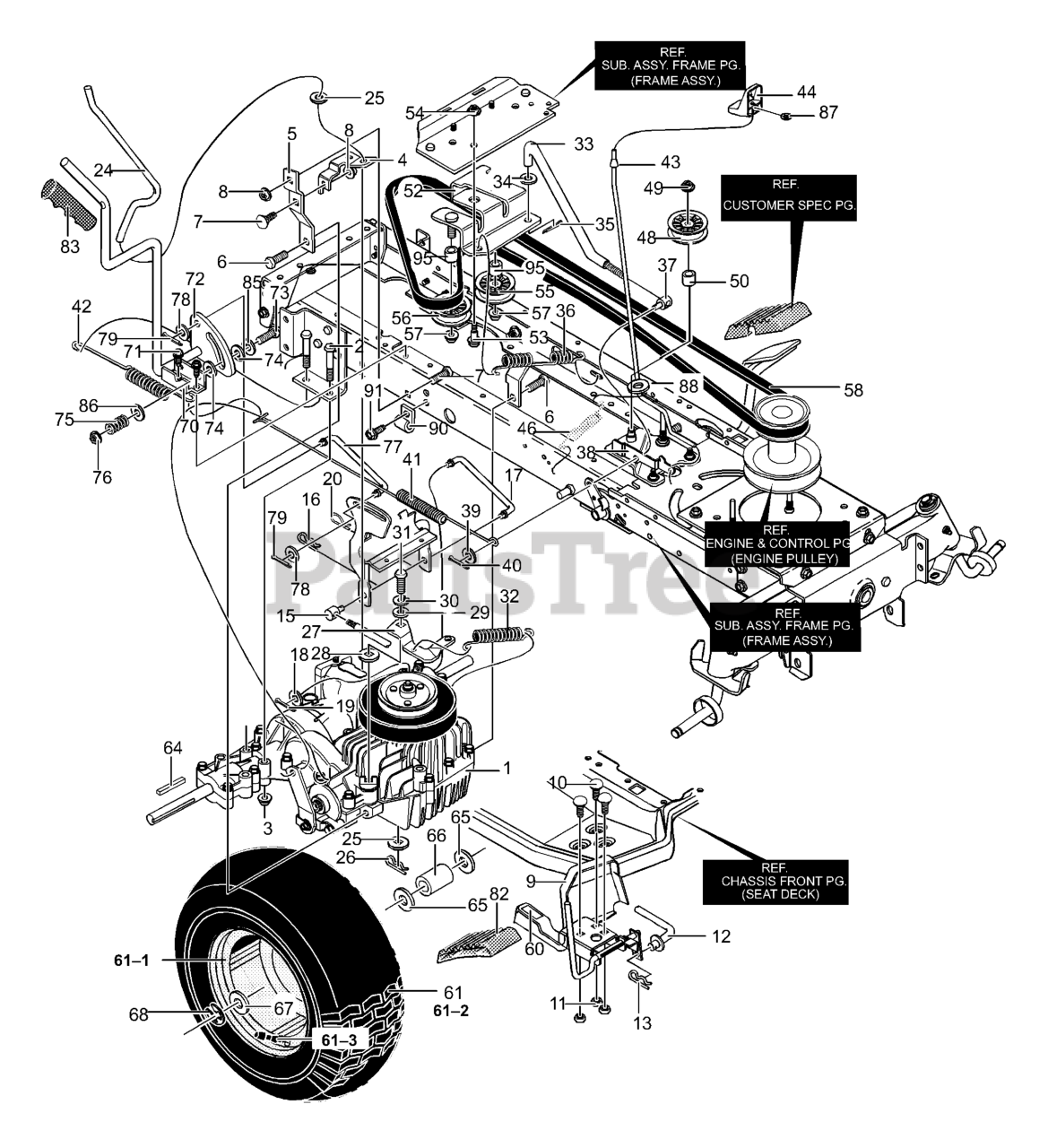

46580x89A - Yard King 46" Lawn Tractor (2000) Motion Drive Parts Diagram

46" Lawn Tractor

Motion Drive Parts Diagram

  • Title

1

Murray 94800

Transaxle, Peerless **

Note: (VST205)

$

$

Currently unavailable

2

Murray 711669

SCREW, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94429-821

BRACKET, DISCONNECT

$

$

Currently unavailable

5

Murray 94432-821

TORQUE STRAP -RIGHT

$

$

Currently unavailable

6

Murray 710268

SCREW, 5/16-18 x 0.75

$12.99

$

In Stock, only 2 left!

0

7

Murray 711661

BOLT, CARRIAGE 5/16-18X .63

$

$

Not available

8

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

9

Murray 690013-821

WP, PEDAL ASSY HYDRO

$

$

Currently unavailable

10

Murray 711688MA

BOLT, 5/16-18X .75

$3.49

$

Usually ships in 2-12 days

0

11

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

12

Murray 95278

ROD, PEDAL LINK

$11.99

$

Usually ships in 2-12 days

0

13

Murray 711676

PIN, HAIR

$

$

Currently unavailable

15

Murray 711594

ADJUST NUT 1/2-13

$2.99

$

Usually ships in 2-12 days

0

16

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 95279

ROD HYDRO LINK

$10.99

$

Usually ships in 2-12 days

0

18

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

19

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711676

PIN, HAIR

$

$

Currently unavailable

24

Murray 95298

ROD, DISCONNECT

$

$

Currently unavailable

25

Murray 711644MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

26

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

27

Murray 95299

ARM, DISCONNECT

$

$

Not available

28

Murray 17X148MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

29

Murray 710657

WASHER, FLAT

$65.99

$

Usually ships in 2-12 days

0

30

Murray 710249

WASHER

$

$

Currently unavailable

31

Murray 01X145MA

SCREW, 1/4-28 X.75

$4.49

$

Usually ships in 2-12 days

0

32

Murray 710330

SPRING, EXTENSION
(Superseded to 710329)

$11.99

$

In Stock, only 1 left!

0

33

Murray 95297

ROD, CLUTCH

$8.99

$

Usually ships in 2-12 days

0

34

Murray 711644MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

35

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

36

Murray 710707

SPRING, CLUTCH

$

$

Currently unavailable

37

Murray 711596

NUT, ADJUSTING

$

$

Currently unavailable

38

Murray 690048

LATCH, PARKING BRAKE

$

$

Not available

39

Murray 711623

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

41

Murray 710333

SPRING, EXTENSION

$67.99

$

Usually ships in 2-12 days

0

42

Murray 710353

SPRING, EXTENSION

$8.99

$

Usually ships in 2-12 days

0

43

Murray 095108

ROD- PARKING BRAKE

$

$

Currently unavailable

44

Murray 095315MA

PARKING BRAKE KNOB

$9.49

$

Usually ships in 2-12 days

0

46

Murray 165X107MA

SPRING - EXTENSION

$3.49

$

Usually ships in 2-12 days

0

48

Murray 690409MA

PULLEY, IDLER

$19.99

$

In Stock, Qty 13

0

49

Murray 711920MA

NUT

$4.49

$

Usually ships in 2-12 days

0

50

Murray 690369MA

SPACER 1/2 TO 17MM

$

$

Not available

52

Murray 95305

ASSEMBLY, BRACKET IDLER

$

$

Not available

53

Murray 711613MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

54

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

55

Murray 690409MA

PULLEY, IDLER

$19.99

$

In Stock, Qty 13

0

56

Murray 690410MA

PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

57

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

58

Murray 710531

BELT, MOTION DRIVE HYDRO

$

$

Not available

60

Murray 093249

PAD, TOE SANDPAPER

$3.49

$

Usually ships in 2-12 days

0

61

Murray 95196

TIRE & RIM 23X9.50-12

$

$

Not available

61-1

Murray 338512

VALVE STEM

$

$

Not available

61-2

Murray 343665

RIM

$231.99

$

Usually ships in 2-12 days

0

61-3

Murray 342117

TIRE

$152.99

$

Usually ships in 2-12 days

0

--

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

64

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

65

Murray 711648MA

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95274MA

SPACER

$46.99

$

Usually ships in 2-12 days

0

67

Murray 711758

WASHER, FLAT

$26.99

$

In Stock, only 1 left!

0

68

Murray 0011X3MA

RING-E

$5.49

$

In Stock, Qty 17

0

70

Murray 94793-821

BRACKET, HAND CONTROL

$

$

Not available

71

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

72

Murray 95306

LEVER, HAND CONTROL

$16.99

$

Usually ships in 2-12 days

0

73

Murray 711599

BOLT

$1.49

$

Usually ships in 2-12 days

0

74

Murray 314944

WASHER, FRICTION

$4.99

$

Usually ships in 2-12 days

0

75

Murray 335689

SPRING - COMPRESSION

$1.99

$

Usually ships in 2-12 days

0

76

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

77

Murray 690045

LINK, CRUISE CONTROL
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

78

Murray 711644MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

79

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

82

Murray 094516

PAD, SPEED CONTROL

$

$

Currently unavailable

83

Murray 94507

GRIP

$5.49

$

Usually ships in 2-12 days

0

85

Murray 711589

WASHER, FLAT

$335.99

$

Usually ships in 2-12 days

0

86

Murray 710083

WASHER, FLAT

$12.99

$

In Stock, only 2 left!

0

87

Murray 711691MA

PUSHNUT

$3.99

$

Usually ships in 2-12 days

0

88

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

90

Murray 711742

RETAINER WIRE

$18.99

$

Usually ships in 2-12 days

0

91

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

95

Murray 690369MA

SPACER 1/2 TO 17MM

$

$

Not available
