46580x89A - Yard King 46" Lawn Tractor (2000) Deck Assembly (part 3) Parts Diagram

46" Lawn Tractor

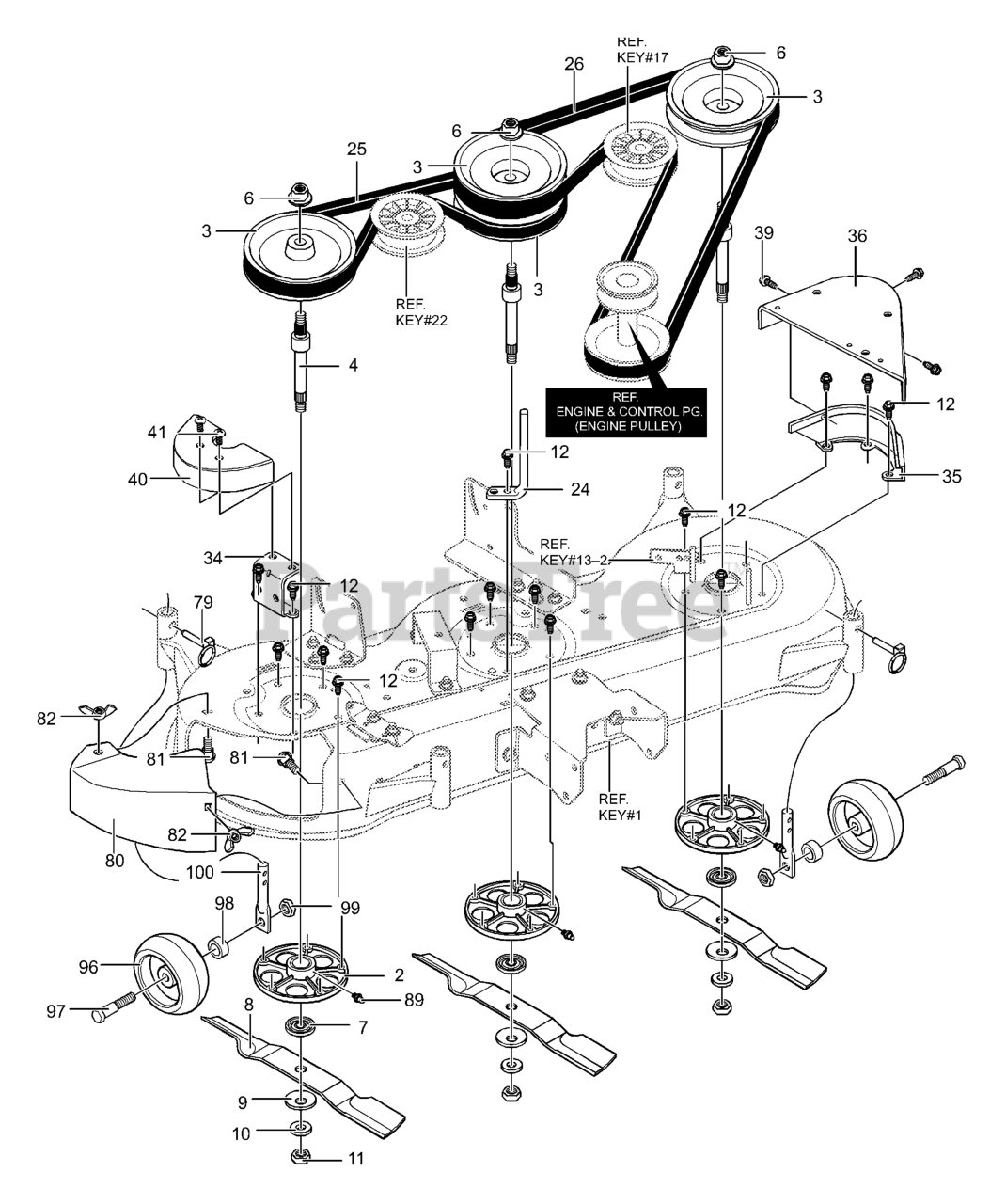

Deck Assembly (part 3) Parts Diagram

  • Title

2

Murray 690488MA

HOUSING, JACKSHAFT

$

$

Not available

3

Murray 95309MA

PULLEY

$

$

Not available

4

Murray 095402

JACKSHAFT

$

$

Not available

6

Murray 711626

NUT, 9/16-18

$

$

Currently unavailable

7

Murray 095416

HUB, BLADE ADAPTER

$23.99

$

In Stock, only 1 left!

0

8

Murray 656631

BLADE, MULCHING

$

$

Not available

9

Murray 17X166MA

WASHER

$13.99

$

In Stock, Qty 18

0

10

Murray 17X165MA

WASHER

$16.99

$

In Stock, only 4 left!

0

11

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 10

0

12

Murray 0025X7MA

BOLT-3/8 X 1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

24

Murray 95280

ROD, BELT GUIDE

$

$

Currently unavailable

25

Murray 710216

BELT, (37X66) 46" DECK

$14.99

$

Usually ships in 2-12 days

0

26

Murray 710217

BELT, (37X89) 46" DECK
(Superseded to 715589)

$14.99

$

Usually ships in 2-12 days

0

34

Murray 92140-821

BRACKET, PULLEY COVER

$

$

Currently unavailable

35

Murray 690221-821

BRACKET, PULLEY COVER

$

$

Currently unavailable

36

Murray 94645-821

COVER, LEFT PULLEY

$

$

Currently unavailable

39

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

40

Murray 94607-821

COVER, RIGHT PULLEY

$

$

Currently unavailable

41

Murray 711620

SCREW

$

$

Not available

79

Murray 711797MA

PIN, LYNCH

$

$

Not available

80

Murray 095086MA

PLATE, BLOCK OFF MULCH

$45.99

$

Usually ships in 2-12 days

0

81

Murray 711688MA

BOLT, 5/16-18X .75

$3.49

$

Usually ships in 2-12 days

0

82

Murray 711604

NUT, WING 5/16-18

$3.49

$

In Stock, Qty 5

0

89

Murray 690501MA

ZERK, GREASE

$5.49

$

Usually ships in 2-12 days

0

96

Murray 092265MA

WHEEL, GAUGE

$15.99

$

Usually ships in 2-12 days

0

97

Murray 711657MA

BOLT

$13.99

$

Usually ships in 2-12 days

0

98

Murray 95188MA

SPACER

$10.99

$

Usually ships in 2-12 days

0

99

Murray 590

NUT, JAM
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

100

Murray 95187-821

ROD, GAUGE

$

$

Currently unavailable
