46568x6A - Murray Ultra 46" Lawn Tractor (1998) Engine Mount Parts Diagram

Ultra 46" Lawn Tractor

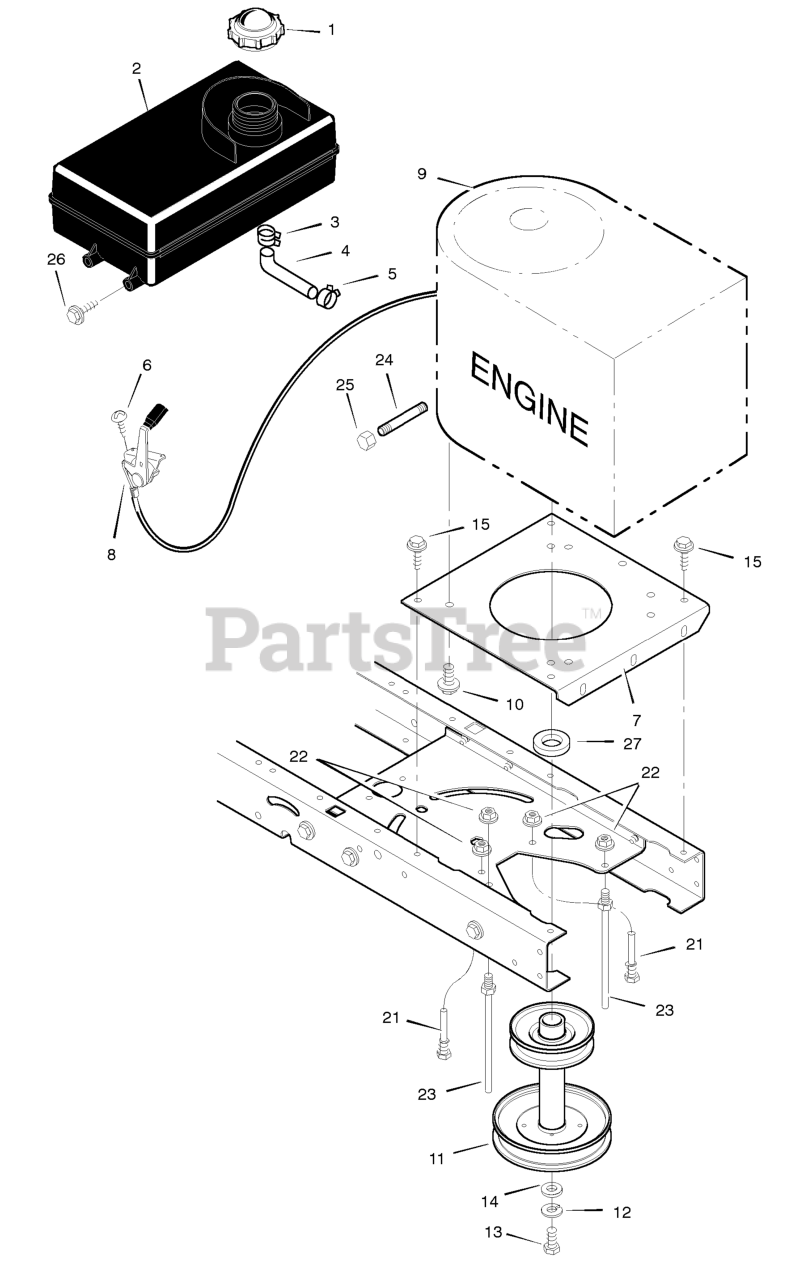

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 7

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 1 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023715

Fuel Line

$

$

Currently unavailable

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 091989

Throttle Control

$

$

Not available

9

Engine *

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 094593 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

21

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 91797

Guide, Belt
(Superseded to 7091797YP)

$7.49

$

Usually ships in 2-12 days

0

24

Murray 024066

Pipe, Oil Drain

$

$

Currently unavailable

25

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

26

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

27

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0
