46562x8B - Scotts 46" Lawn Tractor (1997) Mower Suspension Assembly Parts Diagram

46" Lawn Tractor

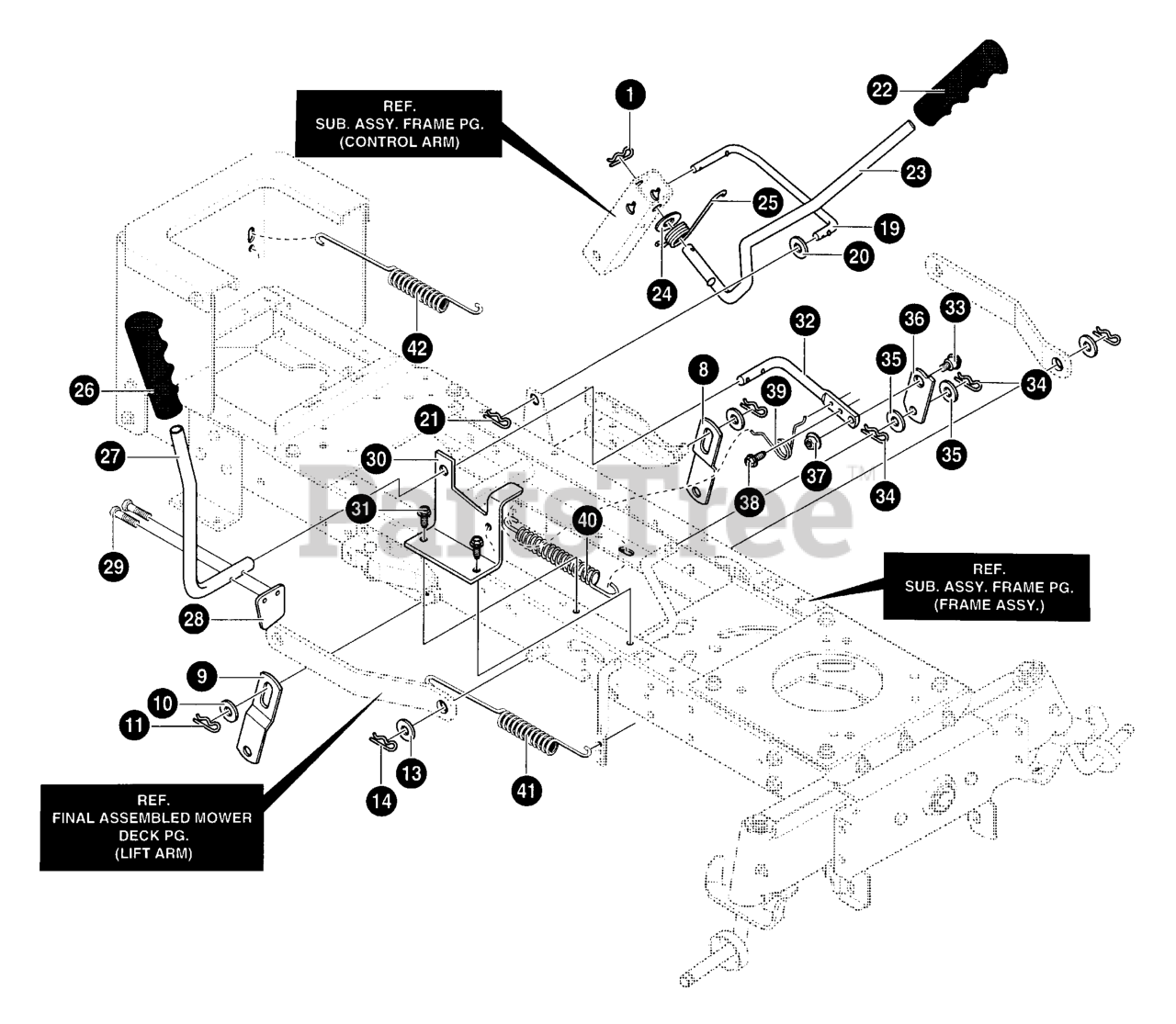

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray 0031X4MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 94858E717MA

LINK, LIFT LH

$43.99

$

Usually ships in 2-12 days

0

9

Murray 94857E717MA

LINK- LIFT

$43.99

$

Usually ships in 2-12 days

0

10

Murray 330517MA

FLATWASHER

$3.49

$

Usually ships in 2-12 days

0

11

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 330517MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

14

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 94028

LINK LIFT HANDLE

$

$

Not available

20

Murray 017X91MA

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

21

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 094497

GRIP, LIFT
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

23

Murray 94195

HANDLE, LIFT

$

$

Currently unavailable

24

Murray 17X103MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

25

Murray 165X40

TORSION SPRING

$

$

Currently unavailable

26

Murray 94496MA

Grip, PTO
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

27

Murray 94826

PTO LEVER

$68.99

$

Usually ships in 2-12 days

0

28

Murray 94022

PADDLE, SWITCH

$3.99

$

In Stock, only 3 left!

0

29

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

30

Murray 94018E717

BRACKET, PTO

$

$

Currently unavailable

31

Murray 710708

BOLT, 5/16- 18X.5

$1.99

$

Usually ships in 2-12 days

0

32

Murray 94017

LEVER, PTO

$64.99

$

Usually ships in 0 days

0

33

Murray 009X39MA

BOLT, .50X.75

$6.49

$

In Stock, Qty 6

0

34

Murray 36368MA

PIN, HAIR

$3.99

$

Usually ships in 2-12 days

0

35

Murray 017X57MA

WASHER, FLAT

$4.49

$

Usually ships in 2-12 days

0

36

Murray 94004

LINK PTO
(Superseded to 691263)

$

$

Not available

37

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

39

Murray 166X39MA

TORSION SPRING

$5.49

$

Usually ships in 2-12 days

0

40

Murray 165X117MA

SPRING, TENSION

$15.99

$

In Stock, only 1 left!

0

41

Murray 165X118MA

EXTENSION SPRING

$10.99

$

Usually ships in 2-12 days

0

42

Murray 165X125MA

EXTENSION SPRING

$16.99

$

In Stock, only 1 left!

0
