46562x8B - Scotts 46" Lawn Tractor (1997) Front Chassis Assembly Parts Diagram

46" Lawn Tractor

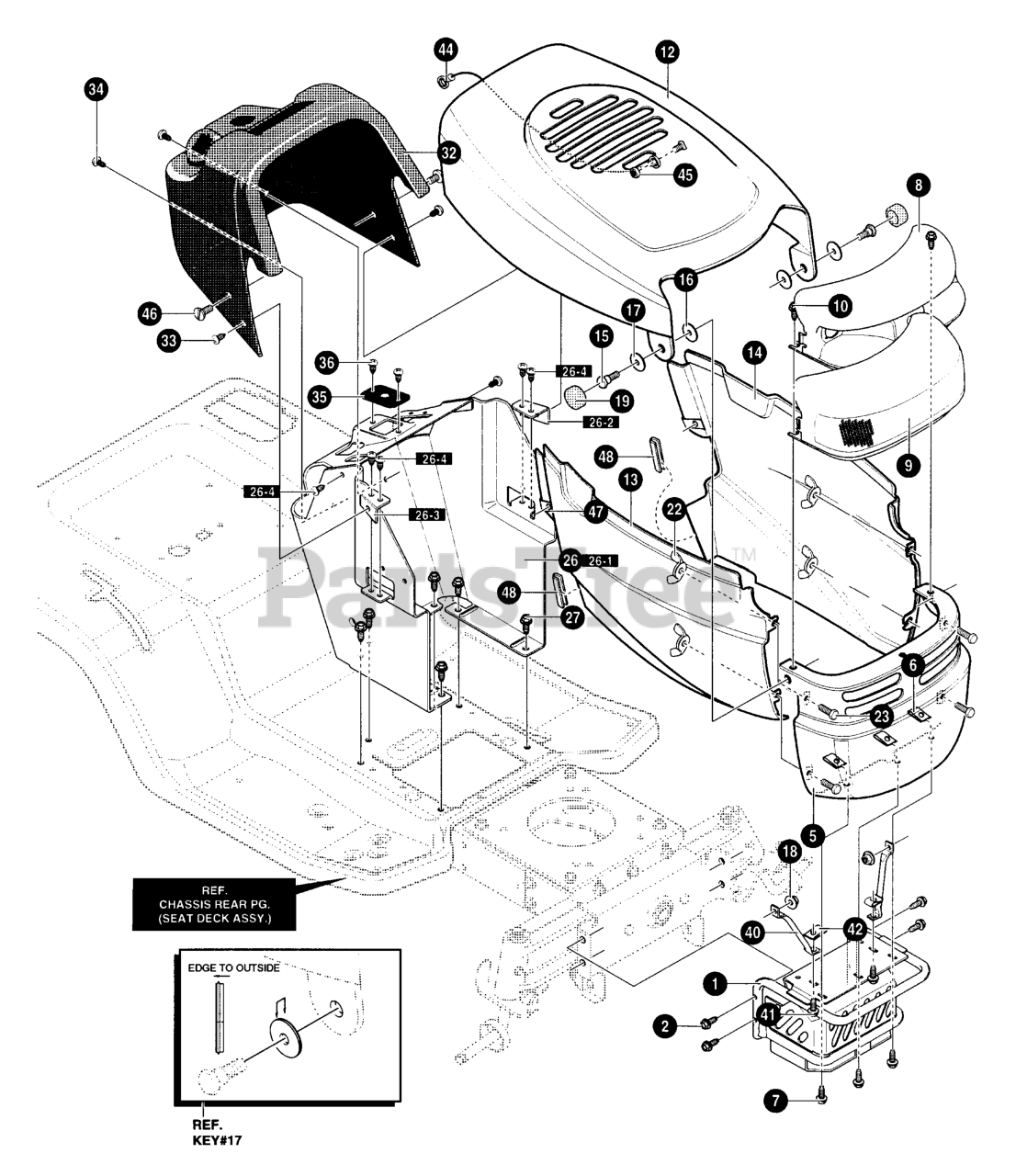

Front Chassis Assembly Parts Diagram

  • Title

1

Murray 94529E717

BUMP/GRIL MNT

$

$

Not available

2

Murray 711345

SCREW 5/16- 18X1.38

$1.99

$

Usually ships in 2-12 days

0

5

Murray 94455E122

GRILLE

$

$

Not available

6

Murray 028X33MA

NUT, "J" TINNERMAN

$4.49

$

Usually ships in 2-12 days

0

7

Murray 26X263MA

SCREW 1/4-20X.63

$4.99

$

In Stock, only 1 left!

0

8

Murray 94460

REFLECTOR

$9.49

$

Usually ships in 2-12 days

0

9

Murray 94459

LENS

$4.99

$

Usually ships in 2-12 days

0

10

Murray 26X238MA

SCREW, 1/4- 14X.50

$3.99

$

Usually ships in 2-12 days

0

12

Murray 094524E122

ASSEMBLY, HOOD

$

$

Currently unavailable

13

Murray 94458E122

PANEL, SIDE RH

$39.99

$

Usually ships in 2-12 days

0

14

Murray 94457E122

PANEL, SIDE LH

$

$

Currently unavailable

15

Murray 009X49MA

BOLT

$5.49

$

In Stock, only 1 left!

0

16

Murray 710067

WASHER, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

17

Murray 094472

PIVOT BASE

$3.99

$

Usually ships in 2-12 days

0

18

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 94471MA

CAP, PIVOT

$3.99

$

Usually ships in 2-12 days

0

22

Murray 325232MA

NUT, WING 1/4-20

$4.49

$

Usually ships in 2-12 days

0

23

Murray 001X38MA

SCREW 1/4- 20X1.25

$4.49

$

In Stock, Qty 10

0

26

Murray 342047E122

CONSOLE ASSY

$71.99

$

Usually ships in 2-12 days

0

26-1

Murray 94462

CONSOLE, DASH

$13.99

$

Usually ships in 2-12 days

0

26-2

Murray 094465

BRACKET, LH

$4.49

$

Usually ships in 2-12 days

0

26-3

Murray 094464

BRACKET, RH

$4.49

$

Usually ships in 2-12 days

0

26-4

Murray 26X270

SCREW, 10- 24X.5
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

27

Murray 26X249MA

SCREW 5/16- 18

$

$

Not available

32

Murray 094939

DASH

$

$

Currently unavailable

33

Murray 26X270

SCREW 10- 24X.5
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

34

Murray 26X270

SCREW 10- 24X.5
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

35

Murray 094075

STEERING BEARING

$

$

Currently unavailable

36

Murray 26X238MA

SCREW, 1/4- 14X.5

$3.99

$

Usually ships in 2-12 days

0

40

Murray 94519E122

STRUT, GRILLE

$

$

Not available

41

Murray 26X263MA

SCREW 1/4-20X.63

$4.99

$

In Stock, only 1 left!

0

42

Murray 710979

SPEED NUT

$9.99

$

Usually ships in 2-12 days

0

44

Murray 643129

LANYARD, HOOD

$

$

Not available

45

Murray 15X216

NUT, 1/4- 20

$

$

Currently unavailable

46

Murray 26X238MA

SCREW 1/4-20X.63

$3.99

$

Usually ships in 2-12 days

0

47

Murray 028X33MA

NUT, "J" TINNERMAN

$4.49

$

Usually ships in 2-12 days

0

48

Murray 95077

TRIM
(Superseded to 691142)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 44X6984

DECAL, LEFT HOOD

$

$

Currently unavailable

--

Murray 44X7097

DECAL, RIGHT HOOD

$

$

Currently unavailable

--

Murray 44X6987

DECAL, GRILLE

$

$

Currently unavailable

--

Murray 44X6752

DECAL, HEIGHT ADJUST

$

$

Currently unavailable

--

Murray 44X7295

DECAL, CRUISE CONTROL

$

$

Currently unavailable

--

Murray 44X7325MA

DECAL, WARNING

$16.99

$

Usually ships in 2-12 days

0

--

Murray 44X7309

DECAL, GAUGE WHEEL INST

$

$

Currently unavailable

--

Murray F-97891

OWNER'S MANUAL

$

$

Currently unavailable

--

Murray F-97892

PARTS LIST

$

$

Currently unavailable
