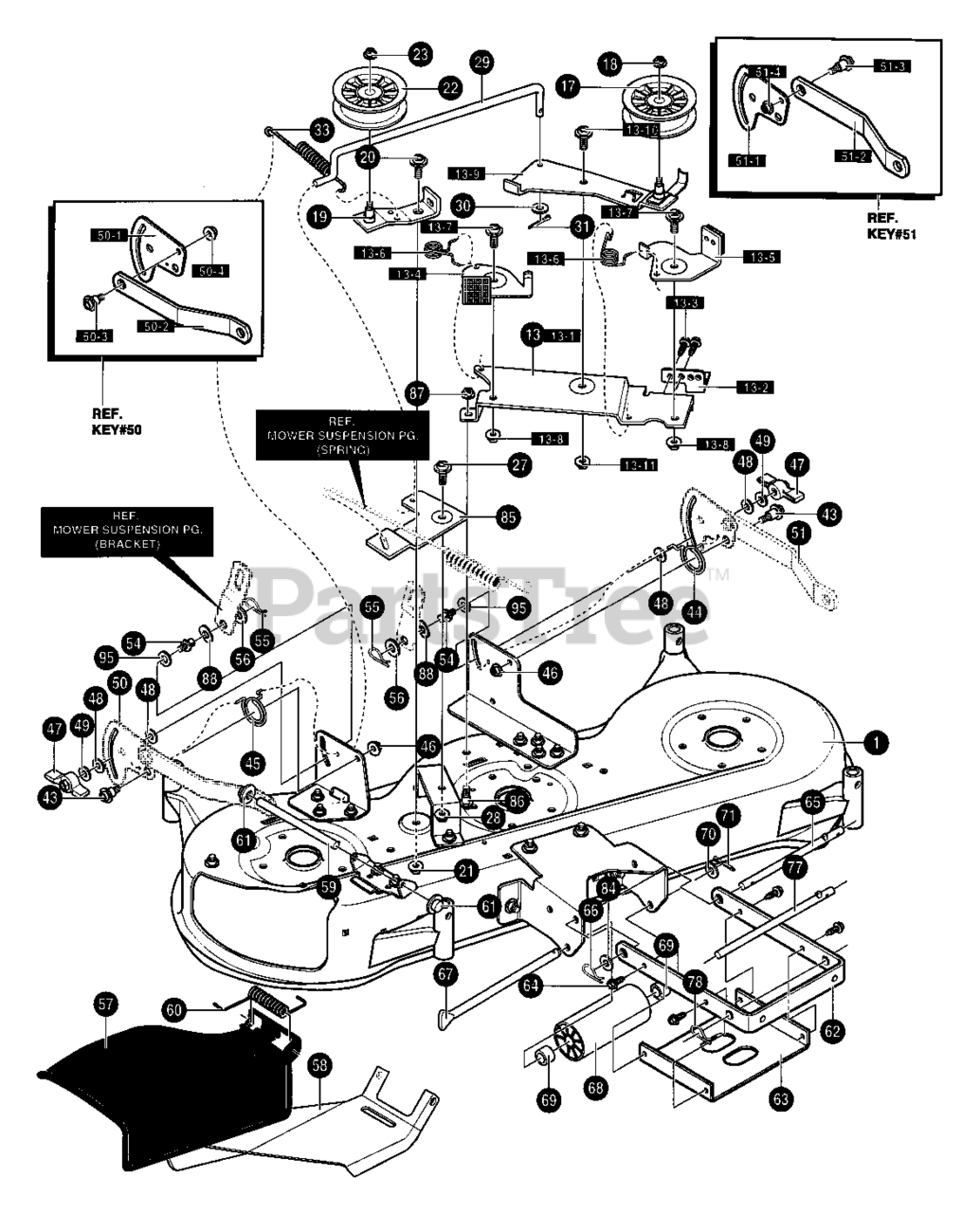

46562x8A - Murray 46" Lawn Tractor (1997) Mower Housing Assembly Parts Diagram

46" Lawn Tractor

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 341819E717MA

MOWER DECK

$421.99

$

Usually ships in 2-12 days

0

13

Murray 94720E717

BRAKE MOUNTING BRACKET

$

$

Currently unavailable

13-1

Murray 94596

PLATE-BRAKE ARM MTG

$

$

Currently unavailable

13-2

Murray 94602

BRACKET, BRAKE PLATE
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

13-3

Murray 710079

SCREW 5/16-18X.75

$

$

Not available

13-4

Murray 94640

ASSY, BRAKE RH

$

$

Currently unavailable

13-5

Murray 94641

ASSY, BRAKE RH

$

$

Currently unavailable

13-6

Murray 166X41MA

TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

13-7

Murray 009X39MA

BOLT, 3/8-16

$6.49

$

In Stock, Qty 6

0

13-8

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13-9

Murray 94644

IDLER ASSEMBLY
(Superseded to 690877)

$3.99

$

In Stock, only 1 left!

0

13-10

Murray 009X39MA

BOLT 3/8-16

$6.49

$

In Stock, Qty 6

0

13-11

Murray 015X84MA

NUT 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 091801

PULLEY, IDLER
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 7

0

18

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 94639E717

ASSY, IDLER ARM RH 46"

$

$

Currently unavailable

20

$6.49

$

In Stock, Qty 6

0

21

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Murray 091590

PULLEY, IDLER

$28.99

$

In Stock, only 1 left!

0

23

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

$6.49

$

In Stock, Qty 6

0

28

Murray 015X84MA

NUT 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Murray 94606

LINK, BELLCRANK

$

$

Not available

30

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

31

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 165X79MA

SPRING, EXT

$6.49

$

In Stock, Qty 5

0

43

Murray 009X51MA

BOLT, SHOULDER

$4.99

$

In Stock, only 2 left!

0

44

Murray 166X43MA

SPRING, TORSION LH

$4.99

$

In Stock, only 2 left!

0

45

Murray 166X42MA

SPRING, TORSION RH

$4.99

$

In Stock, Qty 8

0

46

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

47

Murray 095004MA

WINGNUT 5/16-18

$7.49

$

In Stock, only 2 left!

0

48

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 8

0

49

$

$

Not available

50

Murray 341593E717

PLATE, REAR SUS. BRKT RH

$11.99

$

Usually ships in 2-12 days

0

50-1

Murray 94128

PLATE, SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

50-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

50-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

50-4

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

51

Murray 341594E717

PLATE, REAR SUS. BRKT. LH

$

$

Not available

51-1

Murray 94128

PLATE -SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

51-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

51-3

Murray 009X52MA

BOLT, SHOULDER

$6.49

$

In Stock, only 2 left!

0

51-4

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

54

Murray 094064

PIN, HANGER

$

$

Currently unavailable

55

Murray 0031X4MA

HAIRPIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 17X103MA

FLATWASHER

$4.99

$

In Stock, only 2 left!

0

57

Murray 092100MA

DEFLECTORS, 46" DECK CHUTE

$93.99

$

Usually ships in 2-12 days

0

58

Murray 92103E717

DEFLECTORS, INNER CHUTE 46"

$

$

Currently unavailable

59

Murray 92159

ROD, DEFLECTOR

$

$

Not available

60

Murray 166X34MA

SPRING, TORS.

$9.49

$

Usually ships in 2-12 days

0

61

Murray 028X23MA

NUT, PUSH CAP
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

62

Murray 94058E717

BRACKET, FRONT SUSPENSION

$

$

Currently unavailable

63

Murray 94991E717

STIFFENER, FRONT HANGER

$

$

Currently unavailable

64

$

$

Not available

65

Murray 094996MA

ROD, DECK

$

$

Not available

66

Murray 0031X4MA

HAIRPIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

67

Murray 94642

ZINC ROD, ROLLER
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

68

Murray 092137MA

ROLLER, 6" NOSE 46" DECK

$32.99

$

Usually ships in 2-12 days

0

69

$12.99

$

In Stock, only 1 left!

0

70

Murray 17X103MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

71

Murray 030X49MA

PIN, HAIR

$4.49

$

In Stock, Qty 11

0

77

Murray 94158

ROD, HANGER

$28.99

$

Usually ships in 2-12 days

0

78

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

84

Murray 17X103MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

85

Murray 94603E717

BELLCRANK 46"

$

$

Currently unavailable

86

Murray 002X53MA

BOLT, 5/16-18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

87

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

88

Murray 30289MA

WASHER, WAVE

$6.49

$

Usually ships in 2-12 days

0

95

$5.99

$

Usually ships in 2-12 days

0
