46562x8A - Murray 46" Lawn Tractor (1997) Electrical System (part 1) Parts Diagram

46" Lawn Tractor

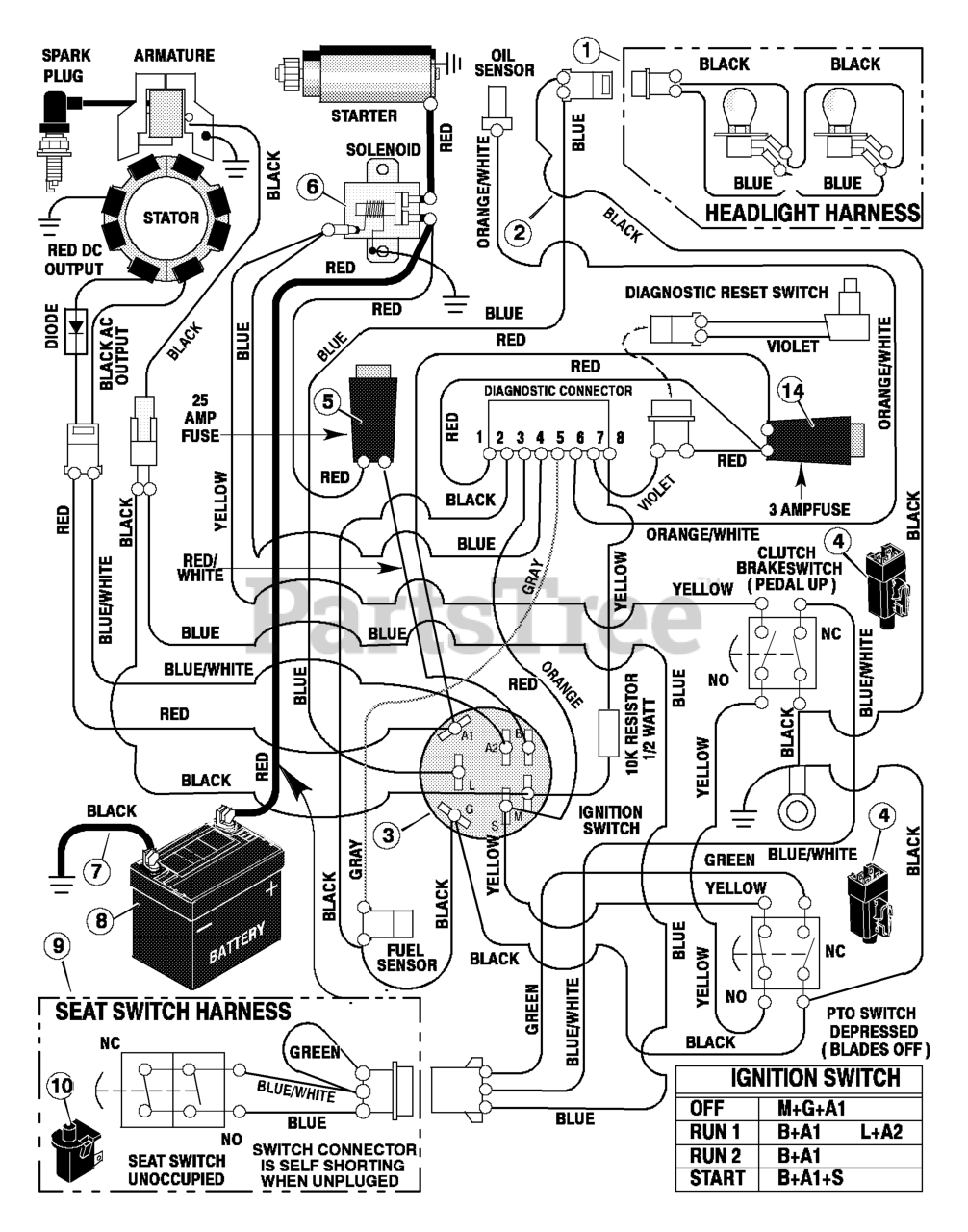

Electrical System (part 1) Parts Diagram

  • Title

1

Murray 094780

Harness, Light Wire

$

$

Currently unavailable

--

Murray 092372

Socket, Light

$7.99

$

In Stock, Qty 5

0

--

Murray 780216

Bulb, Light

$

$

Currently unavailable

2

Murray 094995

Harness, Chassis Wire

$

$

Currently unavailable

3

Murray 094762

Switch, Ignition

$24.99

$

Usually ships in 2-12 days

0

--

Murray 327350MA

Key, Ignition
(Superseded to 1714054SM)

$7.49

$

In Stock, Qty 20+

0

4

Murray 094136MA

Switch, Limit

$12.99

$

Usually ships in 2-12 days

0

5

Murray 302031MA

Fuse, 25 AMP

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 094613

Solenoid

$27.99

$

In Stock, only 3 left!

0

--

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

Cable, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X213MA

Screw, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

Murray 092691

Battery

$

$

Currently unavailable

--

Murray 093292

Acid, Battery (Electrolyte)

$

$

Not available

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

9

Murray 094741

Harness, Seat Switch Wire

$

$

Currently unavailable

10

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

14

Fuse, 3 AMP

Note: (Standard 3 AMP Automotive Type Fuse.)

$

$

Not available
