465624x50A - Murray 46" Lawn Tractor (2005) Chassis & Hood Parts Diagram

46" Lawn Tractor

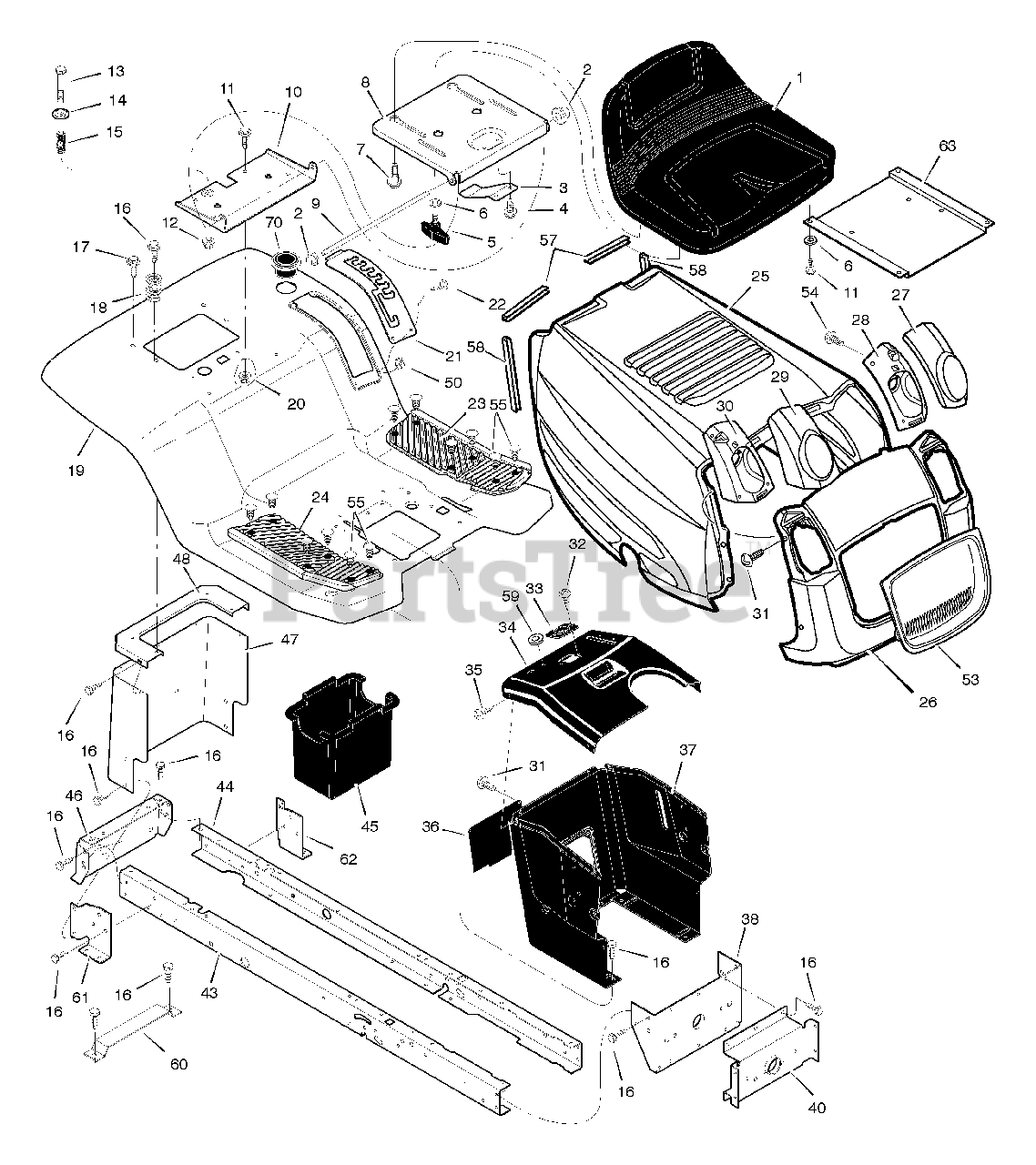

Chassis & Hood Parts Diagram

  • Title

$478.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001556E245MA

Deck, Seat
(Superseded to 7300914RYP)

$455.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094886E700

Plate, Index

$53.99

$

Usually ships in 2-12 days

0

22

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

23

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

24

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

25

Murray 1001537E245MA

Hood
(Superseded to 7300897RYP)

$296.99

$

Usually ships in 2-12 days

0

$

$

Not available

27

Murray 1001552MA

Lens, Left

$

$

Not available

28

Murray 1001550

Housing, Left Headlamp

$

$

Not available

29

Murray 1001551MA

Lens, Right

$11.99

$

Usually ships in 2-12 days

0

30

Murray 1001549

Housing, Right Headlamp

$30.99

$

Usually ships in 2-12 days

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001593E717MA

Dash
(Superseded to 7300775TYP)

$121.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E245

Panel, Access

$

$

Currently unavailable

37

Murray 095318E717MA

Support, Dash
(Superseded to 7300872TMA)

$142.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E700MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

40

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

43

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E245

Plate, Hitch

$

$

Currently unavailable

47

Murray 1001906E245

Plate, Rear

$

$

Currently unavailable

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

$4.99

$

Usually ships in 2-12 days

0

53

Murray 1001541MA

Insert, Grille

$

$

Not available

54

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

55

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

57

Murray 1001652MA

Trim, Hood (3.75")
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0

58

Murray 1001653MA

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

60

Murray 690482E701

Bracket, Support

$

$

Not available

61

Murray 094184E701MA

Bracket, Right Transaxle

$60.99

$

Usually ships in 2-12 days

0

62

Murray 094185E701MA

Bracket, Left Transaxle

$60.99

$

Usually ships in 2-12 days

0

63

Murray 1001855E701

Plate, Seat

$63.99

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1002054

Bag, Parts

$28.99

$

Usually ships in 2-12 days

0

--

Murray F-050741L

Instruction Book & Parts List

$

$

Currently unavailable
