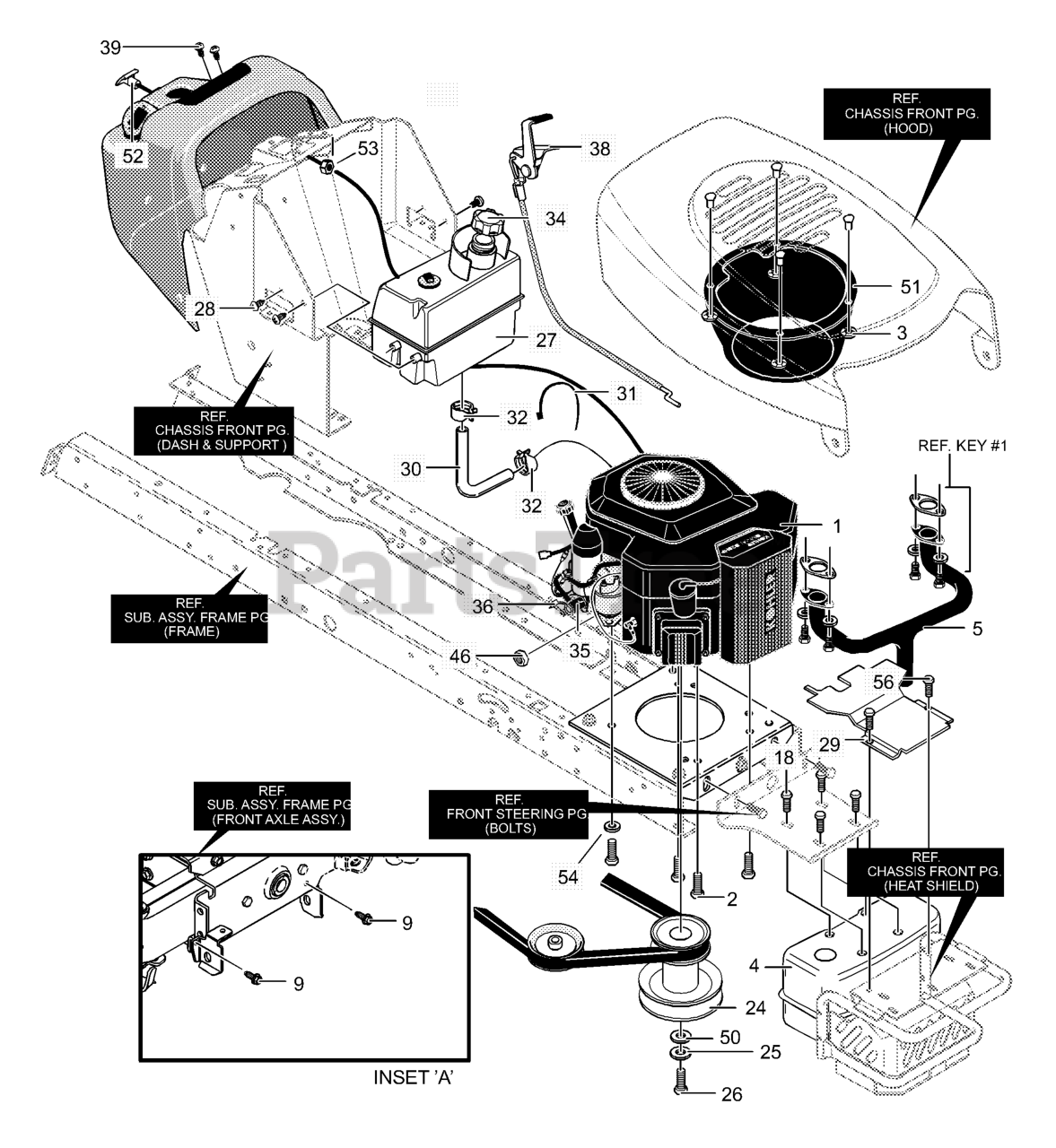

465615x99A - Briggs & Stratton 46" Lawn Tractor (2001) (AAFES) Engine And Control Assembly Parts Diagram

46" Lawn Tractor

Engine And Control Assembly Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

3

Murray 711677

PUSHNUT

$8.49

$

Usually ships in 2-12 days

0

4

Murray 094655MA

MUFFLER, TWIN-CYLINDER

$86.99

$

Usually ships in 2-12 days

0

5

Murray 94662

EXHAUST MANIFOLD

$

$

Currently unavailable

9

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

18

Murray 711642MA

SCRW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

24

Murray 690449

PULLEY, STACK

$5.99

$

Usually ships in 2-12 days

0

25

Murray 120383

WASHER

$

$

Not available

26

Murray 01X169

BOLT

$3.49

$

Usually ships in 2-12 days

0

27

Murray 094484

FUEL TANK

$

$

Not available

28

Murray 711681

SCREW

$1.99

$

Usually ships in 2-12 days

0

29

Murray 95440-853

SHIELD, HEAT

$

$

Currently unavailable

30

Murray 47452

TUBING
(Superseded to 5047452)

$410.99

$

Usually ships in 2-12 days

0

31

Murray 57444

TIE, CABLE

$

$

Not available

32

Murray 336890

CLAMP, FUEL LINE

$

$

Currently unavailable

34

Murray 092317MA

FUEL CAP

$10.99

$

In Stock, Qty 7

0

35

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN VALVE

$

$

Not available

38

Murray 95264

THROTTLE CONTROL

$14.99

$

Usually ships in 2-12 days

0

39

Murray 711686

SCREW

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

50

Murray 17X170MA

WASHER

$

$

Not available

51

Murray 095325

PLENIUM

$

$

Currently unavailable

52

Murray 690352

CHOKE CONTROL

$6.99

$

In Stock, only 3 left!

0

53

Murray 711906

Nut

$

$

Not available

54

Murray 711668

WASHER

$

$

Not available

56

Murray 711660MA

SCREW
(Superseded to 44811MA)

$5.99

$

Usually ships in 2-12 days

0
