465615x99A - Briggs & Stratton 46" Lawn Tractor (2001) (AAFES) Electrical Assembly Parts Diagram

46" Lawn Tractor

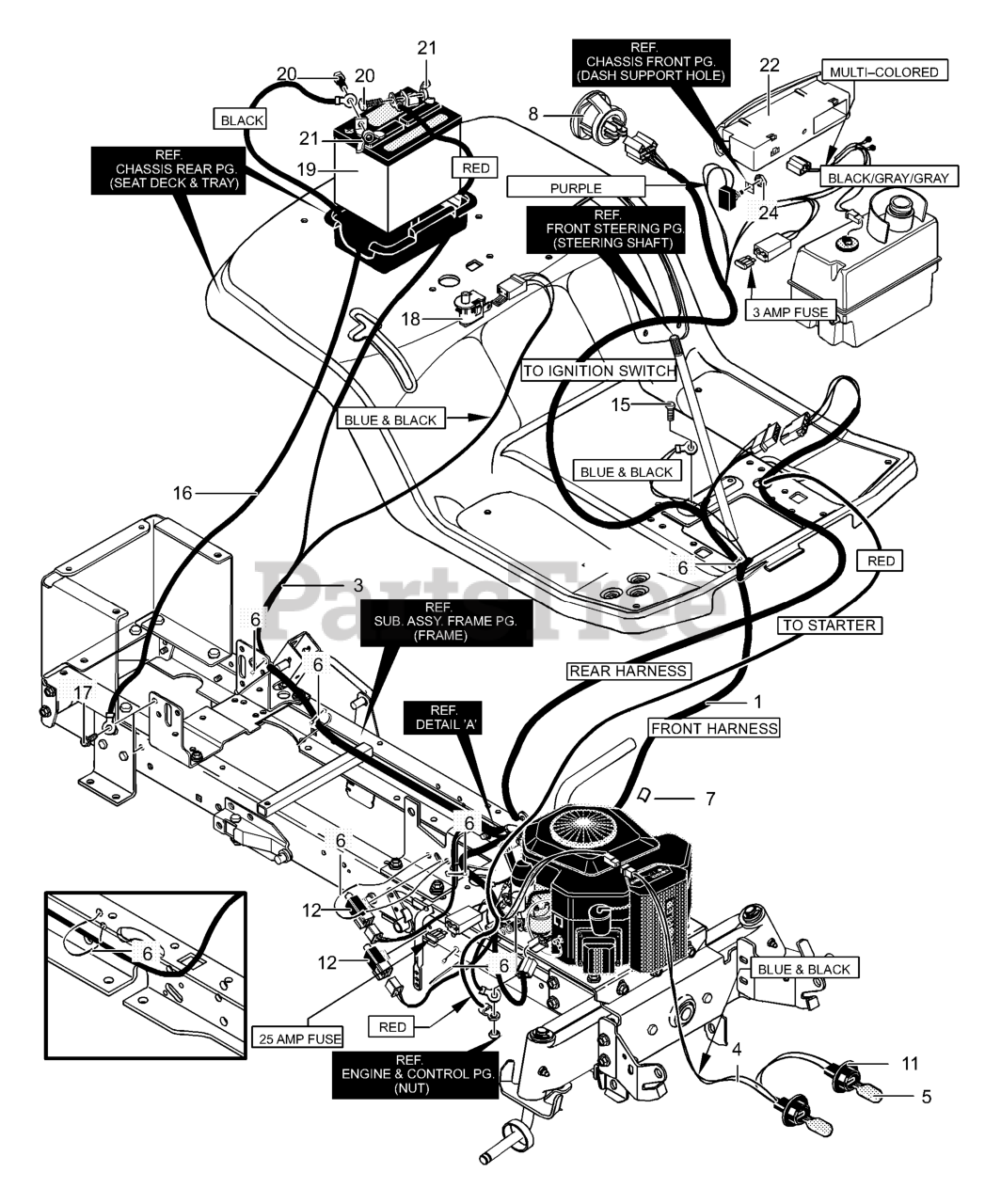

Electrical Assembly Parts Diagram

  • Title

1

Murray 94993

WIRE HARNESS
(Superseded to 692559)

$3.99

$

Usually ships in 2-12 days

0

3

Murray 94758

WIRE HARNESS, REAR 20HP

$

$

Currently unavailable

4

Murray 094780

WIRE ASSEMBLY, HEADLIGHTS

$

$

Currently unavailable

5

Murray 090084MA

BULB, LIGHT
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

6

Murray 57444

TIE, CABLE

$

$

Not available

7

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094762

SWITCH, IGNITION

$24.99

$

Usually ships in 2-12 days

0

11

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 5

0

12

Murray 094136MA

SWITCH, SAFETY

$12.99

$

Usually ships in 2-12 days

0

15

Murray 711619

SCREW

$1.99

$

Usually ships in 2-12 days

0

16

Murray 710228

WIRE, GROUND

$47.99

$

In Stock, only 2 left!

0

17

Murray 711619

SCREW

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Murray 092693

BATTERY

$

$

Currently unavailable

20

Murray 711680

BOLT, 1/4-20X.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

NUT, WING 1/4-20

$

$

Not available

22

Murray 094893

ELECTRONIC DIAG

$

$

Currently unavailable

24

Murray 711376

NUT, PLASTIC

$1.49

$

Usually ships in 2-12 days

0
