465615x99A - Briggs & Stratton 46" Lawn Tractor (2001) (AAFES) Deck Assembly (part 1) Parts Diagram

46" Lawn Tractor

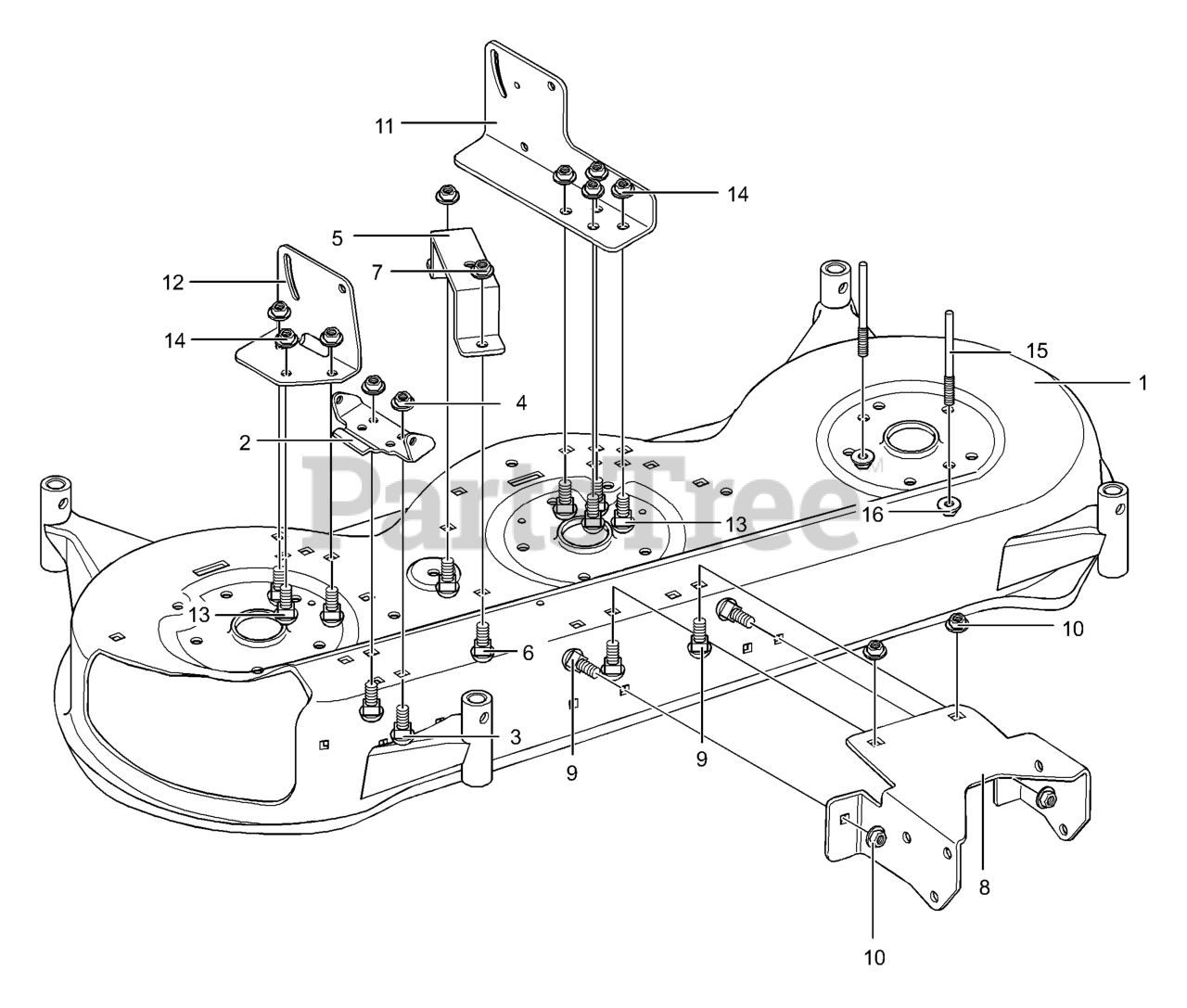

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 710145

MOWER DECK, 46"

$37.99

$

Usually ships in 2-12 days

0

2

Murray 92104

HINGE, CHUTE BRACKET

$

$

Currently unavailable

3

Murray 002X53MA

BOLT, CARRIAGE
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

4

Murray 015X88MA

LOCKNUT, FLANGE
(Superseded to 704067)

$3.99

$

In Stock, Qty 18

0

5

Murray 94601

BRACKET, BELL CRANK

$

$

Currently unavailable

6

Murray 002X53MA

BOLT, CARRIAGE
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

7

Murray 015X79MA

LOCKNUT, FLANGE
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Murray 94997

BRACKET, FRONT DECK

$

$

Currently unavailable

9

Murray 002X53MA

BOLT, CARRIAGE
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

10

Murray 015X79MA

LOCKNUT, FLANGE
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 94600

BRACKET, LEFT LIFTER

$

$

Currently unavailable

12

Murray 94598

BRACKET, RIGHT REAR

$

$

Currently unavailable

13

Murray 002X53MA

BOLT, CARRIAGE
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 015X79MA

LOCKNUT FLANGE
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 091754MA

SCREW, GUIDE

$16.99

$

Usually ships in 2-12 days

0

16

Murray 015X79MA

LOCKNUT, FLANGE
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
