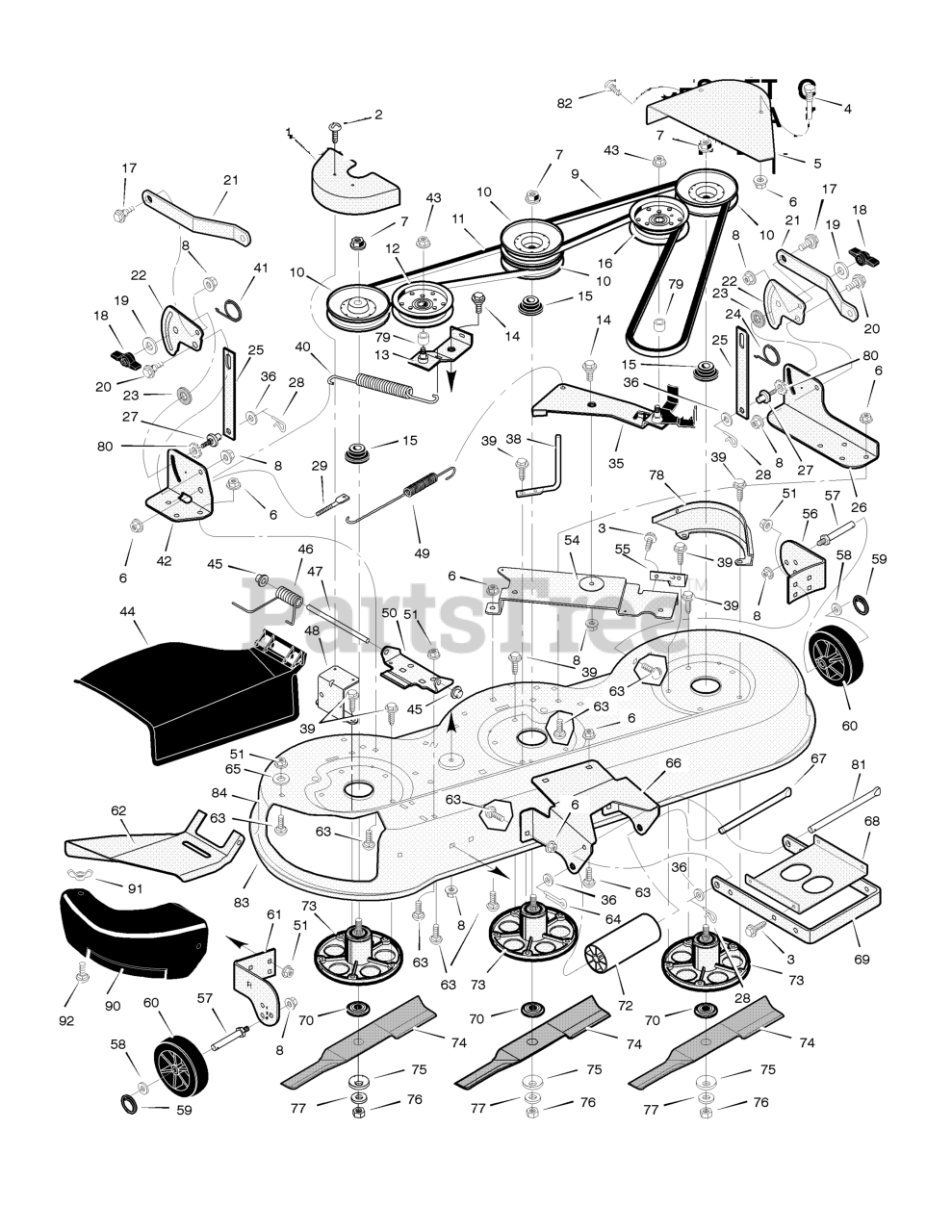

465614x48A - Briggs & Stratton 46" Lawn Tractor (2004) (Mills) Mower Housing Assembly Parts Diagram

46" Lawn Tractor

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 094607E700

Cover, Right Pulley

$

$

Currently unavailable

2

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, Qty 11

0

3

Murray 26X249MA

Screw

$

$

Not available

4

Murray 091754MA

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

5

Murray 094645E700

Cover, Left Pulley

$

$

Currently unavailable

6

Murray 015X79MA

Nut, Hex
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Murray 15X140MA

Nut, Flange

$9.99

$

In Stock, Qty 7

0

8

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

9

Murray 037X89MA

Belt, Primary

$49.99

$

Usually ships in 2-12 days

0

10

Murray 094592MA

Pulley
(Superseded to 95309MA)

$

$

Not available

11

Murray 037X66MA

Belt, Secondary

$24.99

$

In Stock, only 1 left!

0

12

Murray 690549MA

Pulley, Idler

$

$

Not available

13

Murray 094639E701MA

Arm, Idler

$108.99

$

In Stock, only 1 left!

0

14

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

15

Murray 1001197MA

Spacer, Pulley

Note: (Included with Ref. No. 73)

$12.99

$

In Stock, only 2 left!

0

16

Murray 690387MA

Pulley, Idler

$

$

Not available

17

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 1 left!

0

18

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

19

Murray 017X45MA

Washer

$

$

Not available

20

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

21

Murray 094055E700

Bracket, Rear Suspension

$

$

Currently unavailable

22

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

23

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

24

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

25

Murray 690212E700

Link, Lift

$

$

Currently unavailable

26

Murray 094600E700MA

Bracket, Left Lift

$25.99

$

Usually ships in 2-12 days

0

27

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

28

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

29

Murray 1001694 Z

Rod, Adjuster

$

$

Currently unavailable

35

Murray 690579E700MA

Idler, Arm
(Superseded to 7400227BMYP)

$149.99

$

Usually ships in 2-12 days

0

36

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

38

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

39

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

40

Murray 165X79MA

Spring, Extension

$6.49

$

In Stock, Qty 5

0

41

Murray 166X42MA

Spring, Torsion

$4.99

$

In Stock, Qty 8

0

42

Murray 094598E700

Bracket, Suspension

$

$

Currently unavailable

43

Murray 015X98MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

44

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

45

Murray 028X23MA

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

46

Murray 166X34MA

Spring, Torsion

$9.49

$

Usually ships in 2-12 days

0

47

Murray 092159ZMA

Rod, Deflector

$

$

Not available

48

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

49

Murray 165X131MA

Spring, Extension

$15.99

$

Usually ships in 2-12 days

0

50

Murray 092104E700

Bracket, Hinge

$

$

Currently unavailable

51

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

54

Murray 094596E700

Plate, Brake Arm

$

$

Currently unavailable

55

Murray 094602E700

Bracket, Brake Plate

$

$

Currently unavailable

56

Murray 094919E700

Bracket, Left Gauge Wheel

$

$

Currently unavailable

57

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

58

Murray 017X91 Z

Washer

$

$

Currently unavailable

59

Murray 031X11MA

Ring, Locking

$4.49

$

In Stock, only 2 left!

0

60

Murray 092683MA

Wheel, Gauge

$15.99

$

In Stock, only 3 left!

0

61

Murray 094918E700

Bracket, Right Gauge Wheel

$

$

Currently unavailable

62

Murray 092103E700

Deflector, Inside

$

$

Currently unavailable

63

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

64

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

65

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

66

Murray 094997E700

Bracket, Front Deck

$

$

Currently unavailable

67

Murray 094996MA

Rod, Hanger

$

$

Not available

68

Murray 094604E700

Stiffener

$

$

Currently unavailable

69

Murray 094058E700

Bracket, Suspension

$

$

Currently unavailable

70

Murray 690411MA

Adapter, Blade

$

$

Not available

72

Murray 1001252MA

Roller

$20.99

$

Usually ships in 2-12 days

0

73

Murray 1001200MA

Housing, Jackshaft

$82.99

$

In Stock, only 3 left!

0

74

Murray 056631E701MA

Blade

$19.99

$

In Stock, only 3 left!

0

75

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

76

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 10

0

77

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

78

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

79

Murray 690369MA

Spacer

$

$

Not available

80

Murray 019X35MA

Washer

$4.99

$

In Stock, Qty 11

0

81

Murray 094996MA

Rod, Hanger

$

$

Not available

82

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

83

Murray 1001589E701

Screw

$

$

Not available

90

Murray 095086MA

Cover, Mulch

$45.99

$

Usually ships in 2-12 days

0

91

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

92

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0
