465606x692B - Stanley 46" Lawn Tractor (2002) Mower Housing Parts Diagram

46" Lawn Tractor

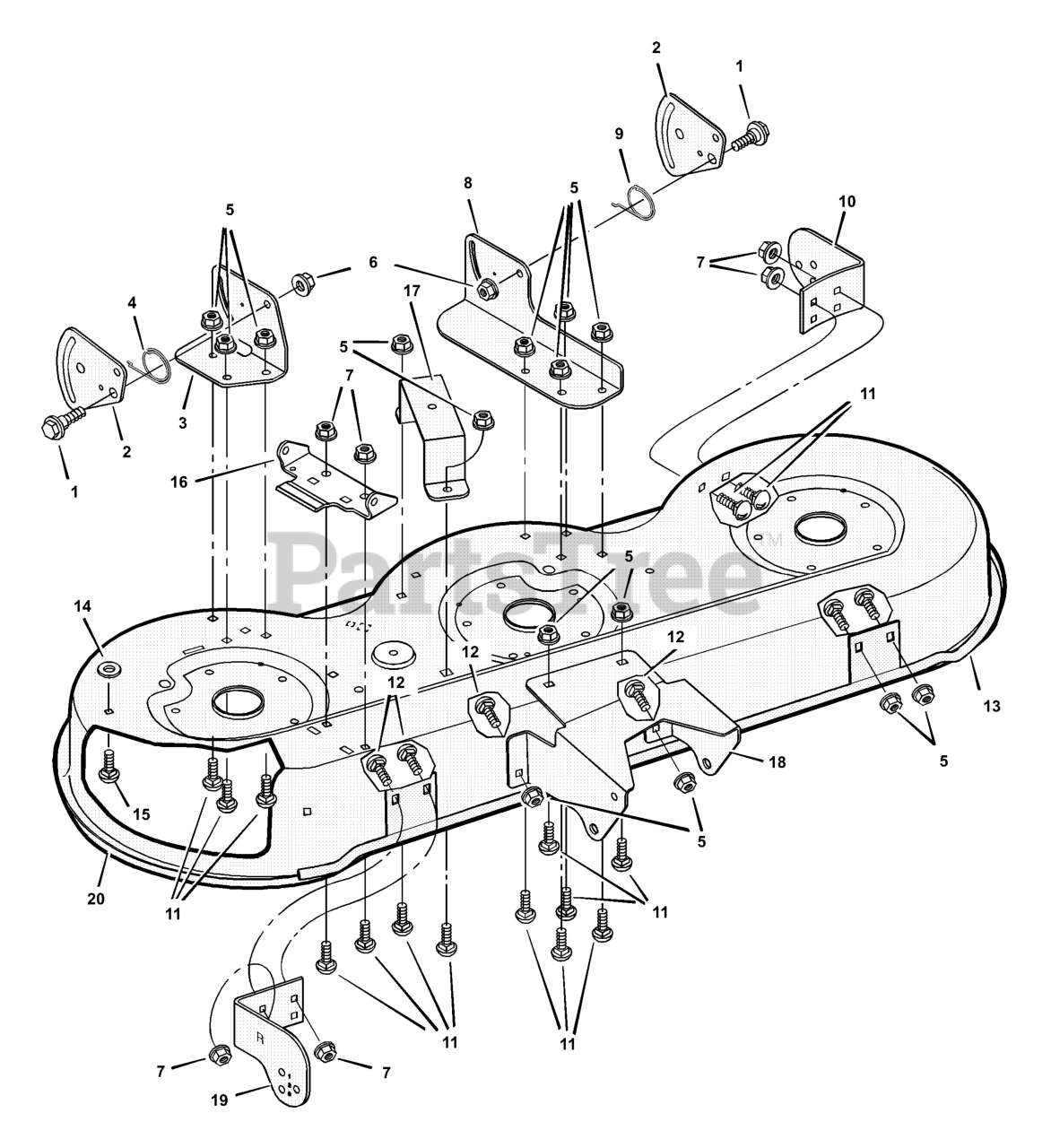

Mower Housing Parts Diagram

  • Title

1

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

2

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

3

Murray 094598E700

Bracket, Right Rear

$

$

Currently unavailable

4

Murray 166X42MA

Spring

$4.99

$

In Stock, Qty 8

0

5

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

8

Murray 094600E700MA

Bracket, Left Lifter

$25.99

$

Usually ships in 2-12 days

0

9

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

10

Murray 094919E700

Bracket, Left Gage Wheel

$

$

Currently unavailable

11

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

12

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

13

Murray 1001204E700

Assembly, Reinforcement

$

$

Currently unavailable

14

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

15

Murray 002X74MA

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

16

Murray 092104E701MA

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

17

Murray 094601E700

Bracket, Bell Crank

$

$

Currently unavailable

18

Murray 094997

Bracket, Front Deck

$

$

Currently unavailable

19

Murray 094918E701MA

Bracket, Right Gage Wheel

$21.99

$

Usually ships in 2-12 days

0

20

Murray 1001151E701

Housing, 46" Blade

$

$

Currently unavailable
