465606x692B - Stanley 46" Lawn Tractor (2002) Hood & Grill Parts Diagram

46" Lawn Tractor

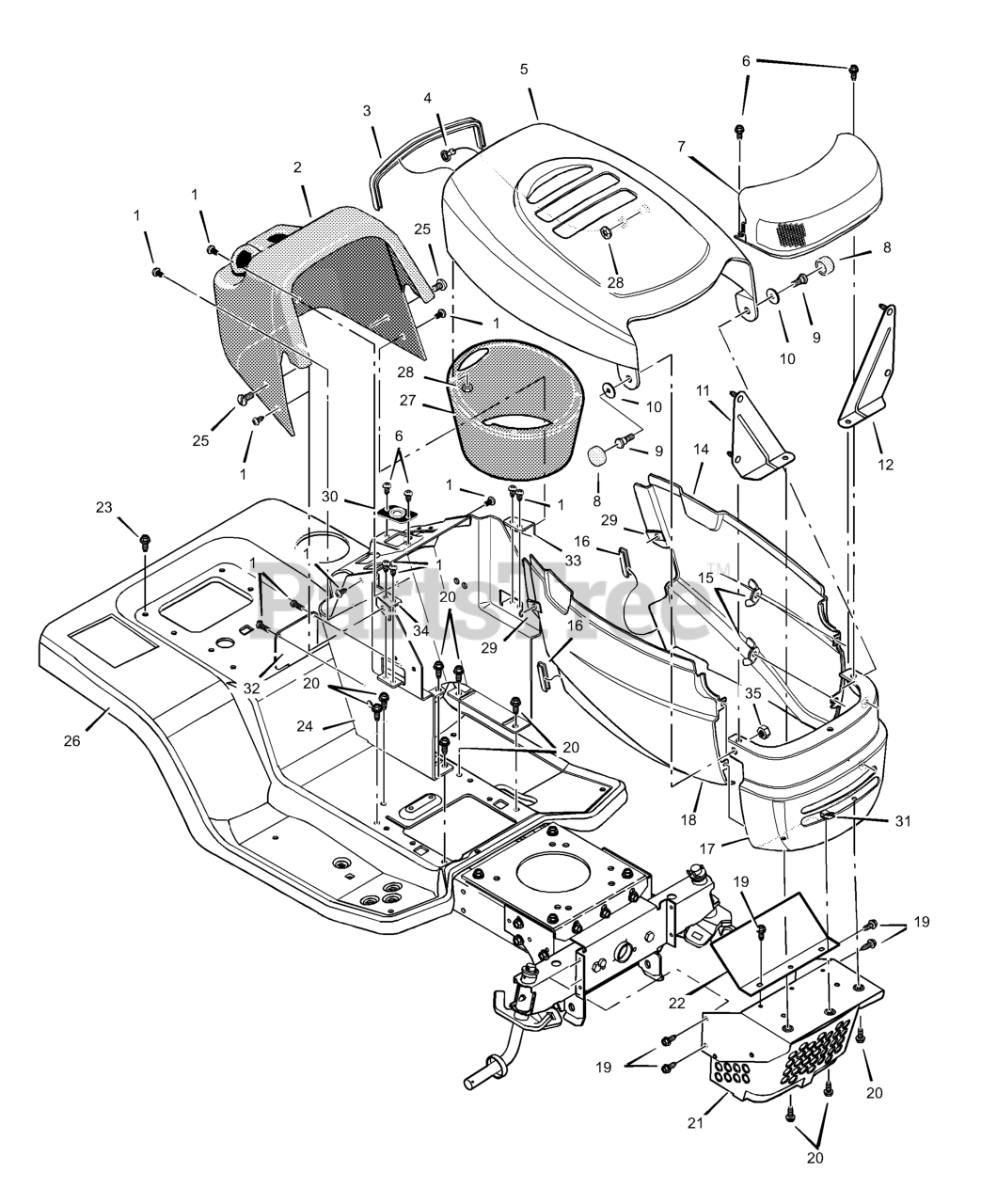

Hood & Grill Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

2

Murray 1001114

Dash

$104.99

$

Usually ships in 2-12 days

0

3

Murray 7601029

Trim 2.23"

$5.99

$

Usually ships in 2-12 days

0

4

Murray 643129

Cable

$

$

Not available

5

Murray 1001186E010

Hood Assemnly

$163.99

$

Usually ships in 2-12 days

0

6

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

7

Murray 95234

Lens & Reflector Assembly
(Superseded to 95234GS)

$45.99

$

In Stock, only 1 left!

0

8

Murray 690113MA

Cap, Pivot

$4.99

$

Usually ships in 2-12 days

0

9

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

10

Murray 690114

Base, Pivot

$5.49

$

Usually ships in 2-12 days

0

11

Murray 1001169E700

Brace, Right Grille Assembly

$

$

Currently unavailable

12

Murray 1001171E700

Brace, Left Grille Assembly

$

$

Currently unavailable

14

Murray 094457E700

Panel, Left Side

$

$

Currently unavailable

15

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

16

Murray 7601029E700

Trim 0.39"

$

$

Currently unavailable

17

Murray 1001126E700

Grille

$

$

Currently unavailable

18

Murray 094458

Panel, Right Side

$

$

Currently unavailable

19

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

20

Murray 26X249MA

Screw

$

$

Not available

21

Murray 1001191

Guard Assembly, Muffler

$

$

Not available

22

Murray 1001156

Shield, Upper Heat

$

$

Currently unavailable

23

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

24

Murray 095173E700

Console

$

$

Currently unavailable

25

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

26

Murray 1001099E700

Deck Seat

$

$

Currently unavailable

27

Murray 1001158

Plenum

$79.99

$

Usually ships in 2-12 days

0

28

Murray 028X49MA

Retainer, Push

$3.99

$

In Stock, Qty 13

0

29

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

30

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

31

Murray 028X57

U-Nut

$4.99

$

Usually ships in 2-12 days

0

32

Murray 093007E700

Panel, Access

$

$

Currently unavailable

33

Murray 094464

Bracket, Right Console

$4.49

$

Usually ships in 2-12 days

0

34

Murray 094465

Bracket, Left Console

$4.49

$

Usually ships in 2-12 days

0

35

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

--

Murray F-020757L

Book, Instruction

$

$

Currently unavailable
