465606x692B - Stanley 46" Lawn Tractor (2002) Front Axle Parts Diagram

46" Lawn Tractor

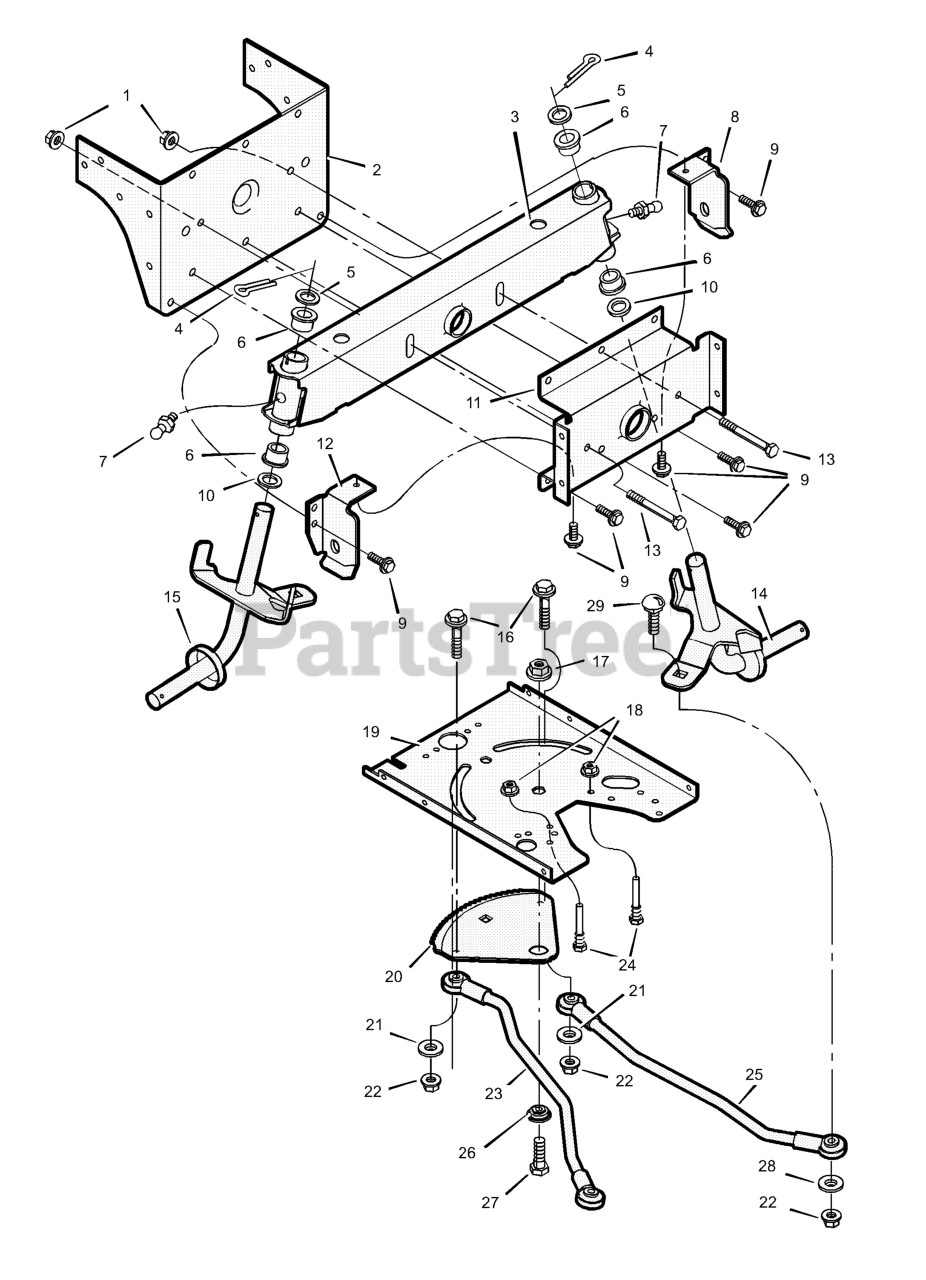

Front Axle Parts Diagram

  • Title
1

Murray 15X118MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

2

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

3

Murray 1001460E701MA

Assembly, Axle (with Zerk)

$108.99

$

Usually ships in 2-12 days

0

4

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

5

$4.99

$

In Stock, only 4 left!

0

6

Murray 690150MA

Bearing, Spindle

$8.99

$

In Stock, only 2 left!

0

7

Murray 092530MA

Fitting, Grease

$5.49

$

Usually ships in 2-12 days

0

8

Murray 094027E701MA

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

9

$

$

Not available

10

$3.99

$

In Stock, only 2 left!

0

11

Murray 094007

Hanger, Axle

$

$

Currently unavailable

12

Murray 094026E701MA

Hanger, Right Deck

$22.99

$

Usually ships in 2-12 days

0

13

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

14

Murray 1001173E701MA

Assembly, Left Spindle

$271.99

$

In Stock, only 1 left!

0

15

Murray 1001175E701MA

Assembly, Right Spindle
(Superseded to 721440BMYP)

$228.99

$

In Stock, only 1 left!

0

16

Murray 009X62MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

17

Murray 15X111MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

18

Murray 015X79MA

Locknut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 1001121E701MA

Plate, Steering Mount
(Superseded to 7300867ZMA)

$

$

Not available

20

Murray 1001176

Gear, Sector

$

$

Not available

21

$6.49

$

Usually ships in 2-12 days

0

22

Murray 015X84MA

Nut, Flange Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 1001178E701MA

Link, Drag -Right

$85.99

$

Usually ships in 2-12 days

0

24

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

25

Murray 1001177E701MA

Link, Drag -Left

$91.99

$

Usually ships in 2-12 days

0

26

Murray 094123MA

Bearing, Sector Gear

$12.99

$

In Stock, only 1 left!

0

27

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

28

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

29

Murray 002X96MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0
