465606x692B - Stanley 46" Lawn Tractor (2002) Engine Mount Parts Diagram

46" Lawn Tractor

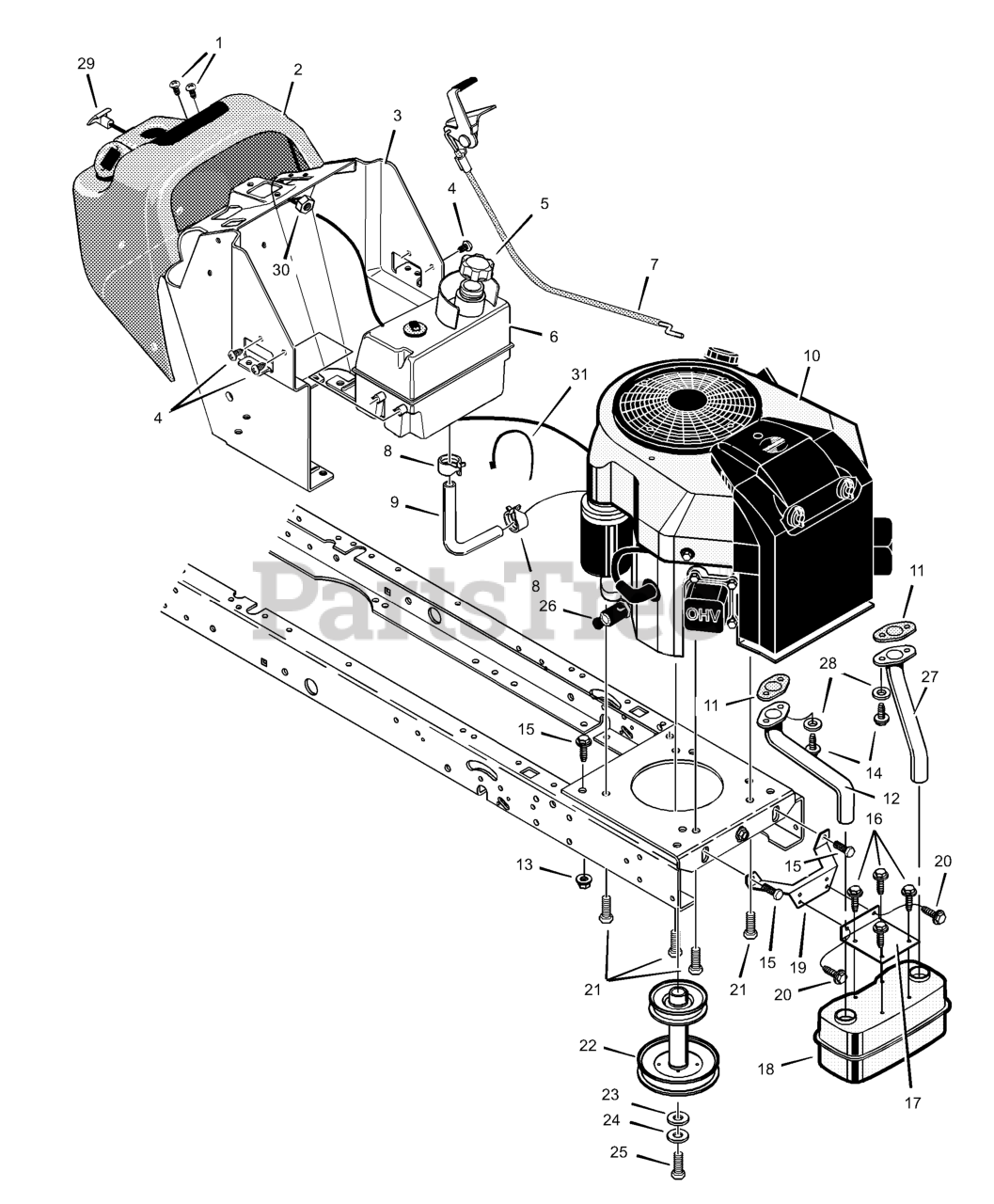

Engine Mount Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

2

Murray 1001114

Dash

$104.99

$

Usually ships in 2-12 days

0

3

Murray 095173

Console

$319.99

$

Usually ships in 2-12 days

0

4

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 092317MA

Cap, Fuel

Note: (Included with Ref. No. 6)

$10.99

$

In Stock, Qty 7

0

6

Murray 1001220

Tank, Fuel

$

$

Currently unavailable

7

Murray 1001225

Control, Throttle

$26.99

$

Usually ships in 2-12 days

0

8

Murray 095197MA

Clamp, Hose
(Superseded to 791850)

Note: (Included with Ref. No. 6)

$3.49

$

In Stock, Qty 20+

0

9

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 6)

$22.99

$

Usually ships in 2-12 days

0

10

Engine *

$

$

Not available

11

Murray 711851MA

Gasket, Exhaust

$4.49

$

Usually ships in 2-12 days

0

12

Murray 1001038

Tube, Right Exhaust

$

$

Not available

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

14

Murray 001X91MA

Bolt
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

17

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray 093259MA

Muffler

$96.99

$

Usually ships in 2-12 days

0

19

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

21

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

22

Murray 690507MA

Pulley, Stack

$110.99

$

Usually ships in 2-12 days

0

23

Murray 17X170MA

Washer

$

$

Not available

24

Murray 019X35MA

Washer, Star

$4.99

$

In Stock, Qty 11

0

25

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

26

Murray 325547MA

Drain, Oil

$

$

Not available

27

Murray 1001039

Tube, Left Exhaust

$

$

Not available

28

Murray 018X15MA

Washer

$3.99

$

In Stock, only 1 left!

0

29

Murray 690401

Choke

$3.99

$

In Stock, only 1 left!

0

30

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

31

Murray 032618MA

Strap, Tie

$3.99

$

Usually ships in 2-12 days

0
