465606x692A - Stanley 46" Lawn Tractor (2001) Steering Assembly Parts Diagram

46" Lawn Tractor

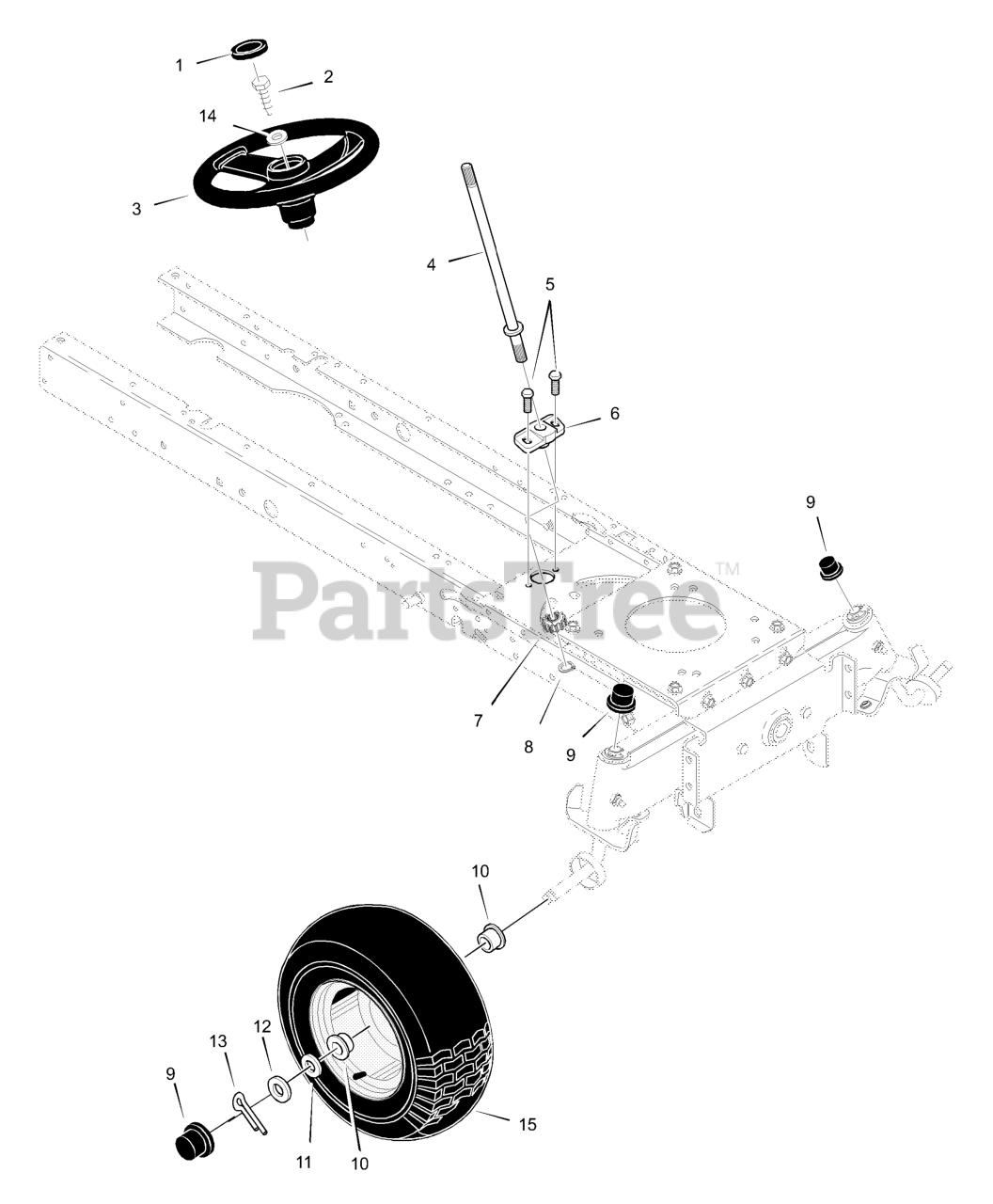

Steering Assembly Parts Diagram

  • Title

$

$

Not available

2

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

3

Murray 1001226MA

Wheel, Steering

$98.99

$

Usually ships in 2-12 days

0

4

Murray 690337MA

Shaft, Assembly Steering
(Superseded to 690581MA)

Note: (Includes Ref. No's. 6, 7 and 8)

$

$

Not available

5

$4.99

$

In Stock, Qty 20+

0

6

Murray 094124MA

Bearing

$14.99

$

In Stock, only 1 left!

0

7

Murray 690183MA

Gear, Pinion

$

$

Not available

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

$5.99

$

In Stock, only 4 left!

0

10

Murray 091334

Bearing, Wheel

$

$

Not available

11

$4.99

$

In Stock, Qty 5

0

12

$4.99

$

In Stock, Qty 15

0

13

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

14

$5.49

$

Usually ships in 2-12 days

0

15

Murray 094581010

Wheel & Tire, Front

$63.99

$

Usually ships in 2-12 days

0

--

$91.99

$

Usually ships in 2-12 days

0

--

$

$

Not available

--

Murray 024373MA

Stem, Valve

$

$

Not available
