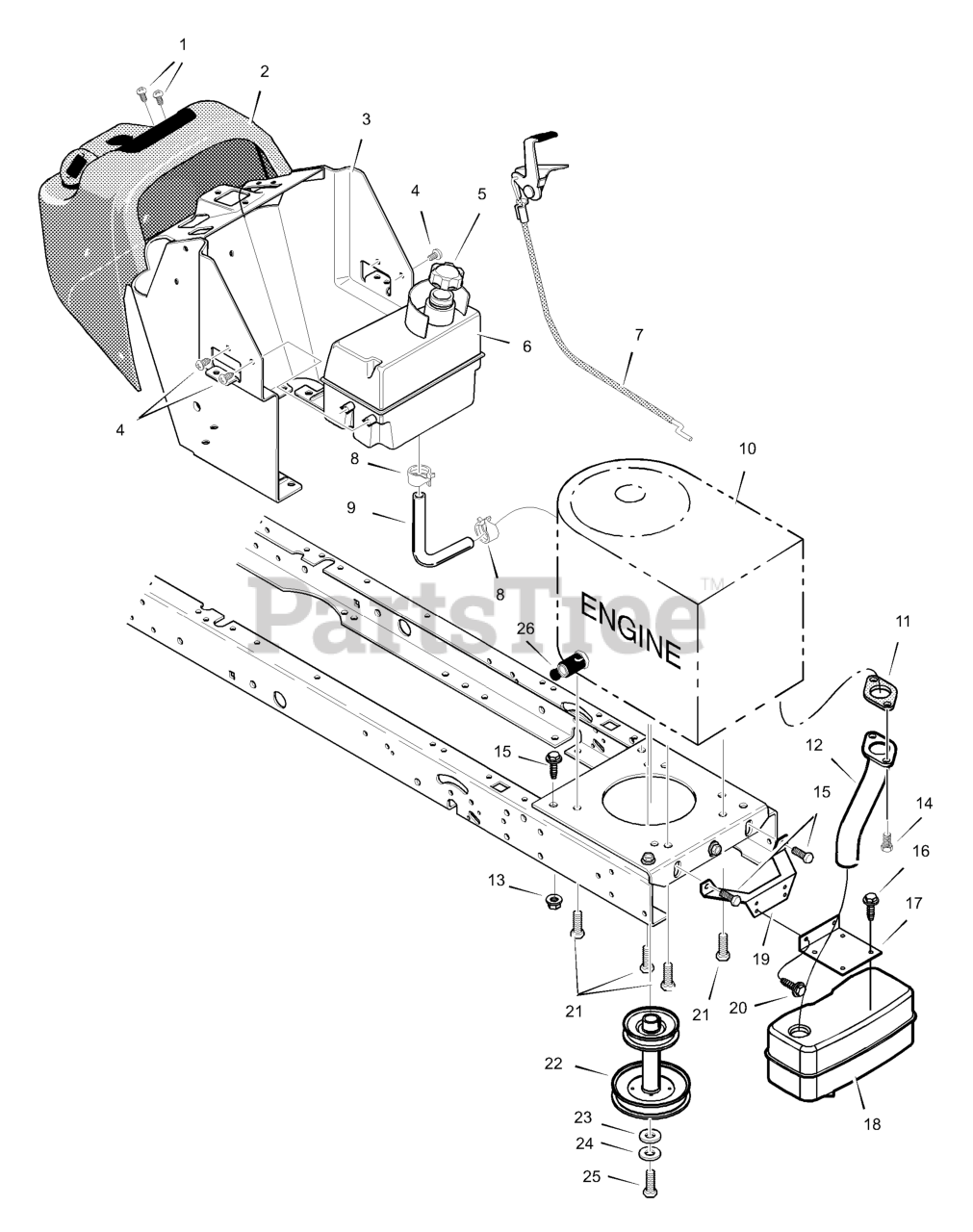

465606x692A - Stanley 46" Lawn Tractor (2001) Engine Parts Diagram

46" Lawn Tractor

Engine Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

2

Murray 1001113E700

Dash

$

$

Currently unavailable

3

Murray 095173E701

Console

$

$

Currently unavailable

4

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 092317MA

Cap, Fuel

Note: (Included with Ref. No. 6)

$10.99

$

In Stock, Qty 7

0

6

Murray 690289MA

Tank, Fuel
(Superseded to 7601093MA)

$170.99

$

In Stock, only 3 left!

0

7

Murray 1001224

Control, Throttle

$

$

Not available

8

Murray 095197MA

Clamp, Hose
(Superseded to 791850)

Note: (Included with Ref. No. 6)

$3.49

$

In Stock, Qty 20+

0

9

Murray 090671MA

Line, Fuel

Note: (Included with Ref. No. 6)

$17.99

$

Usually ships in 2-12 days

0

10

Engine *

$

$

Not available

11

Murray 1001263

Gasket, Exhaust

$

$

Not available

12

Murray 1001180

Tube, Exhaust

$17.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 06X103MA

Screw

$6.49

$

Usually ships in 2-12 days

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

17

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray 094654MA

Muffler

$

$

Not available

19

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray 26X213MA

Screw

$4.49

$

In Stock, only 1 left!

0

21

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

22

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

23

Murray 17X170MA

Washer

$

$

Not available

24

Murray 019X35MA

Washer, Star

$4.99

$

In Stock, Qty 11

0

25

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

26

Murray 325547MA

Drain, Oil

$

$

Not available
